Nabco Opus Control Wiring And Programming Installation Manual

23 of 32
www.NabcoEntrances.com OpusControlWiringandProgrammingInstallaonManual
Rev. 10-20-17 P/N C-00139

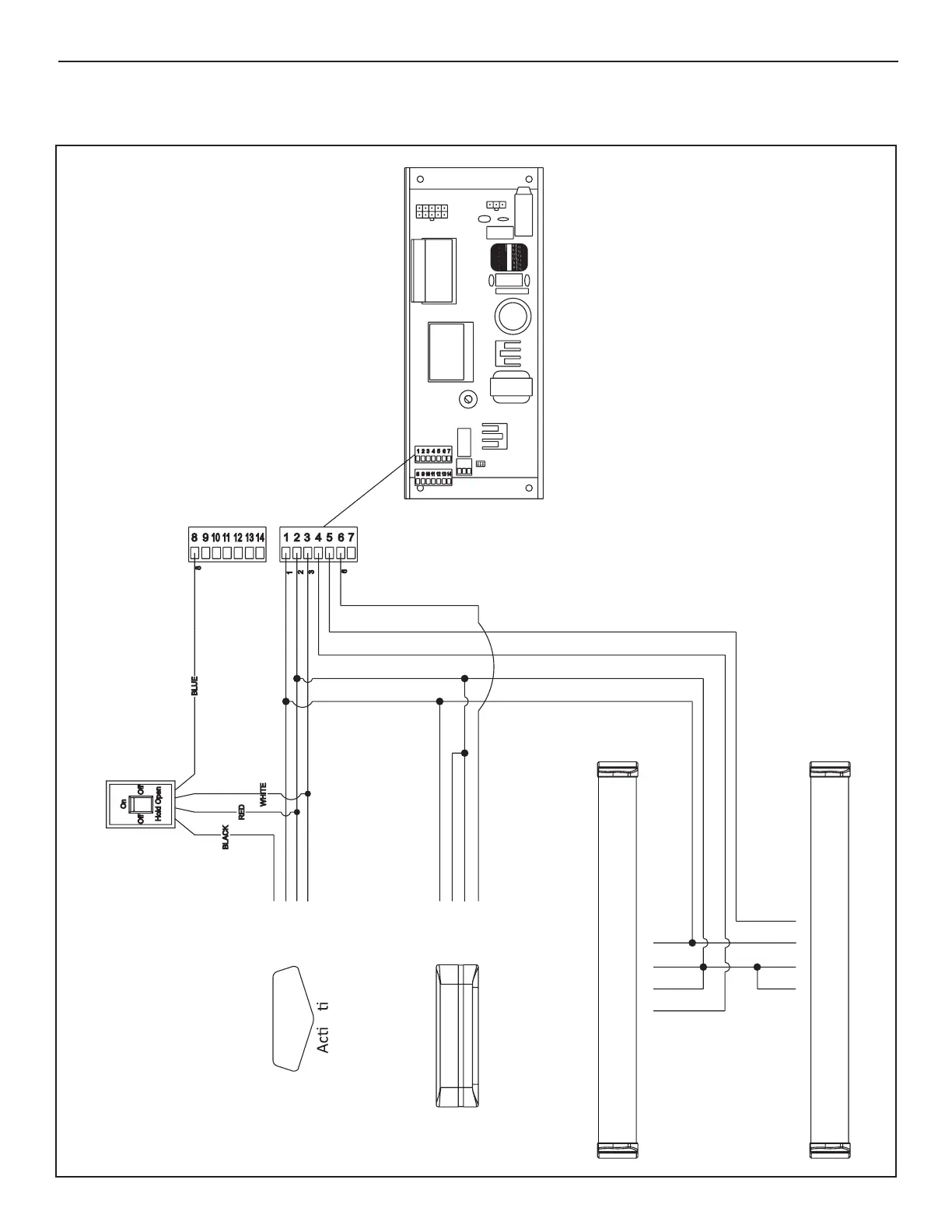

SECTION 11.6: Standard Wiring for Single Full Automac
DN 1519
!!! WARNING !!!
TOTAL POWER CONSUMPTI ON OR ALL SENSORS MUST NOT
EXCEED 750 mA
ON/OFF/Hold-Open Switch
P/N A-00805
COM
N.O.
PWR+
PWR-
COM
N.O.
PWR+
PWR-
COM
N.O.
PWR+
PWR-
COM
N.O.
PWR+
PWR-
va on
Sensor
Overhead
Swing Side Sensor
(if used)
Door Mounted
Approach Side Sensor
Door Mounted
Swing Side Sensor
NOTE: When using a door mounted approach side sensor, "Input
62" (Terminal 4) must be set to "LE Approach Sensor"
