Nabco Opus Control Wiring And Programming Installation Manual

32 of 32
Opus Control Wiring and Programming Installaon Manual www.NabcoEntrances.com
P/N C-00139 Rev 10-20-17
Boom Load Unit
Item Part Finish/Sizes/Notes Descripon
1 M-01072 HARNESS,POWER,MAGNUM BOARD
2 T-00251 Sim Pair Only WIRE,20 AWG,BLUE
3 M-01162 HARNESS,MICROSWITCH,MAGNUM
4 A-01000 GT300/400/500/600 only “HARNESS,MOTOR,OPUS CONTROL
5 A-01002 Retrot Kits Only “HARNESS,ADAPTER,NON-ENCOD,OPUS CONTROL
6 A-01001 Not used on GT710/8710 “HARNESS,HANDING,NGT-10”
7 M-01680 “HARNESS,OPUS CONTROL,SIM PAIR”
8 A-01098 CONTROLLER,W/ BRAKE,BOTTOM LOAD,OPUS
9 M-01735 PLATE BOTTOM LOAD,OPUS
10 A-01143 CONTROLLER,W/O BRAKE,BOTTOM LOAD,OPUS
11 A-01003 Not used on GT710/8710 “BRAKE MODULE,OPUS”
12 A-00453 Used on Brake Module FUSE,3AMP,W/HEAT SHRINK
13 V-00552 Used on Opus Control FUSE;5A;GMA;5X20mm
14 T-00420 “PHMS,8-32x0.375L,PHIL,SWAGEFORM,ZINC”
15 T-00232 SHCS,10-24x0.875L.,ZINC
16 M-01546 “CONTROLLER,OPUS”
17 V-00098 SADDLE, WIRE
18 V-00753 TERMINAL BLOCK (1-7)
19 V-00891 TERMINAL BLOCK (8-14)
DN 1320

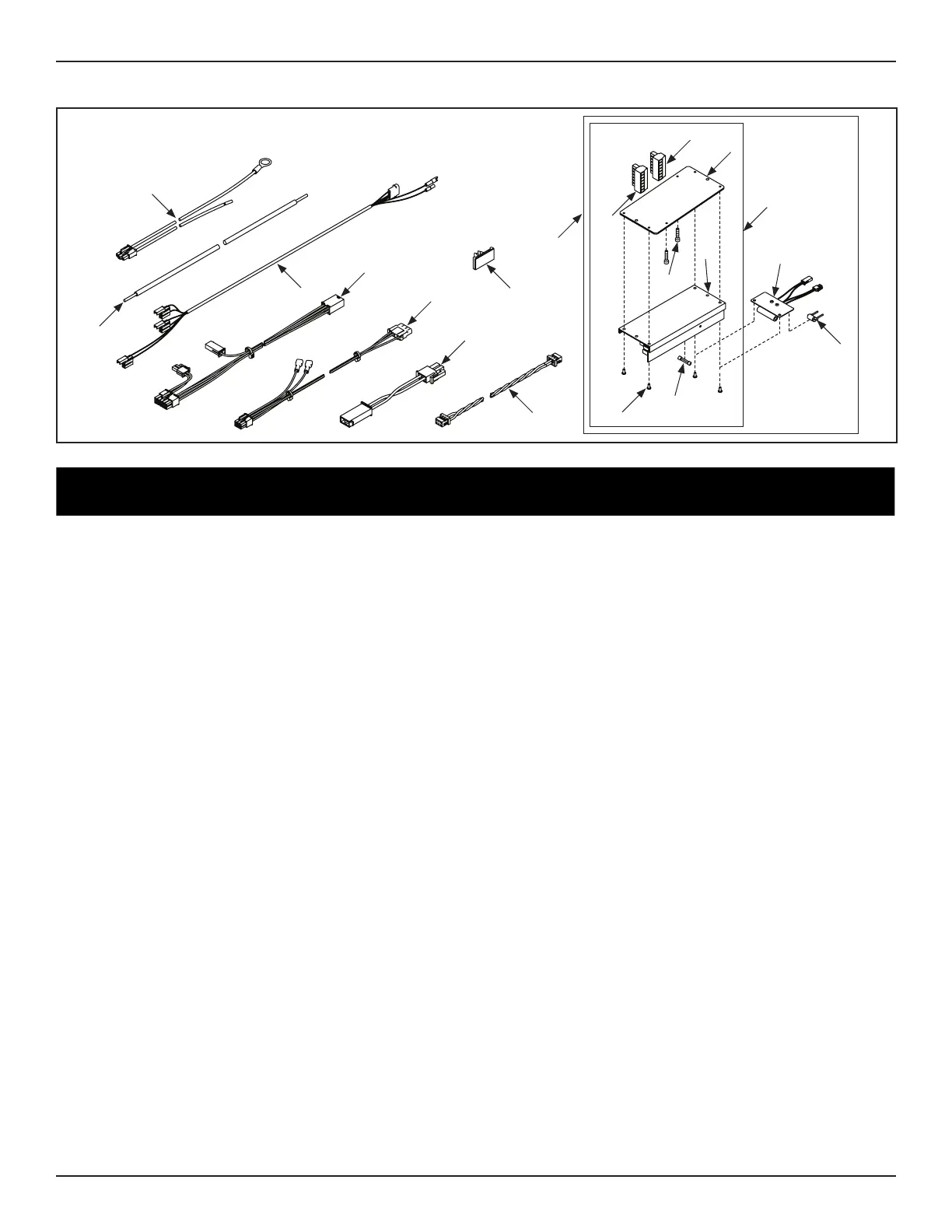

SERVICE PARTS: OPUS BOTTOM LOAD UNITS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
