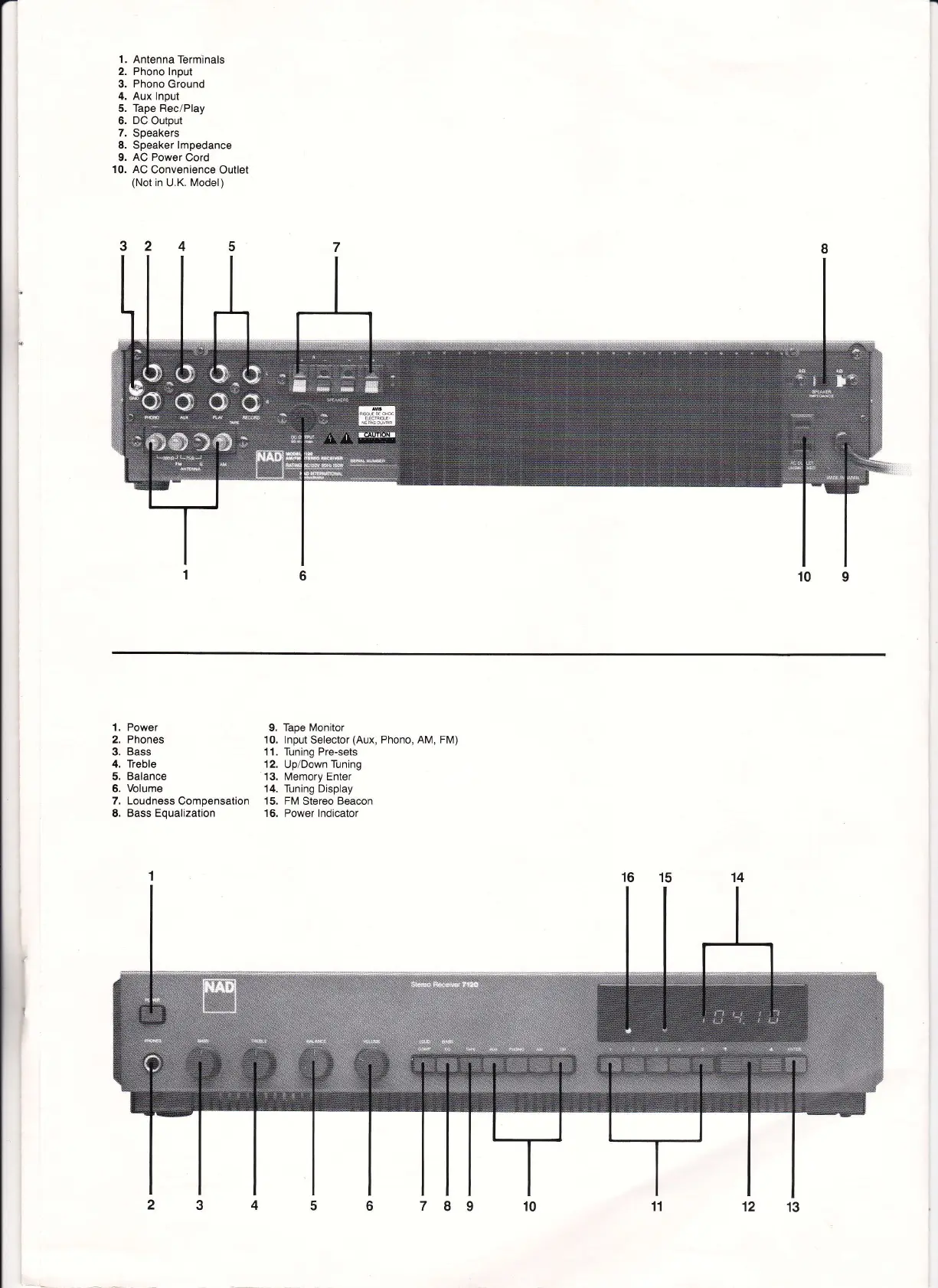

NAD 7120 - Rear Panel Connections Overview

1.
Antenna Terminals
2. Phono lnput
3. Phono Ground
4. Aux Input
5.
Tape Rec/Play
6.
DC
Output
7. Speakers
8. Speaker lmpedance
9.
AC Power
Cord
10. AC
Convenience
Outlet
(Not
in
U.K.
Model)
1. Power
2. Phones
3. Bass
4. Treble
5.
Balance
6. Volume
7. Loudness
Compensation
8. Bass Equalization
1
9. Tape Monitor
10. lnput Selector
(Aux,
Phono, AM, FM)
11. Tuning Pre-sets
12. Up/Down Tuning
13. Memory Enter
14. Tuning Display
15.
FM Stereo Beacon
16. Power lndicator
15
16
