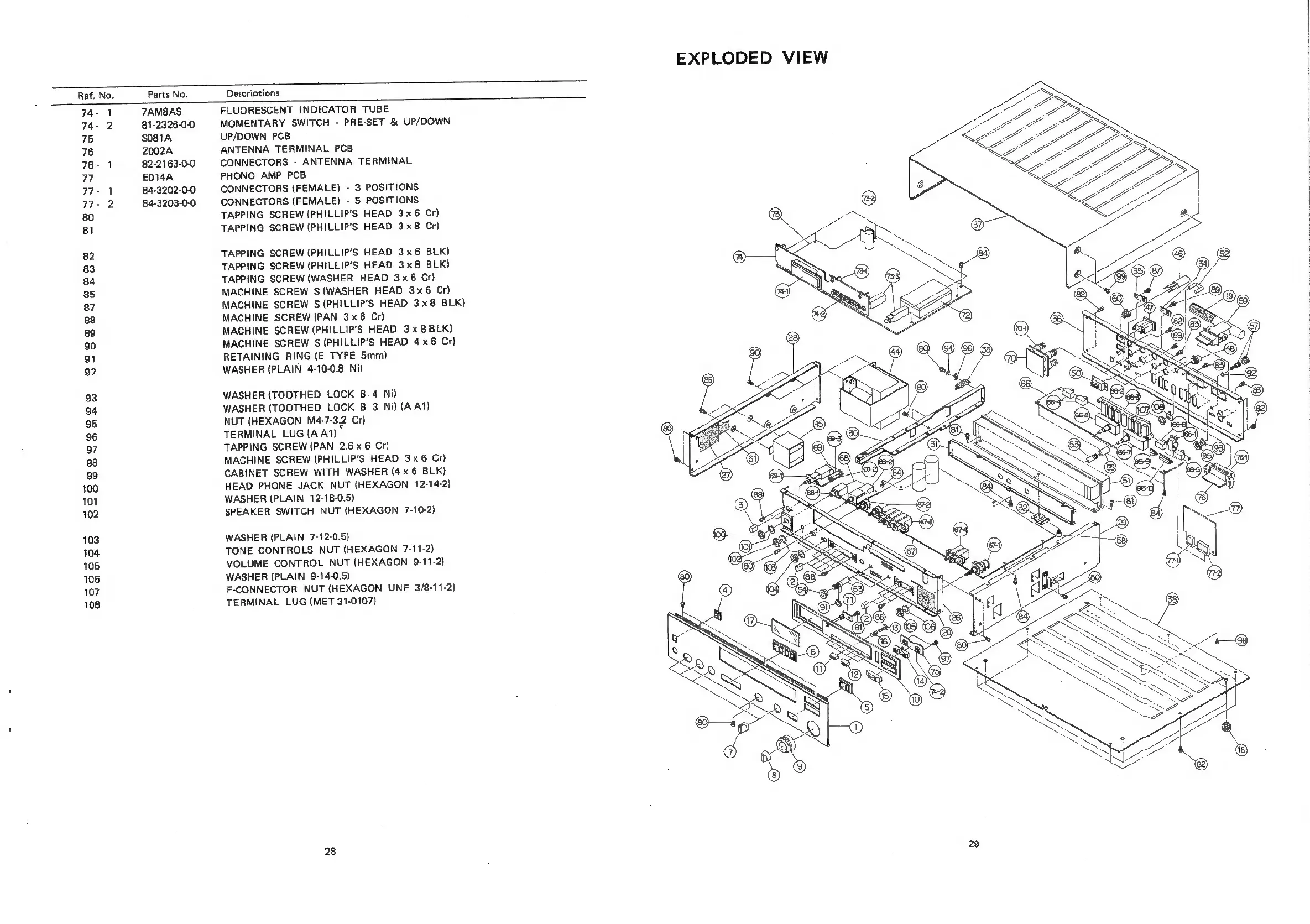

NAD 7155 - Exploded View

Ref.
No.
Parts
No.
Descriptions
74-1
7AMB8AS
FLUORESCENT
INDICATOR
TUBE
74-2
81-2326-0-0
MOMENTARY
SWITCH
-
PRE-SET
&
UP/DOWN
75
S081A
UP/DOWN
PCB
76
Z002A
ANTENNA
TERMINAL
PCB
76-1
82-2163-0-0
CONNECTORS
-
ANTENNA
TERMINAL
77
E014A
PHONO
AMP
PCB
77-1
84-3202-0-0
CONNECTORS
(FEMALE)
-
3
POSITIONS
77-2
84-3203-0-0
CONNECTORS
(FEMALE)
-
5
POSITIONS
80
TAPPING
SCREW
(PHILLIP’S
HEAD
3x6
Cr)
81
TAPPING
SCREW
(PHILLIP’S
HEAD
3x8
Cr)
82
TAPPING
SCREW
(PHILLIP’S
HEAD
3x6
BLK)
83
TAPPING
SCREW
(PHILLIP’S
HEAD
3x8
BLK)
84
TAPPING
SCREW
(WASHER
HEAD
3x6
Cr)
85
MACHINE
SCREW
S
(WASHER
HEAD
3x6
Cr)
87
MACHINE
SCREW
S
(PHILLIP’S
HEAD
3x8
BLK)
88
MACHINE
SCREW
(PAN
3x6
Cr)
89
MACHINE
SCREW
(PHILLIP’S
HEAD
3x
8
BLK)
90
MACHINE
SCREW
S
(PHILLIP’S
HEAD
4x6
Cr)
91
RETAINING
RING
(E
TYPE
5mm)
92
WASHER
(PLAIN
4-10-0.8
Ni)
93
WASHER
(TOOTHED
LOCK
B
4
Ni)
94
WASHER
(TOOTHED
LOCK
B
3
Ni)
(AA1)
95
NUT
(HEXAGON
M4-7-3,2
Cr)
96
TERMINAL
LUG
(A
A1)
97
TAPPING
SCREW
(PAN
2.6
x6
Cr)
98
MACHINE
SCREW
(PHILLIP’S
HEAD
3x6
Cr)
99
CABINET
SCREW
WITH
WASHER
(4
x6
BLK)
100
HEAD
PHONE
JACK
NUT
(HEXAGON
12-14-2)
101
WASHER
(PLAIN
12-18-0.5)
102
SPEAKER
SWITCH
NUT
(HEXAGON
7-10-2)
103
WASHER
(PLAIN
7-12-0.5)
104
TONE
CONTROLS
NUT
(HEXAGON
7-11-2)
105
VOLUME
CONTROL
NUT
(HEXAGON
9-11-2)
106
WASHER
(PLAIN
9-14-0.5)
107
F-CONNECTOR
NUT
(HEXAGON
UNF
3/8-11-2)
108
TERMINAL
LUG
(MET
31-0107)
28
EXPLODED VIEW
29
