NAD C 315BEE - Page 18

RT33

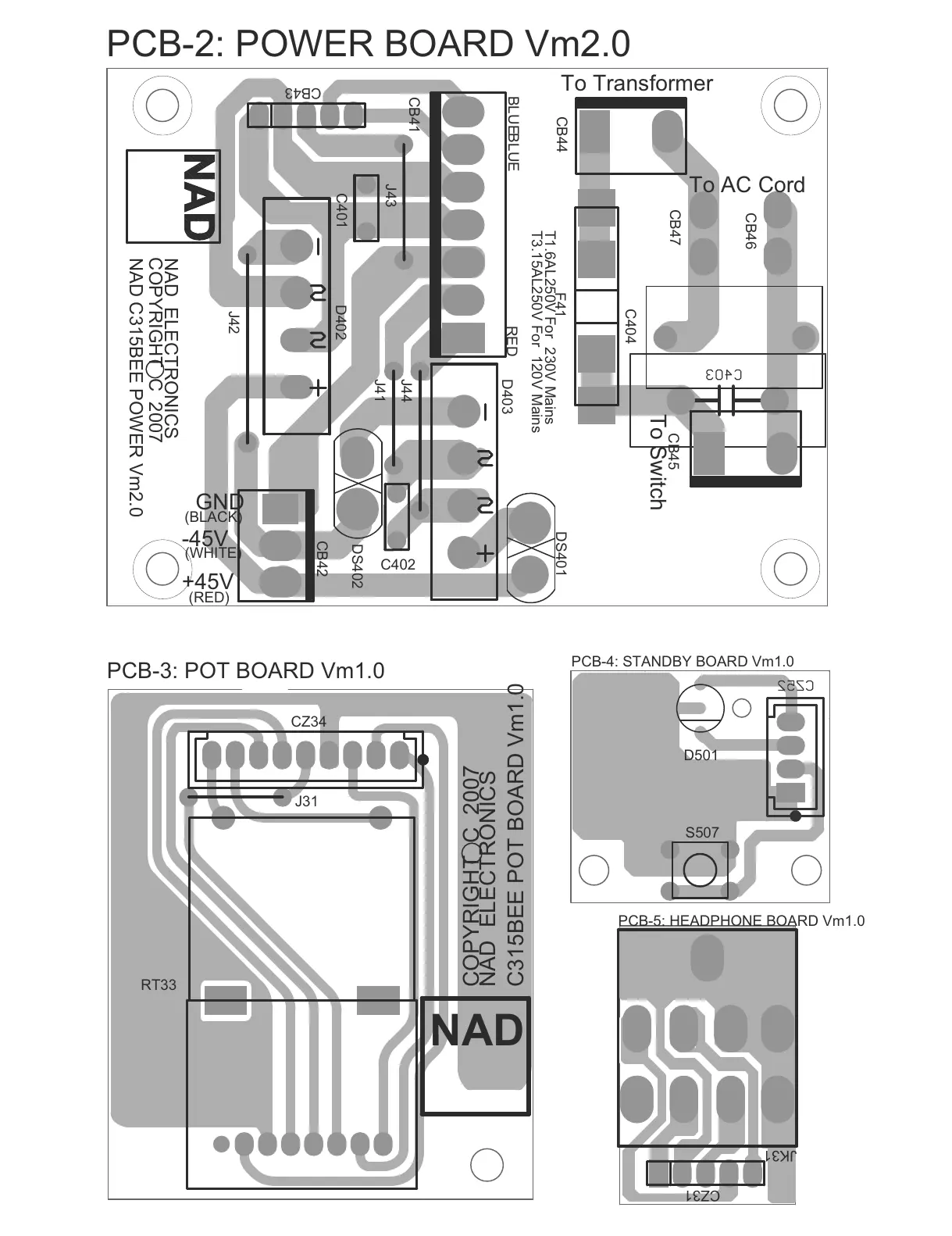

NAD C315BEE POWER Vm2.0
PCB-3: POT BOARD Vm1.0
COPYRIGHT C 2007
PCB-2: POWER BOARD Vm2.0
To Switch
T3.15AL250V For 120V Mains
T1.6AL250V For 230V Mains
JK31
CZ31
COPYRIGHT C 2007 C315BEE POT BOARD Vm1.0
NAD
J31
NAD ELECTRONICS
PCB-5: HEADPHONE BOARD Vm1.0
S507
PCB-4: STANDBY BOARD Vm1.0
DS401
CB45
D501
(RED)
CZ34
+45V
(WHITE)
-45V
(BLACK)
GND
CB42
DS402
C402
NAD ELECTRONICS
J42
J41 J44
D403
RED
D402
C401
J43
BLUE
CB41
CB43
BLUE
F41
C404
CB44
To Transformer
CB47
CB46
To AC Cord
