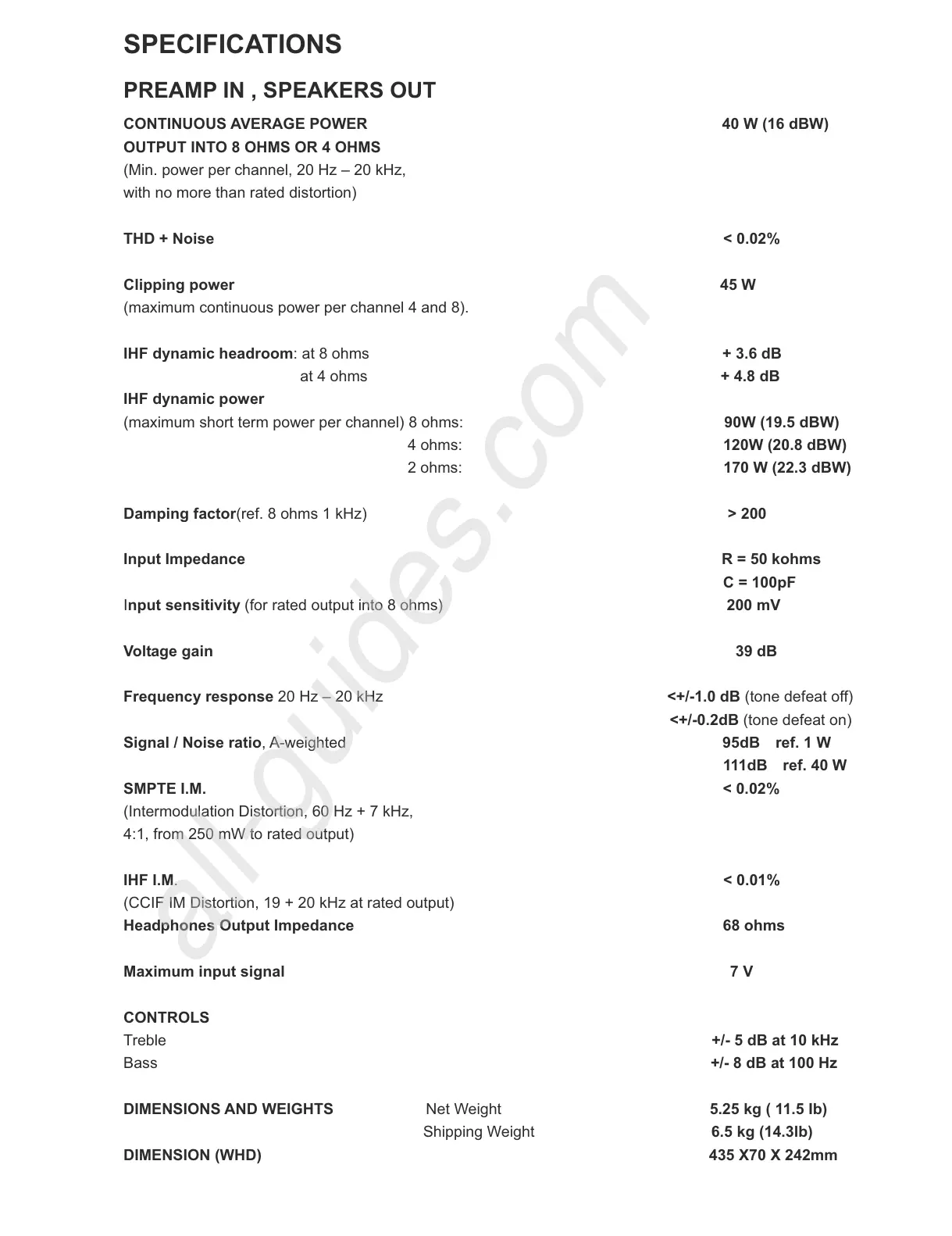

SPECIFICATIONS
PREAMP IN , SPEAKERS OUT
CONTINUOUS AVERAGE POWER 40 W (16 dBW)
OUTPUT INTO 8 OHMS OR 4 OHMS
(Min. power per channel, 20 Hz – 20 kHz,
with no more than rated distortion)
THD + Noise < 0.02%
Clipping power 45 W
(maximum continuous power per channel 4 and 8).
IHF dynamic headroom: at 8 ohms + 3.6 dB
at 4 ohms + 4.8 dB
IHF dynamic power
(maximum short term power per channel) 8 ohms: 90W (19.5 dBW)
4 ohms: 120W (20.8 dBW)
2 ohms: 170 W (22.3 dBW)
Damping factor(ref. 8 ohms 1 kHz) > 200
Input Impedance R = 50 kohms
C = 100pF
Input sensitivity (for rated output into 8 ohms) 200 mV
Voltage gain 39 dB
Frequency response 20 Hz – 20 kHz <+/-1.0 dB (tone defeat off)
<+/-0.2dB (tone defeat on)
Signal / Noise ratio, A-weighted 95dB ref. 1 W
111dB ref. 40 W
SMPTE I.M. < 0.02%
(Intermodulation Distortion, 60 Hz + 7 kHz,
4:1, from 250 mW to rated output)
IHF I.M. < 0.01%
(CCIF IM Distortion, 19 + 20 kHz at rated output)
Headphones Output Impedance 68 ohms
Maximum input signal 7 V
CONTROLS
Treble +/- 5 dB at 10 kHz
Bass +/- 8 dB at 100 Hz
DIMENSIONS AND WEIGHTS Net Weight 5.25 kg ( 11.5 Ib)
Shipping Weight 6.5 kg (14.3lb)
DIMENSION (WHD) 435 X70 X 242mm
