NAD C 315BEE - Electrical Parts List; Main Board Components: ICs, Diodes, Transistors, Capacitors

CIRCUIT NO. PART NO. DESCRIPTION
ICS
IC11, IC21 03-00082-00 TL082CP/CN/D
IC31 03-01117-01
AMS1117-5.0/
LM1117MPX-5.0
IC502 03-02402-00 24C01A/24C02(A)/24C04(A)
U301 03-09164-00 TC9164CNG
IC501 03-08951-13
AT89S51-24PI/
W78E052C40DL
Programmed
IC501 03-08951-03
AT89S51-24PI/
W78E052C40DL Unprogrammed
CB35 02-01237-00 upc1237 Protection Module
DIODES
D101, D102, D103, D104,
D105, D108, D109, D112,
D114, D201, D202, D203,
D204, D205, D208, D209,
D212, D214, D302, D305,
D310, D311, D509
33-44148-00 1N4148
D113, D213 33-14709-00 4.7V, 0.5W
D301 33-11600-00 16V, 0.5W
D303
33-24001-00
IN4001
D306, D307 33-30142-00 DB104
TRANSISTORS
Q110, Q119, Q210, Q219,
Q301, Q302
31-01015-00 2SA1015 GR
Q303, Q304, Q306, Q315,
Q501, Q502
31-01815-00 2SC1815 GR
Q102, Q107, Q109, Q121,
Q202, Q207, Q209, Q221,
Q316
31-00970-00 2SA970 GR
Q305 31-00970-10 2SA970 BL
Q101, Q106, Q108, Q118
Q201, Q206, Q208, Q218
31-02240-00 2SC2240 GR
Q105, Q120, Q205, Q220 31-02878-00 2SC2878A
Q103, Q203 31-00667-00 2SD667A
Q104, Q204 31-00647-00 2SB647A
Q113, Q114, Q122, Q213,
Q214, Q222, Q308
31-02690-00 KSC2690AYSTU
Q116, Q216, Q307 31-01220-00 KSA1220AYSTU
Q111, Q211 31-01360-00 2SA1360-0(Q)
CAPACITORS
C144, C244 05-10012-00 10p, 100V, ±10%
C504, C505 05-27012-00 27p, 50V, ±10%
C337 05-39012-00 39p, 50V, ±10%
C112, C129, C146, C212,
C229, C246
05-47012-00 47p, 100V, ±10%
C147, C148, C247, C248 05-75012-00 75p, 100V, ±10%
C101, C102, C103, C104,
C105, C106, C107, C108,
C110, C201, C202, C203,
C204, C205, C206, C207,
C208, C210
05-10151-01 100p, 50V, ±10%
C304, C305 05-22151-01 220p, 50V, ±10%
C312, C313 05-33151-01 330p, 50V, ±10%
C121, C125, C221, C225 05-47112-00 470p, 100V, ±10%
C140, C240 24-22312-04 22n, 100V, ±10%

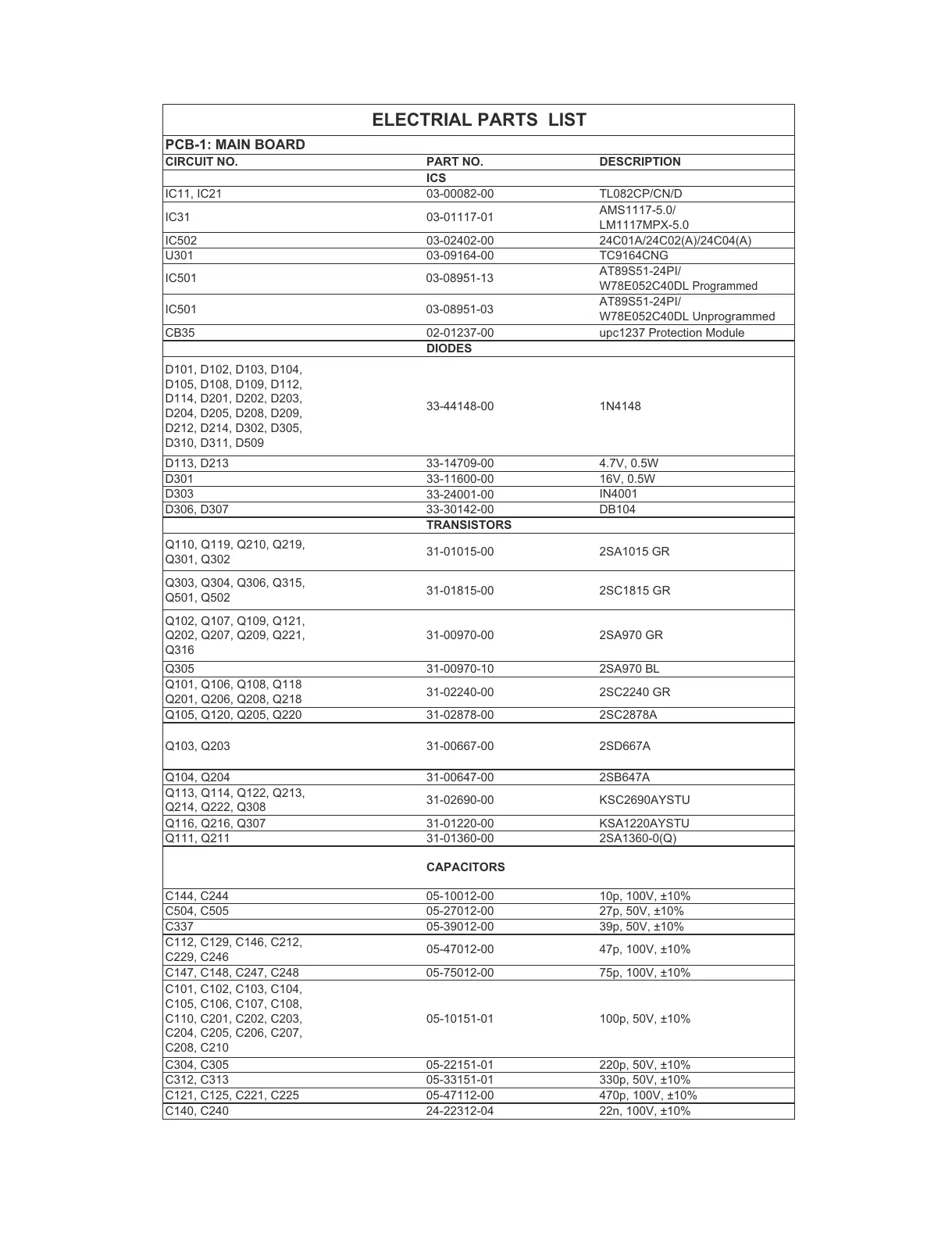

ELECTRIAL PARTS LIST
PCB-1: MAIN BOARD
