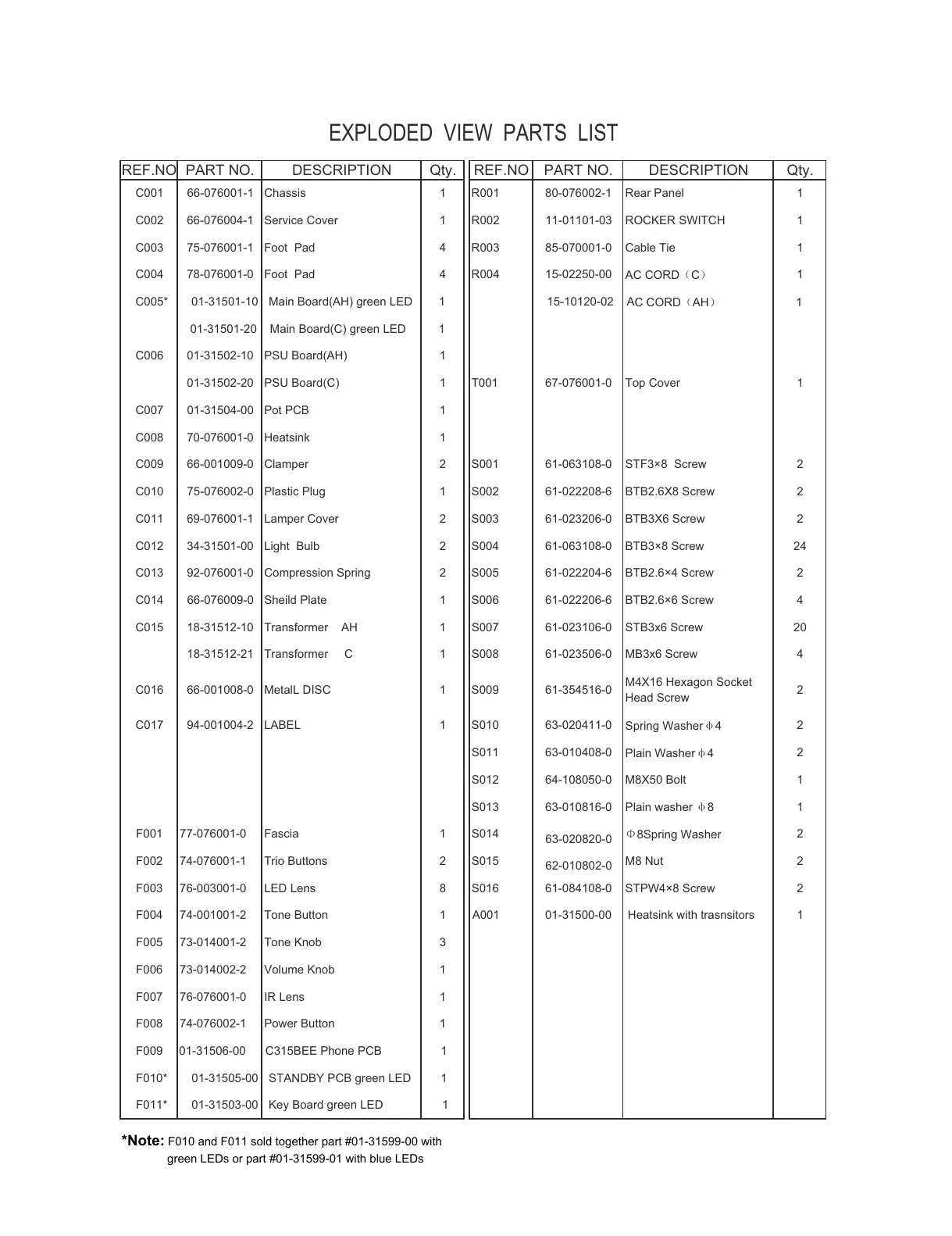

NAD C 315BEE - Exploded View Parts List

REF.NO
PART NO. DESCRIPTION Qty.
REF.NO
PART NO. DESCRIPTION Qty.
C001 66-076001-1 Chassis 1 R001 80-076002-1 Rear Panel 1
C002 66-076004-1 Service Cover 1 R002 11-01101-03 ROCKER SWITCH 1
C003 75-076001-1 Foot Pad 4 R003 85-070001-0 Cable Tie 1
C004 78-076001-0 Foot Pad 4 R004 15-02250-00
AC CORD˄C˅
1
C005* 01-31501-10 Main Board(AH) green LED 1 15-10120-02 A
C CORD˄AH˅ 1
01-31501-20 Main Board(C) green LED 1
C006 01-31502-10 PSU Board(AH) 1
01-31502-20 PSU Board(C) 1 T001 67-076001-0 Top Cover 1
C007 01-31504-00 Pot PCB 1
C008 70-076001-0 Heatsink 1
C009 66-001009-0 Clamper 2 S001 61-063108-0 STF3×8 Screw 2
C010 75-076002-0 Plastic Plug 1 S002 61-022208-6 BTB2.6X8 Screw 2
C011 69-076001-1 Lamper Cover 2 S003 61-023206-0 BTB3X6 Screw 2
C012 34-31501-00 Light Bulb 2 S004 61-063108-0 BTB3×8 Screw 24
C013 92-076001-0 Compression Spring 2 S005 61-022204-6 BTB2.6×4 Screw 2
C014 66-076009-0 Sheild Plate 1 S006 61-022206-6 BTB2.6×6 Screw 4
C015 18-31512-10 Transformer AH 1 S007 61-023106-0 STB3x6 Screw 20
18-31512-21 Transformer C 1 S008 61-023506-0 MB3x6 Screw 4
C016 66-001008-0 MetalL DISC 1 S009 61-354516-0
M4X16 Hexagon Socket
Head Screw
2
C017 94-001004-2 LABEL 1 S010 63-020411-0
Spring Washer¶4
2
S011 63-010408-0
Plain Washer¶4
2
S012 64-108050-0 M8X50 Bolt 1
S013 63-010816-0
Plain washer ¶8
1
F001 77-076001-0 Fascia 1 S014
63-020820-0
8Spring Washer
2
F002 74-076001-1 Trio Buttons 2 S015
62-010802-0
M8 Nut 2
F003 76-003001-0 LED Lens 8 S016 61-084108-0 STPW4×8 Screw 2
F004 74-001001-2 Tone Button 1
F005 73-014001-2 Tone Knob 3
F006 73-014002-2 Volume Knob 1
F007 76-076001-0 IR Lens 1
F008 74-076002-1 Power Button 1
F009 01-31506-00 C315BEE Phone PCB 1
F010* 01-31505-00 STANDBY PCB green LED 1
F011* 01-31503-00 Key Board green LED 1
EXPLODED VIEW PARTS LIST
A001 01-31500-00 Heatsink with trasnsitors 1
*Note: F010 and F011 sold together part #01-31599-00 with
green LEDs or part #01-31599-01 with blue LEDs
