- 13 -

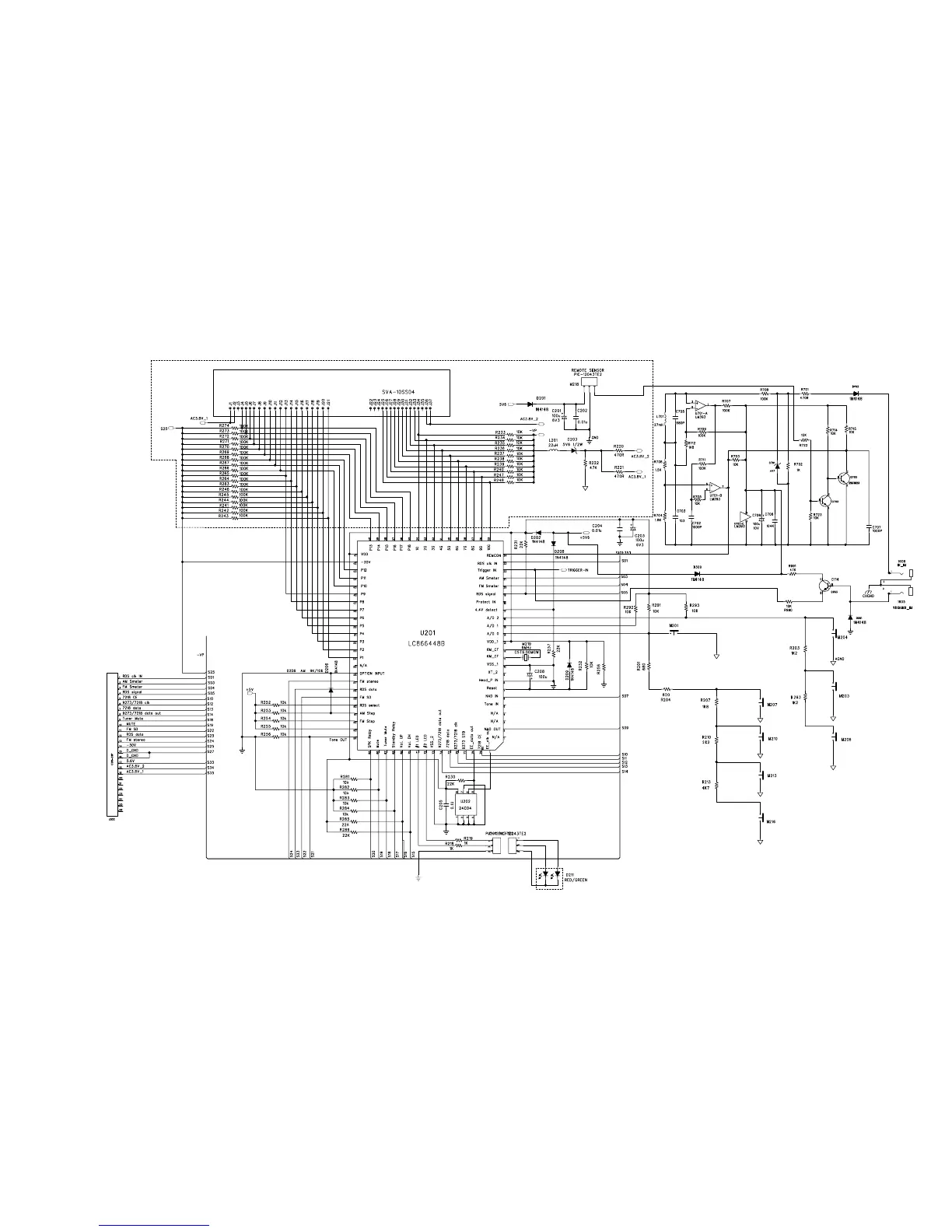

SCHEMATIC DIAGRAM
KEYBOARD / DISPLAY
NOTE: 1. RESISTORS ARE CARBON FILM 5% 1/8W
UNLESS OTHERWISE SPECIFIED.
2. CERAMIC CAPACITORS ARE 50V 10%
UNLESS OTHERWISE SPECIFIED.
MODE
FM/AM
FM MUTE
PRESET/TUNE <
PRESET/TUNE >
DISPLAY
STORE
BLEND
