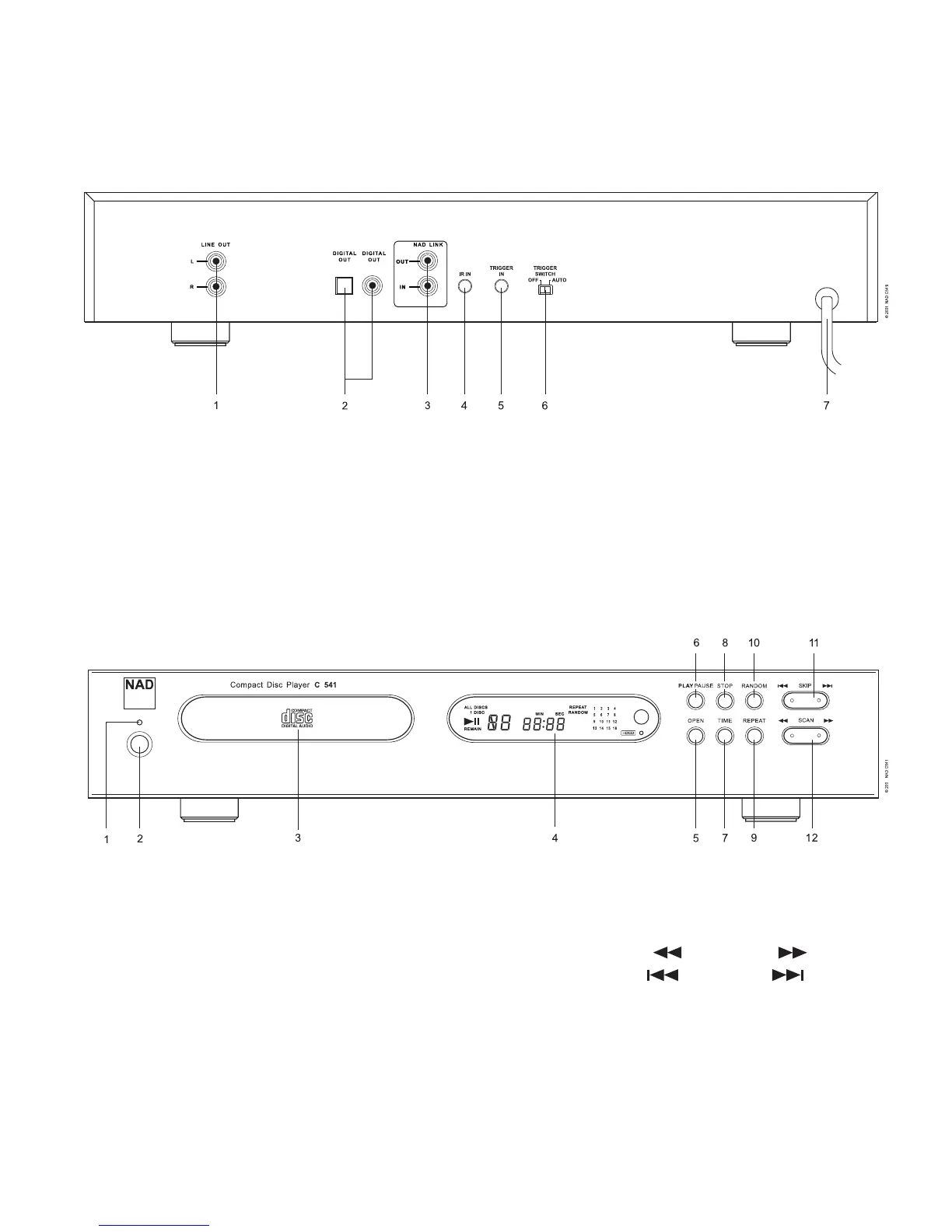

NAD C 541i - REAR PANEL; FRONT PANEL; REAR PANEL; FRONT PANEL

5
1. LINE OUT
2. DIGITAL OPTICAL & COAXIAL OUTPUT
3 NAD LINK IN / OUT
4. IR INPUT
5. TRIGGER IN
6. TRIGGER SWITCH
7. AC LINE CORD
1. POWER ON / OFF
2. DISC DRAWER
3. DISPLAY
4. OPEN
5. PLAY / PAUSE
6. TIME
7. STOP
8. REPEAT
9. RANDOM
10. SCAN Back ( ) / Forward ( )
11. SKIP Back ( ) / Forward ( )
12. STANDBY LED
i
i1
REAR PANEL / FRONT PANEL
REAR PANEL
FRONT PANEL
