8

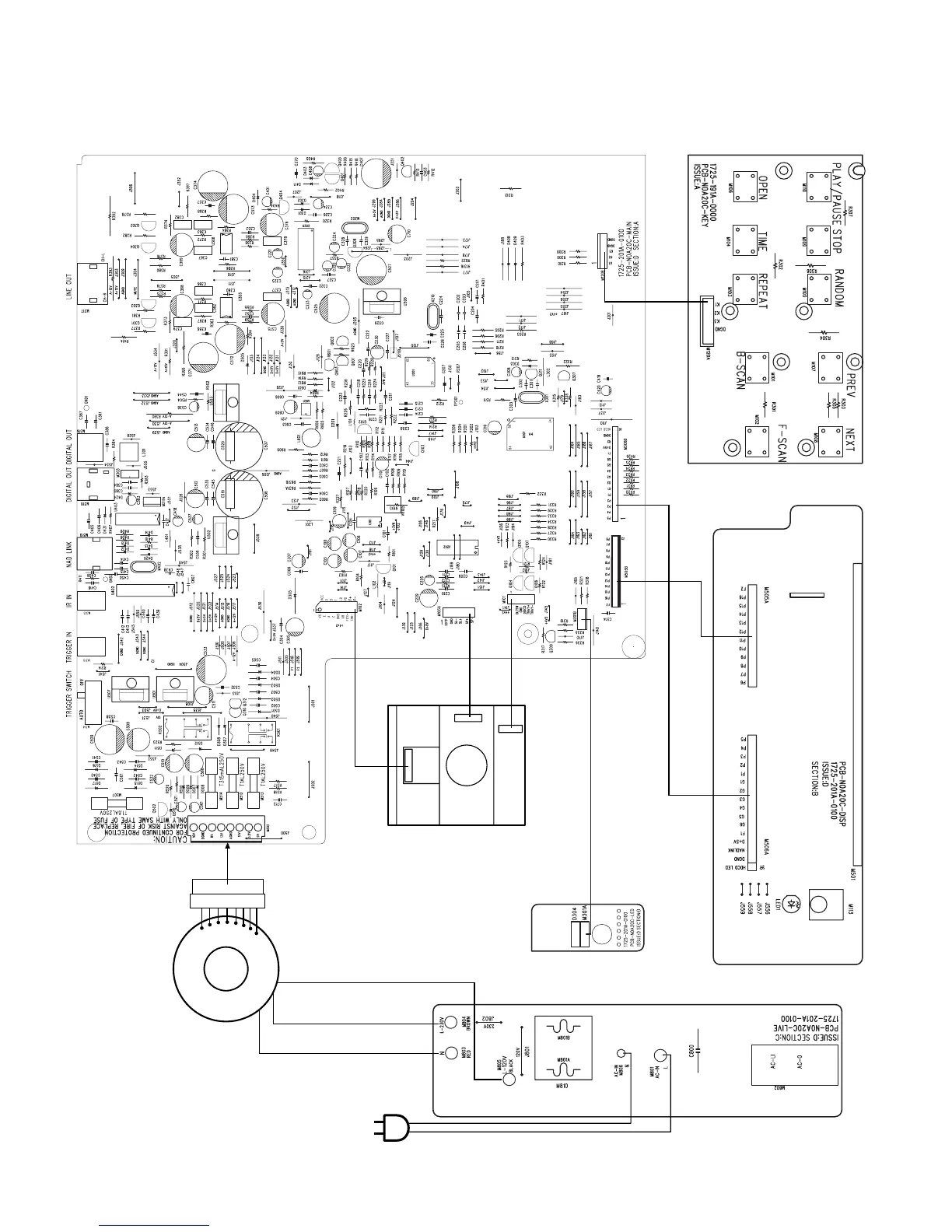

WIRING DIAGRAM
M102
(16PIN)
M301A
M505A
M506A
M120A
M105A
(6PIN)
CD MECHANISM
LIVE BOARD
DISPLAY BOARD
KEY BOARD
MAIN BOARD
LED BOARD
M101
(5PIN)
BROWN
BLACK
NEUTRAL
LIVE
RED
M502
TRANSFORMER
