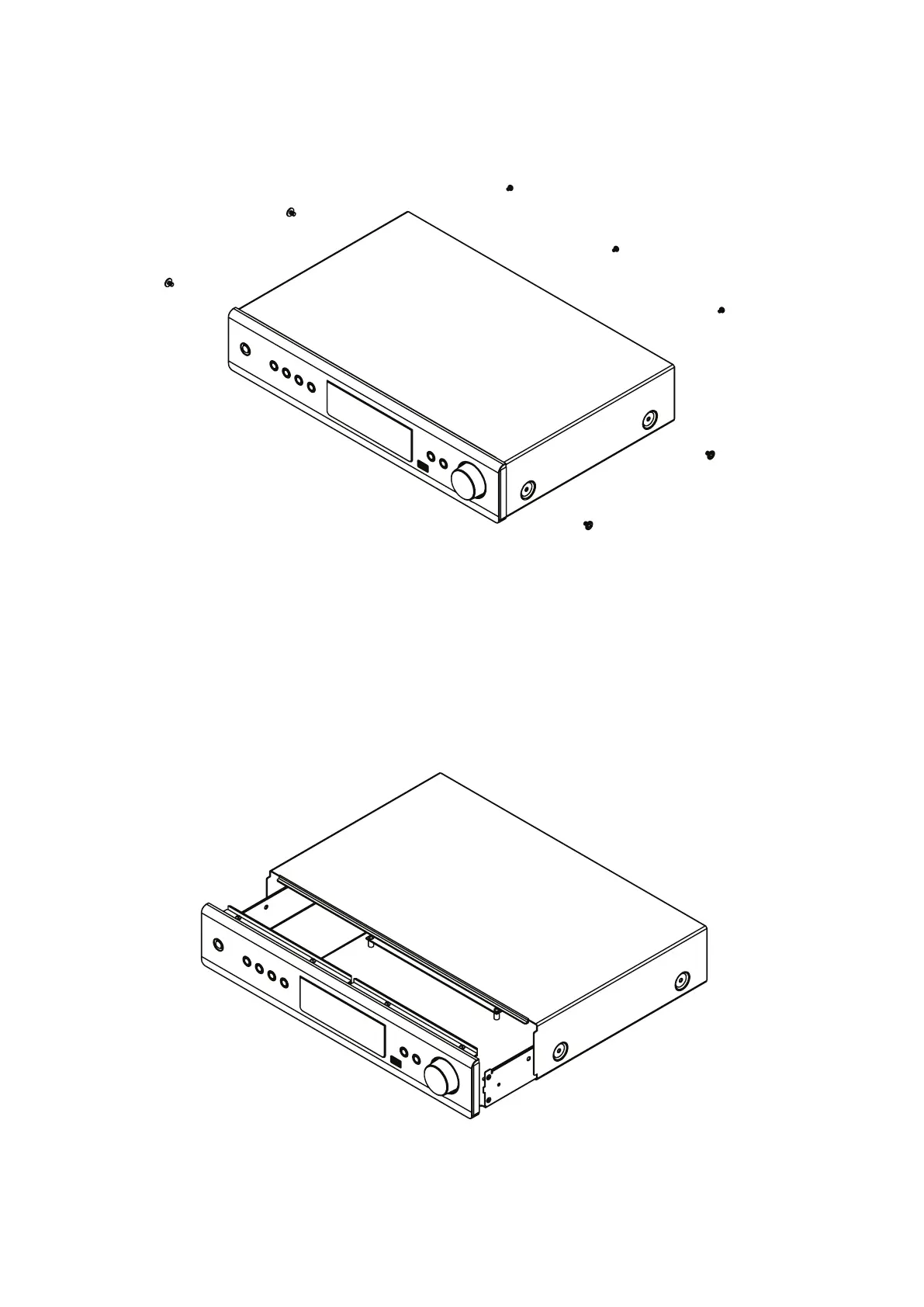

DISASSEMBLY INSTRUCTIONS
1. Remove machine screws M6.0 x 8.0 ( x 7pcs) from the side panels
Refer to Figure No.1
2. Pull both sides of the TOP COVER slightly outwards and tilt approx. 35°and then
remove in the direction as indicated.
Refer to Figure No.2
Figure No.1
Figure No.2
Page 6
