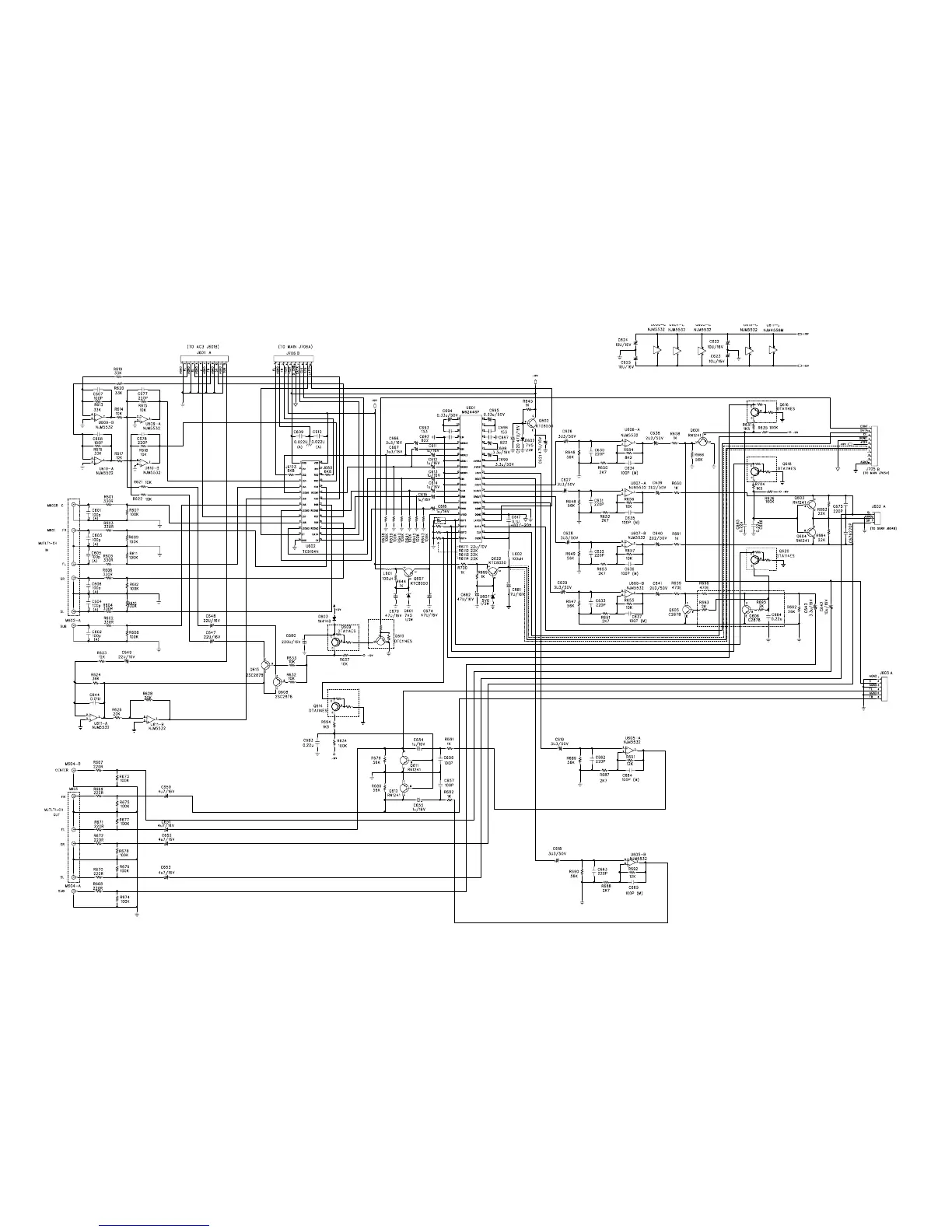

NAD T 761 - Multi-Channel Schematic Diagram

NAD T 761
70 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
3231
(TO FRONT AMP
J603B)
MULTI-CHANNEL
NOTE: 1. RESISTORS, ARE CARBON FILM 5% 1/8W UNLESS
OTHERWISE SPECIFIED.
2. CERAMIC CAPACITORS, ARE 50V 10%. UNLESS
OTHERWISE SPECIFIED.
