NAD T 761 - Disassembly Instructions; Figure No.1: Panel Screw Locations; Figure No.2: Top Cover Removal

6
DISASSEMBLY INSTRUCTIONS
1. Remove machine screws M 4.0 x 6.0 ( 1 to 6 ) from the side panels.
Remove tapping screw 3.0 x 8.5 ( 7 )from the back panel.
Refer to Figure No.1.

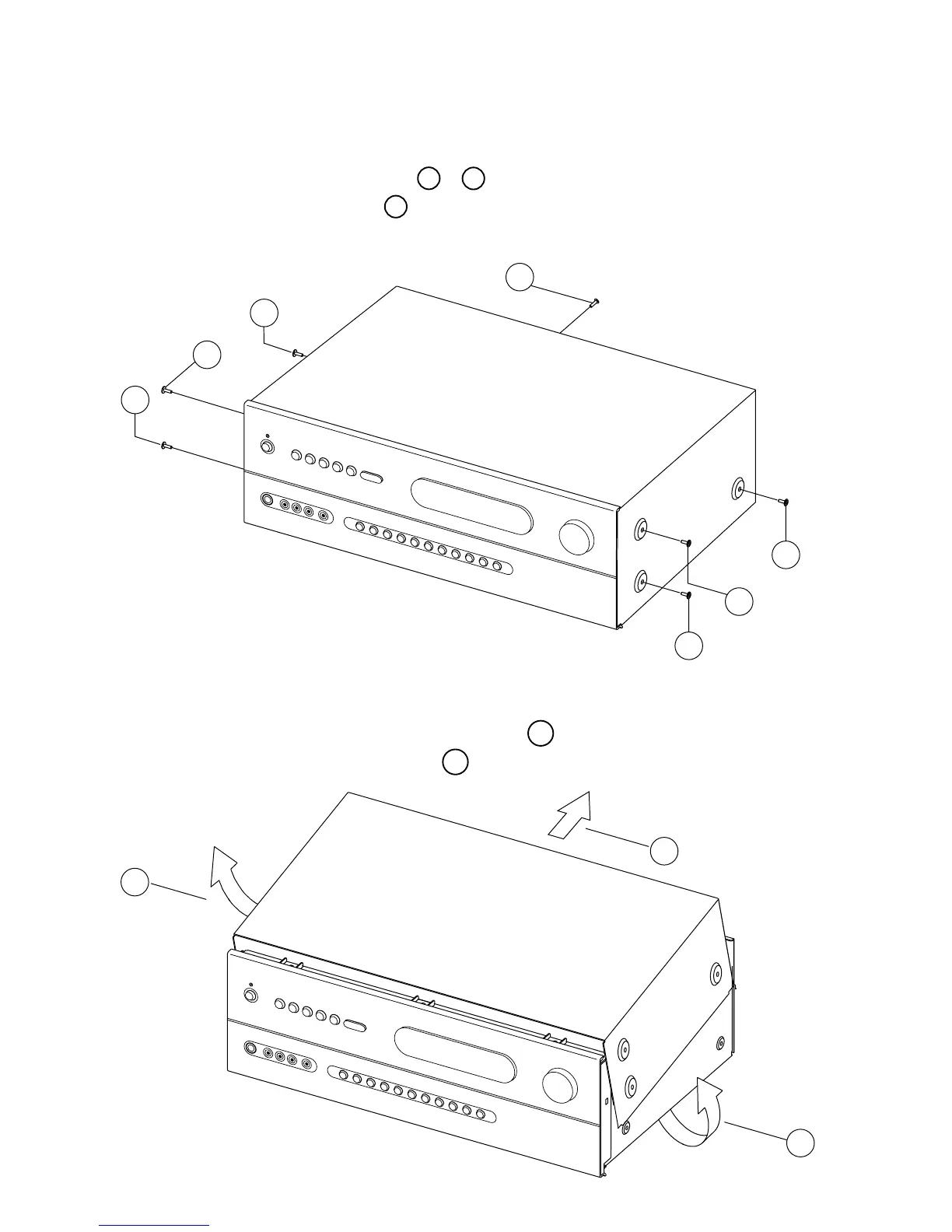

Figure No.1
2. Pull both sides of the TOP COVER slightly outwards 8 and tilt approx. 35˚ and then remove
in the direction as indicated by the arrow 9 . Refer to Figure No.2.
Figure No.2.
