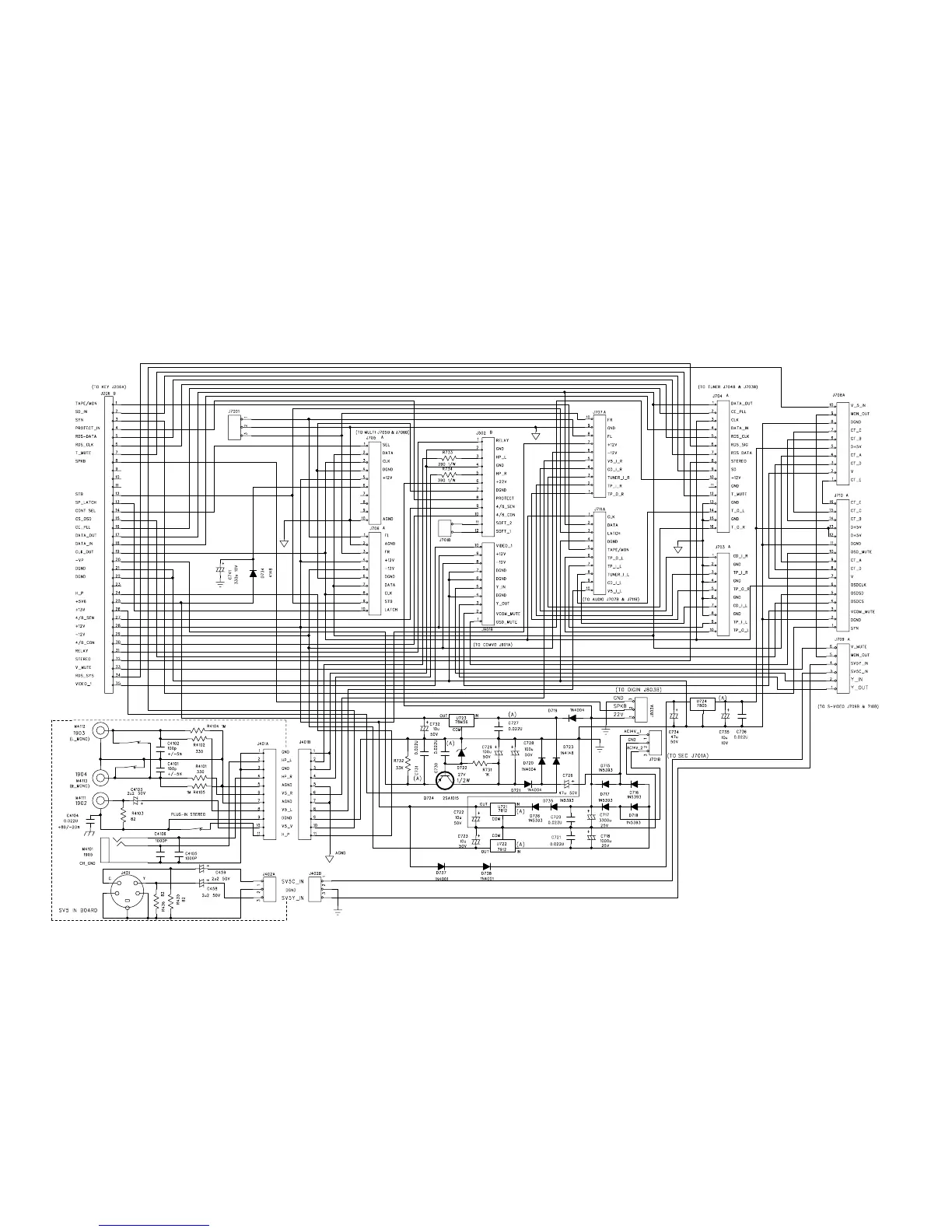

NAD T 761 - Main Board & Video 5 Schematic

4039
MAIN BOARD / VIDEO 5
(TO AC3 J604B)
(TO VIDEO J708B)
(TO Front Amp J502A)
(TO Front Amp J701A)
NOTE: 1. RESISTORS, ARE CARBON FILM 5% 1/8W UNLESS OTHERWISE SPECIFIED.
MF-METAL FILM
2. CERAMIC CAPACITORS, ARE 50V 10%. UNLESS OTHERWISE SPECIFIED.
