NAIM NAP 500 - NAP 500 Connections; NAP 500 Connected to NAP 500 PS

E4
NAP 500

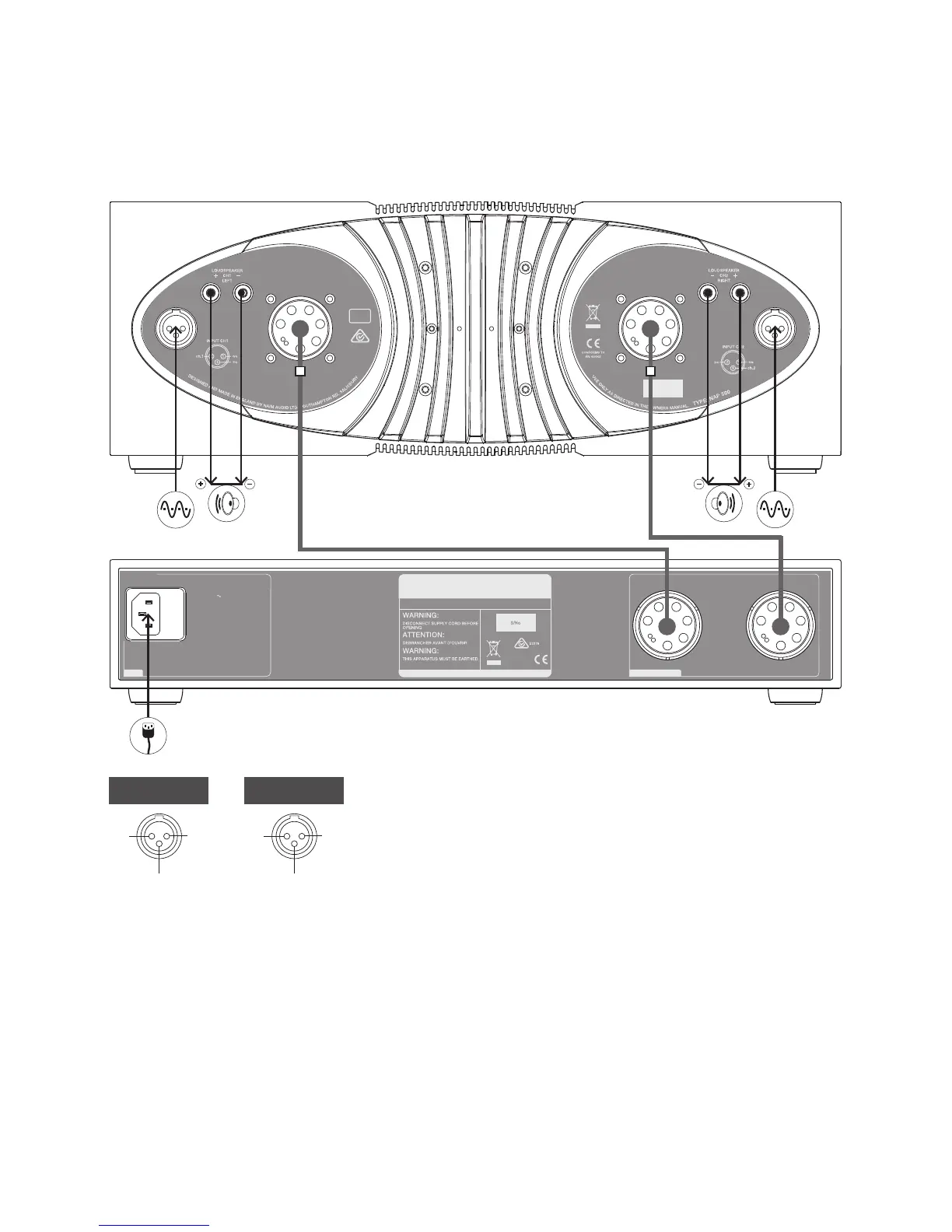

5. NAP 500 Connections
5.1 NAP 500 Connected to NAP 500PS
FUSE RATING: ANTISURGE
100V TO 120V: T6.3AL.
200V TO 240V: T3.15AL/250V.
AC ONLY
FREQUENCY: 50/60Hz
INPUT POWER: 480VA
PowerPower
Use only
NAP 500
Power supply outputsPower supply o tputs
Use only NAP 500PS
Socket 1
WARNING:
DO NOT REPLACE
SUPPLIED
LOUDSPEAKER
PLUGS WITH INDIVIDUAL
4mm PLUGS
E2378
DR
S/No.
Use only NAP 500PS
Socket 2
WARNING:
DO NOT REPLACE
SUPPLIED
LOUDSPEAKER
PLUGS WITH INDIVIDUAL
4mm PLUGS
DESIGNED AND MADE IN ENGLAND BY NAIM AUDIO LTD.
SOUTHAMPTON ROAD, SALISBURY
NAP 500PS
PLEASE READ THE MANUAL BEFORE USE
CONFORMS
TO EN 60065
S/No.
Input Ch1 Input Ch2
ch1
-ve
nc
nc ch2
-ve
NAP 500PS
Burndy
NAP 500PS
Burndy
Ch 2
Right
Ch 1
Left
