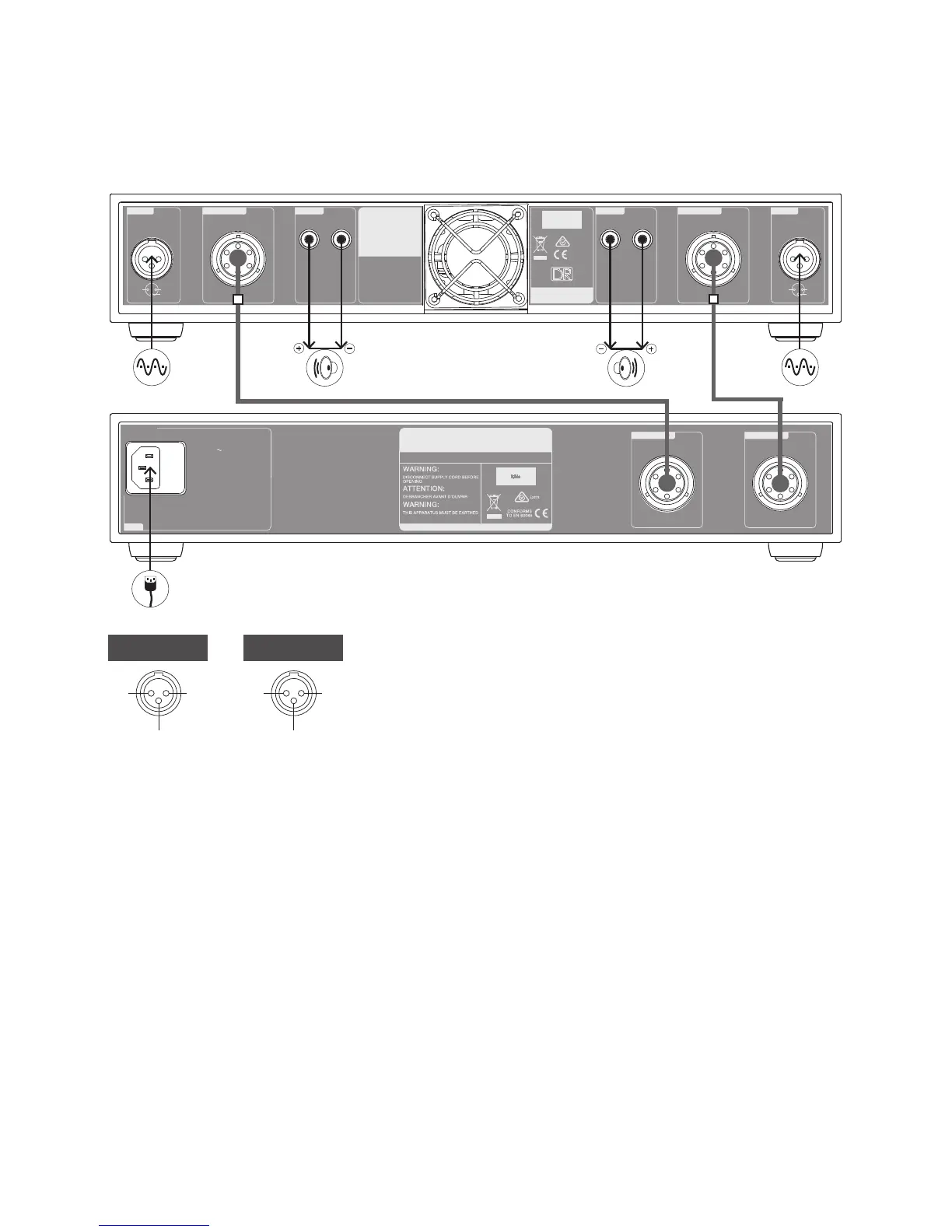

7. NAP 300 Connections
7.1 NAP 300 Connected to NAP 300PS
Input Ch1 Input Ch2
ch1
-ve
nc
nc ch2
-ve
NAP 300PS
Burndy
NAP 300PS
Burndy
Ch 2
Right
Ch 1
Left
