NAIM SUPERNAIT 3 - NAIT 5 si; Connections and I;O; Operation and Controls

E11
NAIT XS 3
10. System Upgrade Connections

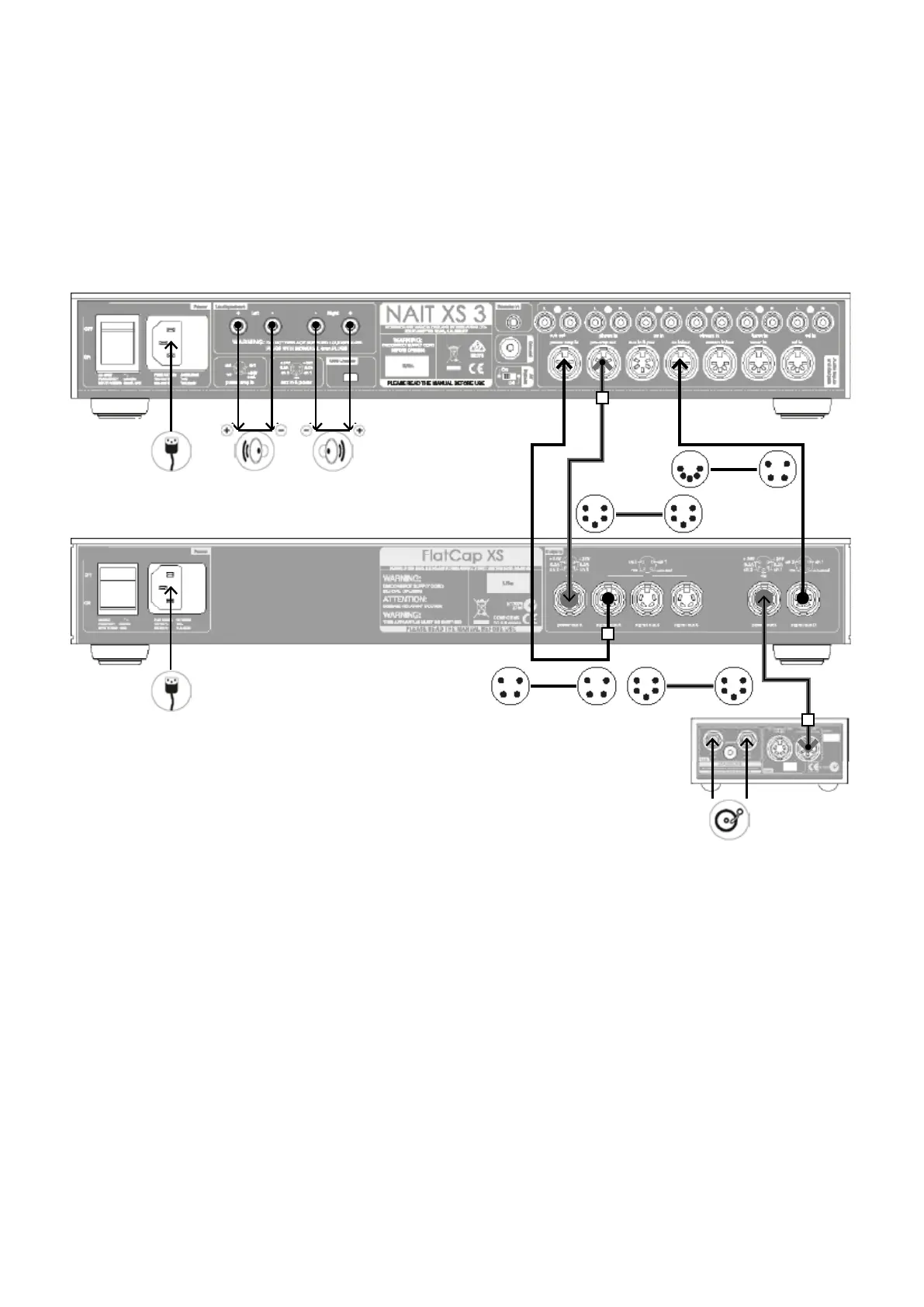

The diagram below illustrates one example of a NAIT XS 3 system upgrade. Other system upgrades using external power
supplies or additional power ampliers are possible. Contact your Naim retailer or local distributor for more information. Icon
descriptions can be found in Section 16.
10.1 NAIT XS 3 with FlatCap XS power supply and StageLine phono amplifier
