3. Setup

- Must be performed by a technician -

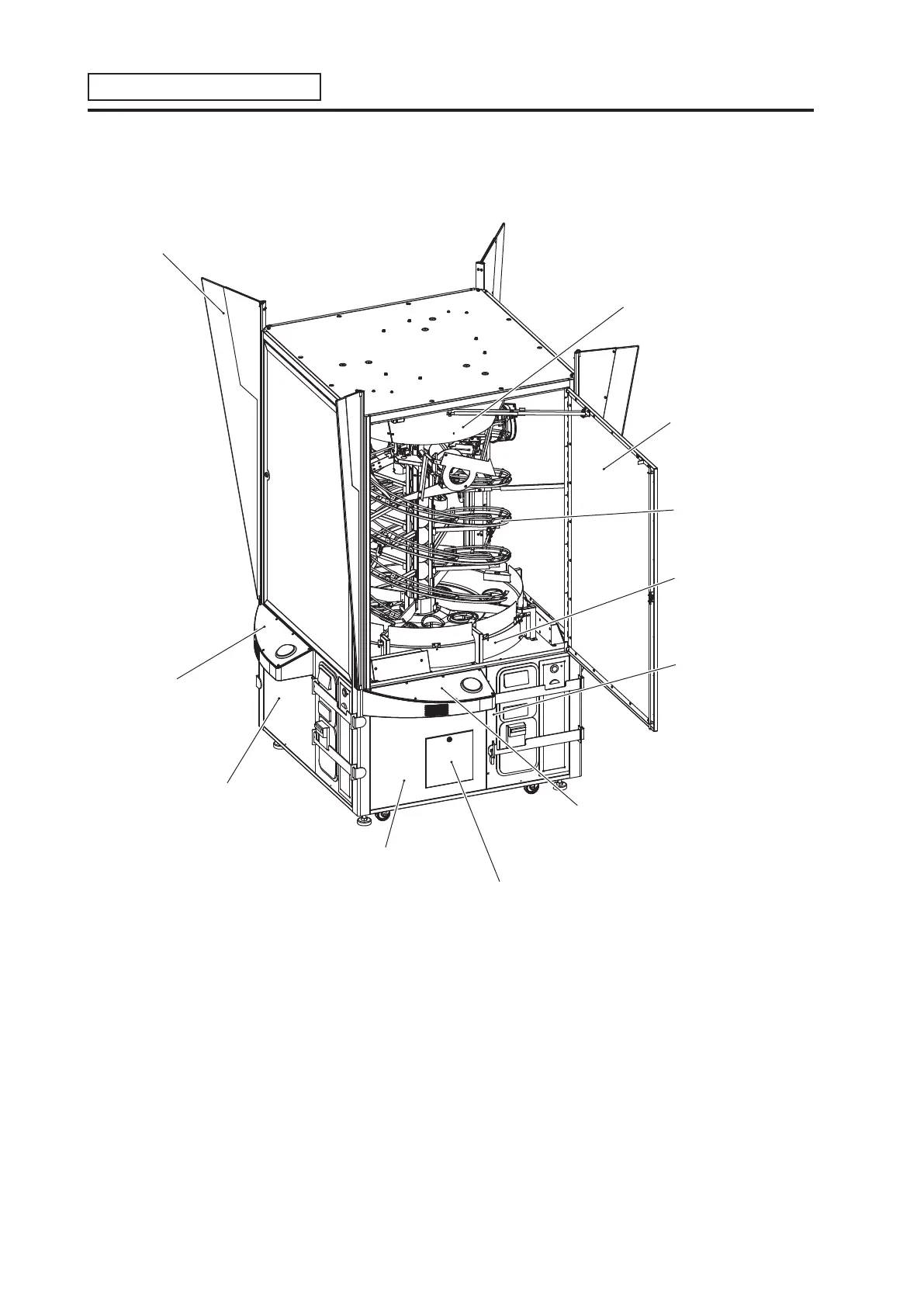

3-4 Structure (Part Names)

 Overall structure

Pillar assembly

Control panel assembly

for Station 4 (green)

(Opposite side:

Station 2 (blue))

for Station 1 (yellow)

(Opposite side: Station 3 (red))

Control panel assembly

Jackpot display (JPD) assembly

Spiral assembly

Field assembly

Cabinet base assembly

Acrylic door assembly

MAINT DOOR A

(only for Station1)

MAINT DOOR B

(only for Station1)

MAINT DOOR C

(for Stations 2, 3, and 4)

NAMCO PAC-MAN SWIRL User Manual
