Test Mode
7. Troubleshooting
Troubleshooting
Disassembling/Replacement Procedure
- Must be performed by a technician -

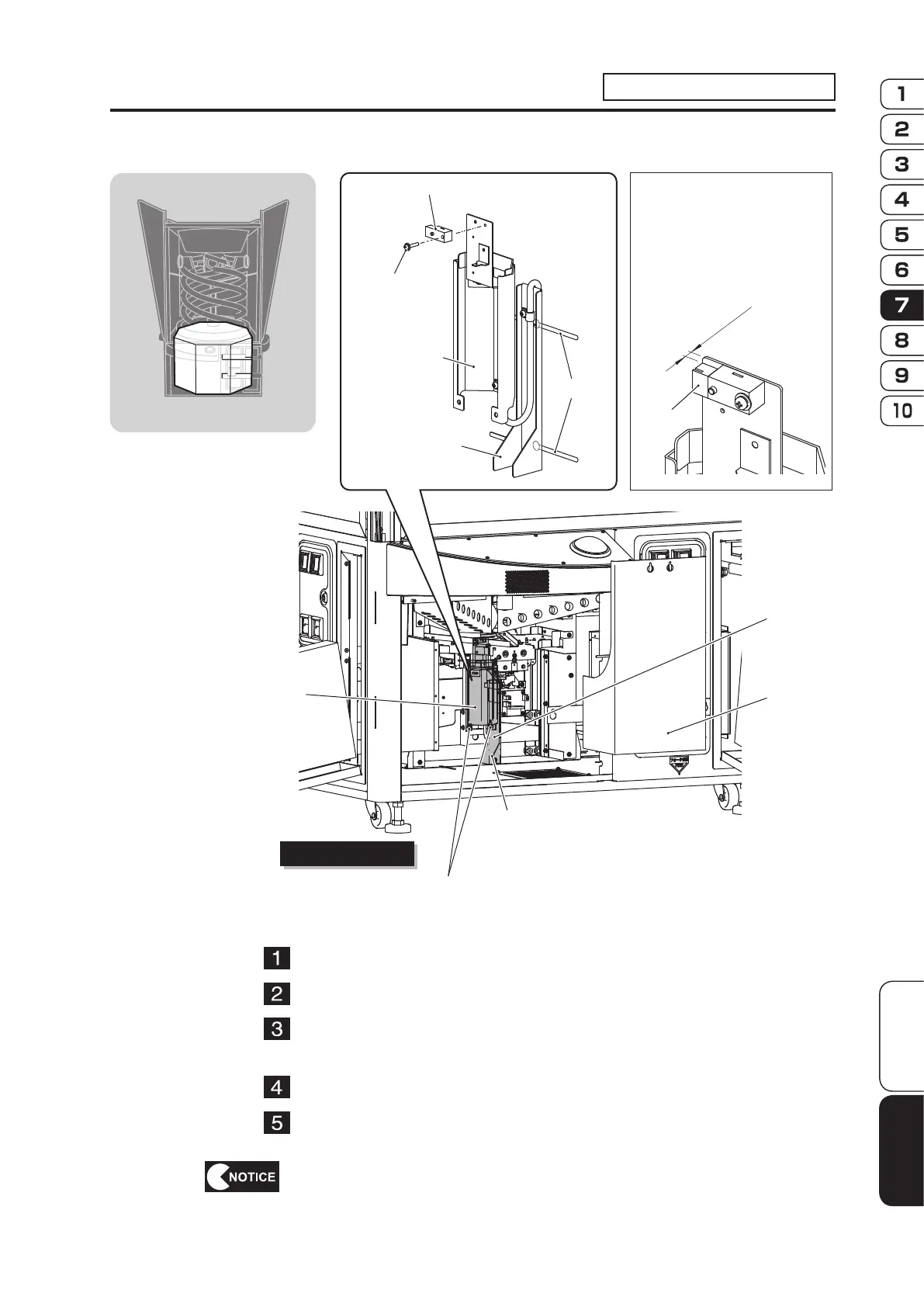

7-3-4 BALL DETECTING SENSOR
Core assembly (ball lift)
Station 2 (blue)
GUARD F
CABLE
HOLDER
LIFT PLUNGER C
Two pan head screws
(w/washers) (M4 x 6)
Unscrew Pan head screw
(w/washers) (M4 x 6)
BALL DETECTING SENSOR
Pan head screw
(w/washers)
(M3 x 16)
Cable clip
CABLE HOLDER
LIFT PLUNGER
C
Connector
gap
Note
When attaching the new BALL
DETECTING SENSOR, make
sure that the sensor orientation
is as in the figure.
Remove the MAINT DOOR C on Station 2 (blue) using the service key.
Loosen the four pan head screws with washers (M4 x 6) to remove the GUARD F.
Unscrew the pan head screw with washers (M4 x 6), disconnect the harness connector, and
loosen the two cable clips to remove the CABLE HOLDER.
Unscrew the two pan head screws with washers (M4 x 6) to remove the LIFT PLUNGER C.
Unscrew the pan head screw with washers (M3 x 16) and disconnect the harness connector to
replace the BALL DETECTING SENSOR.
When attaching the new BALL DETECTING SENSOR, make sure that the sensor
orientation is as in the gure above.
To Next Page
