[2] DISASSEMBLING AND ASSEMBLING
CAUTION
• When removing the radiator cap, wait at least ten minutes after the engine has stopped and cooled down.
Otherwise, hot water way gush out, scalding nearby people.
Thermostat Assembly
1. Remove the thermostat cover mounting screws, and remove the
thermostat cover (1).
2. Remove the thermostat assembly (3).
(When reassembling)
• Apply a liquid gasket (Three Bond 1215 or equivalent) only at the
thermostat cover side of the thermostat cover gasket (2).
W1105115

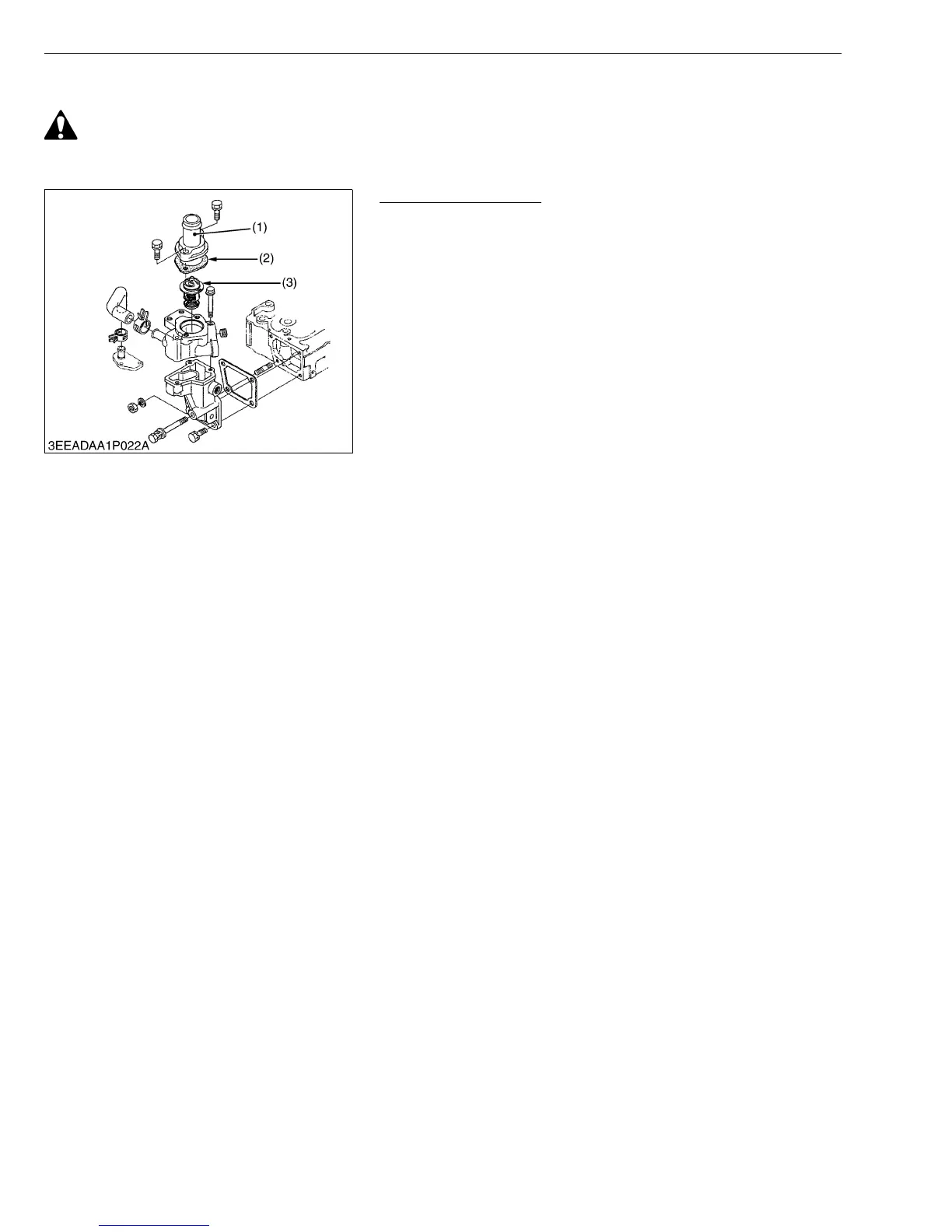

(1) Thermostat Cover
(2) Thermostat Cover Gasket
(3) Thermostat Assembly
