Nanni 5.280HE - Cylinder Number

S-2
03-M Series, WSM
DIESEL ENGINE
(2) Cylinder Number

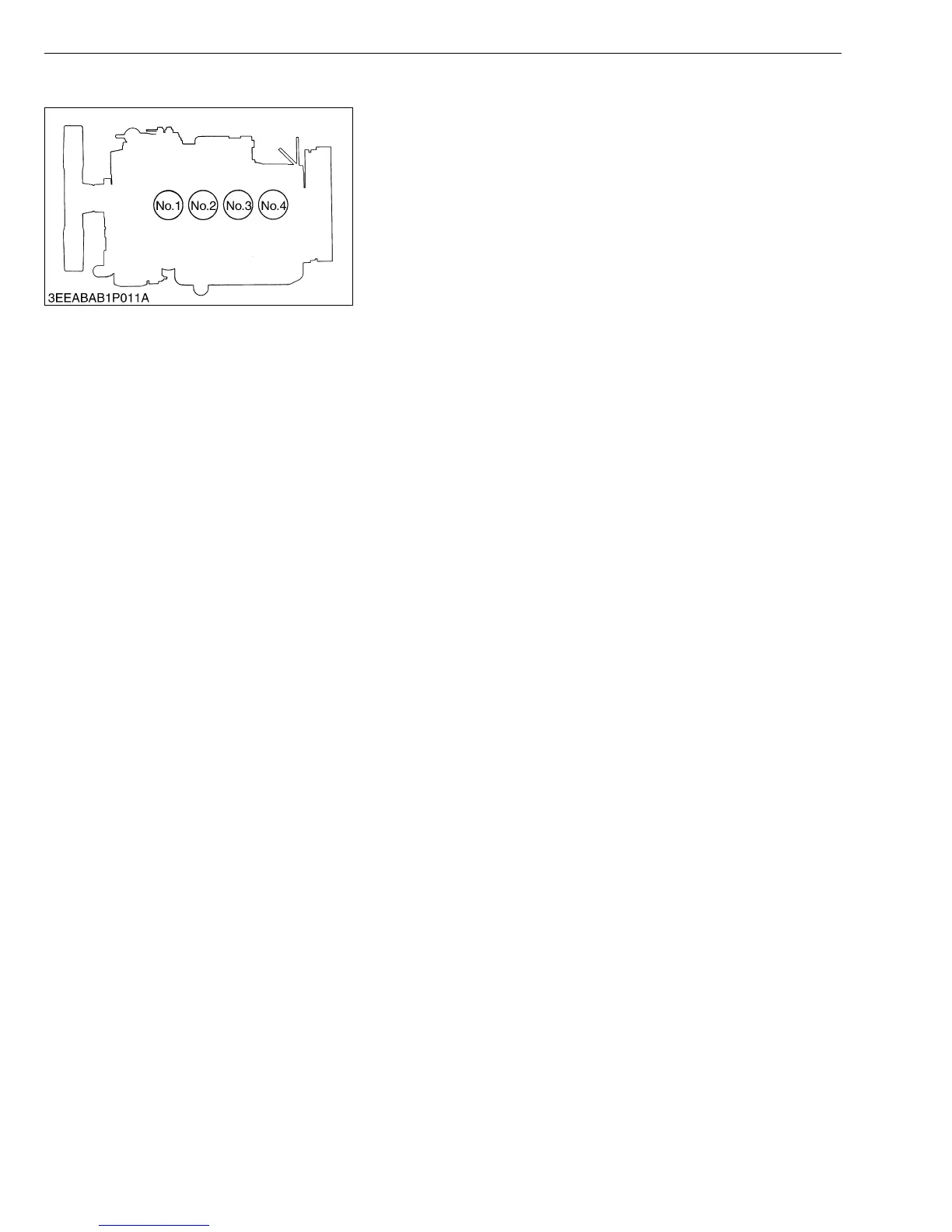

The cylinder numbers of 03-M Series diesel engine are
designated as shown in the figure.
The sequence of cylinder numbers is given as No.1, No.2, No.3
and No.4 starting from the gear case side.
W1011077
KiSC issued 08, 2012 A
