S-53
03-M Series, WSM
DIESEL ENGINE

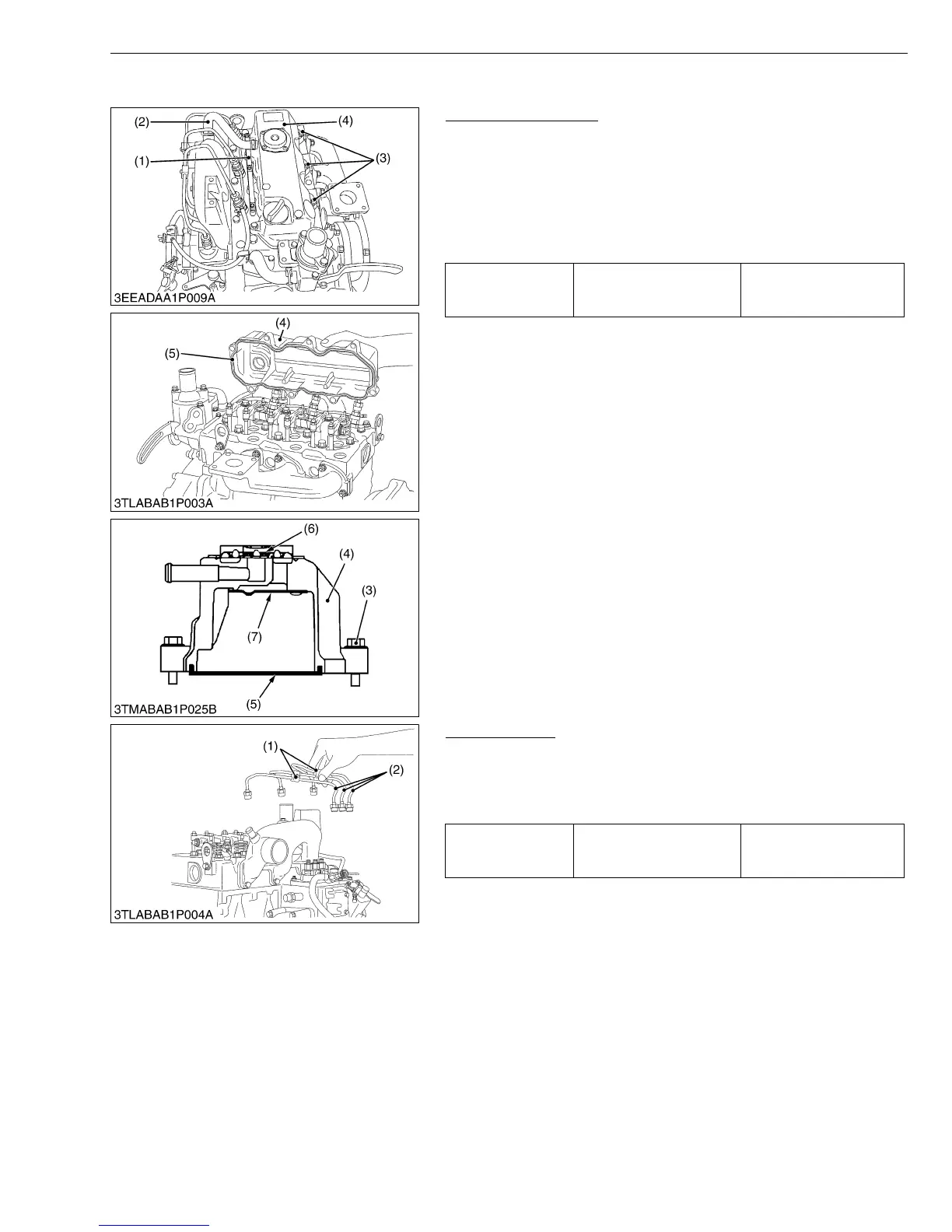

(3) Cylinder Head and Valves
Cylinder Head Cover
1. Remove the lead (1).
2. Remove the breather hose (2).
3. Remove the head cover screws (3).
4. Remove the cylinder head cover (4).
(When reassembling)
• Check to see if the cylinder head cover gasket (5) is not
defective.
W1060460
Injection Pipes
1. Loosen the screws on the pipe clamps (1).
2. Detach the injection pipes (2).
(When reassembling)
• Blow out dust inside the pipes.
W1060970
Tightening torque Cylinder head cover screw
6.9 to 11.3 N·m
0.7 to 1.15 kgf·m
5.1 to 8.32 ft-lbs
(1) Lead
(2) Breather Hose
(3) Head Cover Screw
(4) Cylinder Head Cover
(5) Cylinder Head Cover Gasket
(6) Breather Valve
(7) Plate
Tightening torque Injection pipe retaining nut
24.5 to 34.3 N·m
2.5 to 3.5 kgf·m
18.1 to 25.3 ft-lbs
(1) Pipe Clamp (2) Injection Pipe
To Next Page
