Nanni 5.280HE - Page 48

S-31
03-M Series, WSM
DIESEL ENGINE

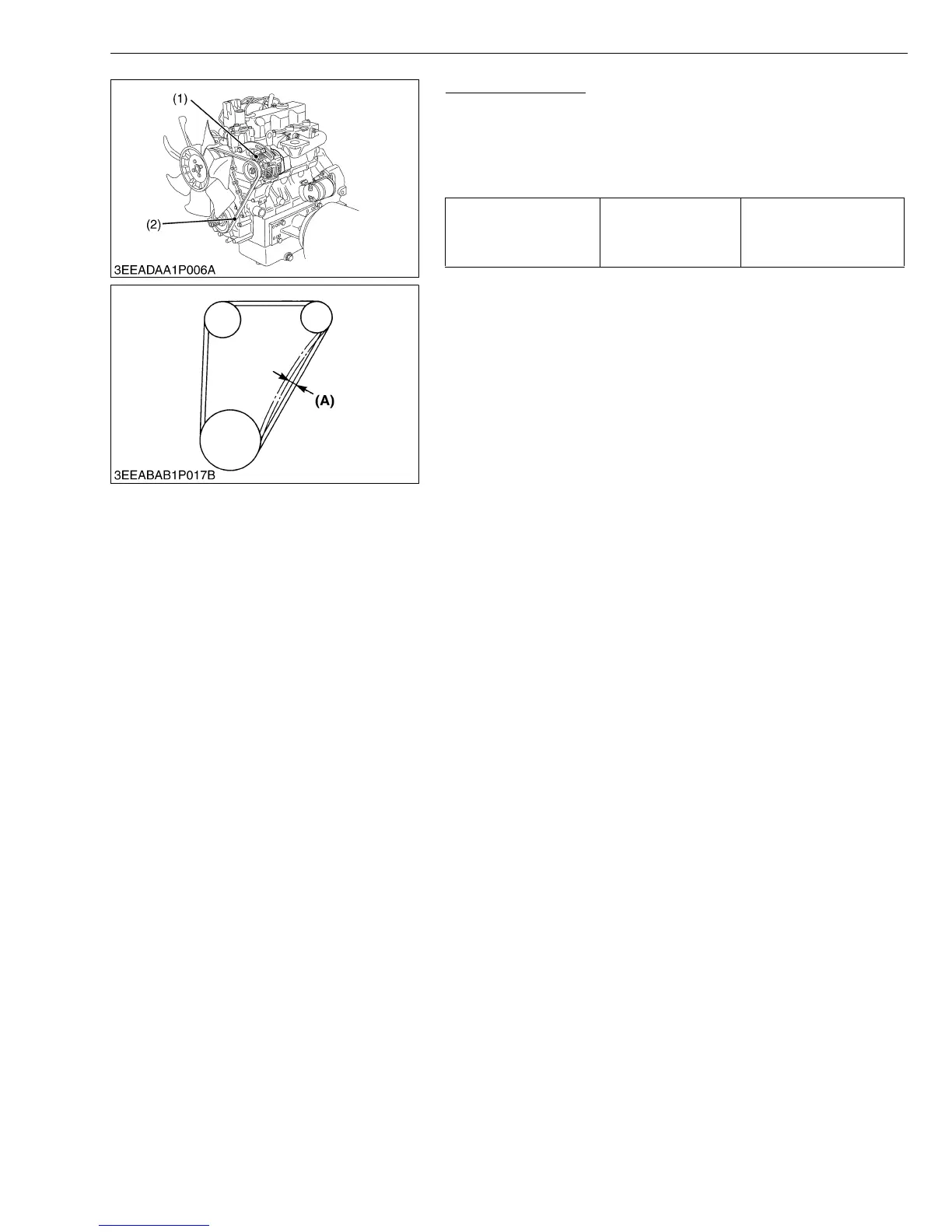

Replacing Fan Belt
1. Remove the alternator (1).
2. Remove the fan belt (2).
3. Replace new fan belt.
4. Install the alternator (1).
5. Check the fan belt tension.
W1052220
Deflection (A) Factory spec.
7.0 to 9.0 mm
/ 98 N or 10 kgf
0.28 to 0.35 in.
/ 98 N or 22 lbs.
(1) Alternator
(2) Fan Belt
(A) Deflection
KiSC issued 08, 2012 A
