Nanni 5.280HE - Page 63

S-46
03-M Series, WSM
DIESEL ENGINE

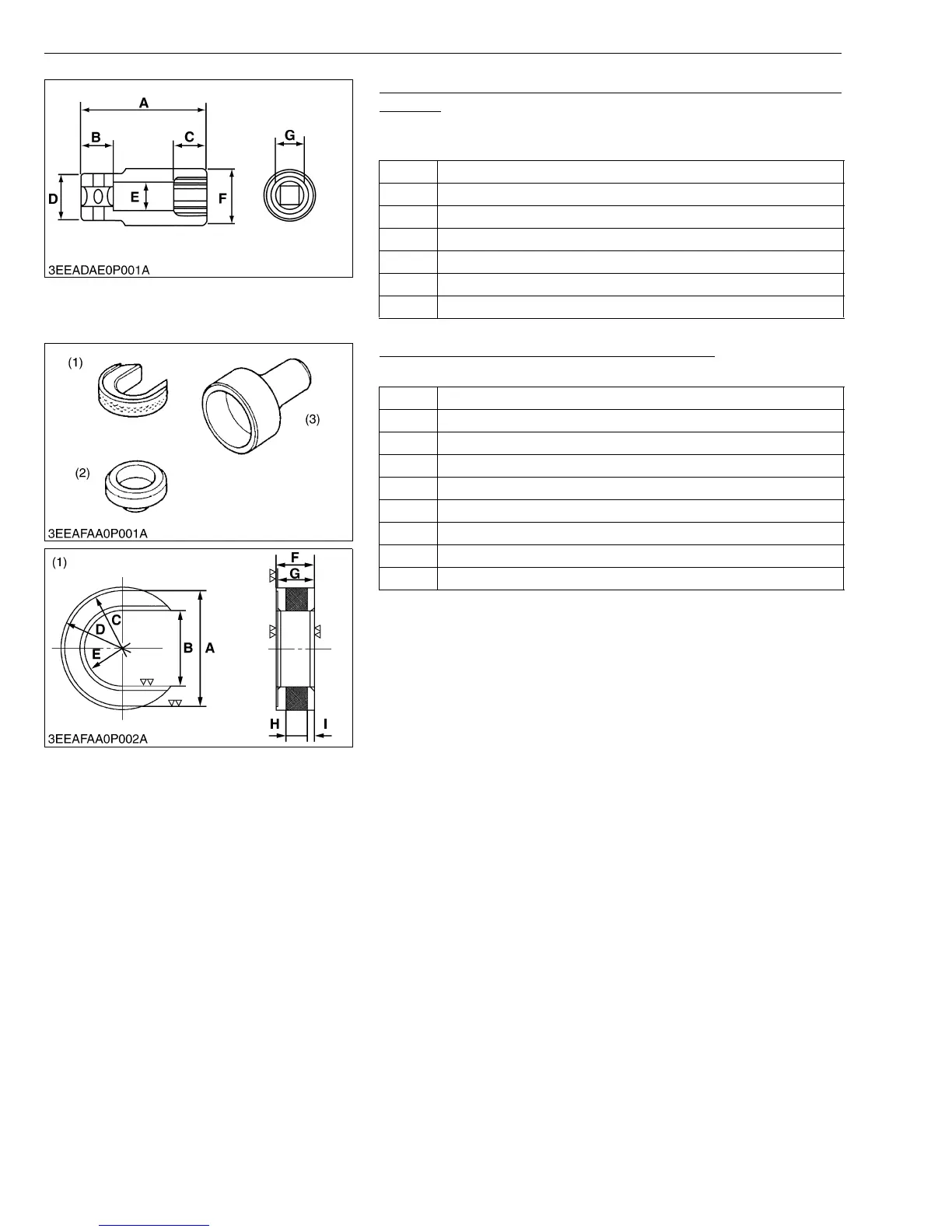

Socket Wrench for Crank Pulley Nut (46 mm Deep Socket
Wrench)
Application: Use to loosen and tighten the fan drive pulley mounting
nut.
W1044361
Auxiliary Socket for Fixing Crankshaft Sleeve
Application: Use to fix the crankshaft sleeve of the diesel engine.
W1027695
A 100 mm (3.94 in.)
B 25.0 mm (0.98 in.)
C 27.0 mm (1.06 in.)
D 45.0 mm dia. (1.77 in. dia.)
E 35.0 mm dia. (1.38 in. dia.)
F 62.5 mm dia. (2.46 in. dia.)
G 46.0 mm (1.81 in.)
A 80.0 mm (3.1496 in.)
B 60.1 to 60.3 mm (2.3661 to 2.3740 in.)
C 80.0 mm dia. (3.1496 in. dia.)
D 85.0 mm dia. (3.3465 in. dia.)
E 60.1 to 60.3 mm dia. (2.3661 to 2.3740 in. dia.)
F 26.3 to 26.4 mm (1.0354 to 1.0394 in.)
G 25.85 to 25.90 mm (1.0177 to 1.0197 in.)
H 15.0 mm (0.5906 in.)
I 5.0 mm (0.1969 in.)
(1) Stopper
(2) Sleeve Guide
(3) Auxiliary Socket for Pushing
KiSC issued 08, 2012 A
