S-49
03-M Series, WSM
DIESEL ENGINE

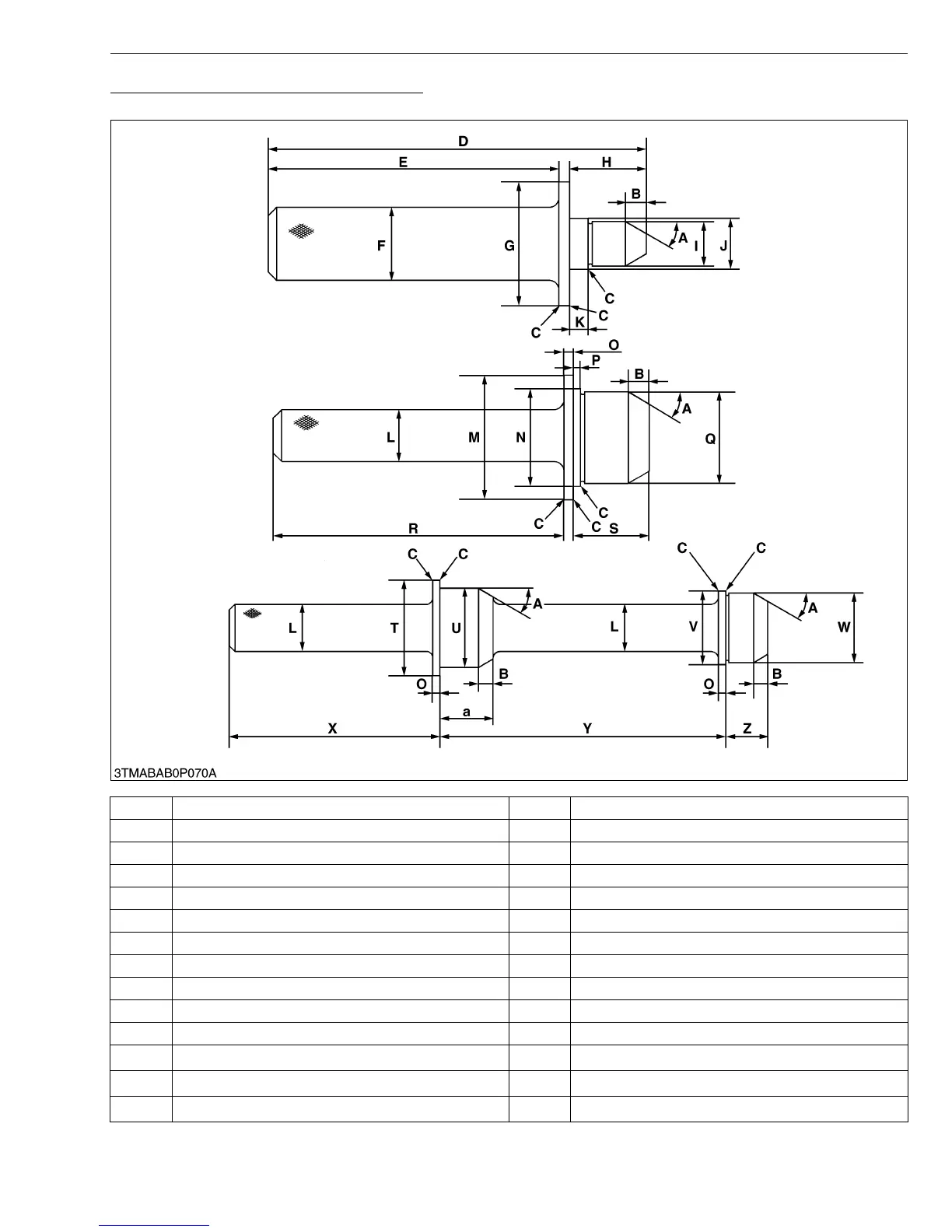

Balancer Metal Replacing Tool (for Fitting)
Application: Use to press fit the metal bearing.
A 0.52 rad (30 °) O 5 mm (0.20 in.)
B 10 mm (0.39 in.) P 3.3 to 3.7 mm (0.130 to 0.146 in.)
C Chamfer 0.3 mm (0.01 in.) Q 43.934 to 43.950 mm dia. (1.7297 to 1.7303 in. dia.)
D 182 mm (7.17 in.) R 140 mm (5.51 in.)
E 140 mm (5.51in.) S 36 mm (1.42 in.)
F 35 mm dia. (1.38 in dia.) T 60 mm dia. (2.36 in. dia.)
G 60 mm dia. (2.36 in dia.) U 46.950 to 46.975 mm dia. (1.8484 to 1.8494 in. dia.)
H 37 mm (1.46 in.) V 44.950 to 44.975 mm dia. (1.7697 to 1.7707 in. dia.)
I 21.947 to 21.960 mm dia. (0.8641 to 0.8646 in. dia.) W 41.934 to 41.950 mm dia. (1.6509 to 1.6516 in. dia.)
J 24.959 to 24.980 mm dia. (0.9826 to 0.9835 in. dia.) X 145 mm (5.71 in.)
K 8.8 to 9.2 mm (0.346 to 0.362 in.) Y 195.25 to 195.75 mm (7.687 to 7.707 in.)
L
25 mm dia. (0.98 in. dia.)
Z
29 mm (1.14 in.)
M
60 mm dia. (2.36 in. dia.)
a
36 mm (1.42 in.)
N
46.950 to 46.975 mm dia. (1.8484 to 1.8494 in. dia.)
