NANO D-Series - PRODUCT ASSEMBLY (NDL-060 to NDL-090)

Page 5

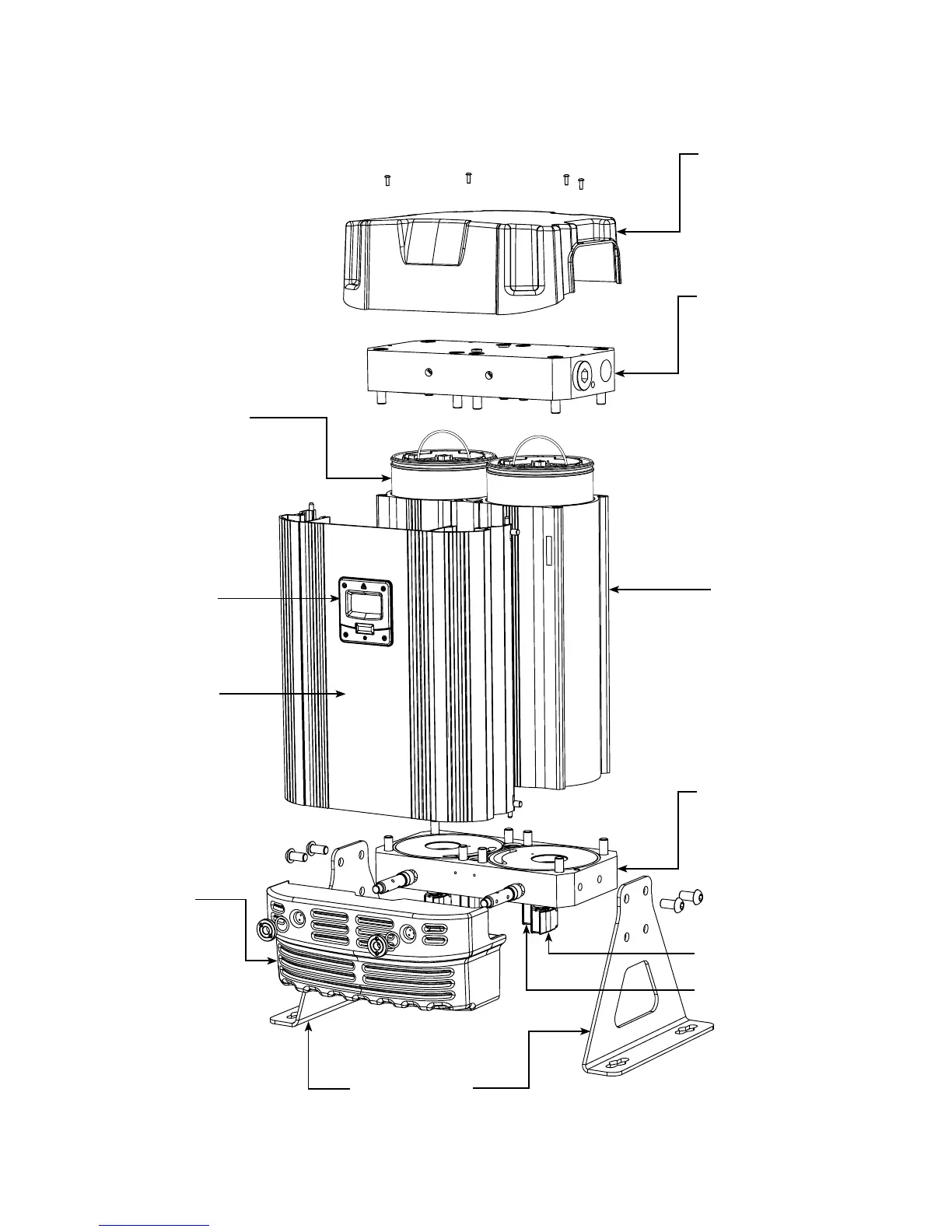

2. PRODUCT ASSEMBLY
TOP COVER
INLET/OUTLET
(TOP) MANIFOLD
ASSEMBLY
DESICCANT
CARTRIDGES
DRYER
CONTROLLER
DRYER
SHROUD
DRYER
COLUMN
BOTTOM
MANIFOLD
ASSEMBLY
DRYER LEGS
SILENCER
BOX
MODELS NDL-060 TO NDL-090
EXHAUST VALVE
INLET VALVE
