Page 9
5.1 SERVICE ‘A’ INSTRUCTIONS
REPLACING DESICCANT CARTRIDGES (NDL-130 ONLY)
(Every 12,000 hrs or 24 months)

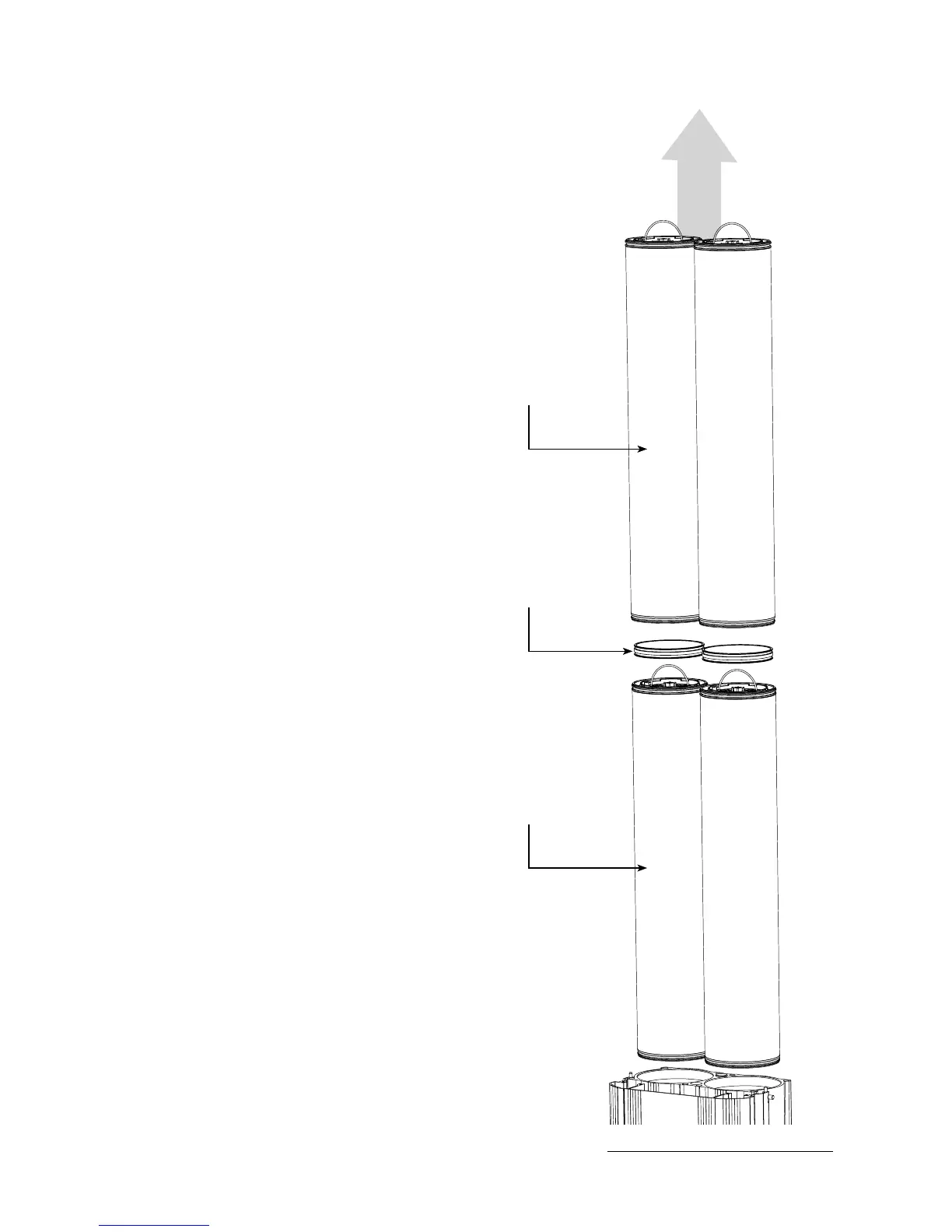

Figure 3
Please refer to Service ‘A’ instructions on page
8 of this service guide.
NOTE: NDL-130 dryer has 2x cartridges per
side. (See Figure 3)
DRYER CARTRIDGE
(UPPER)
DRYER CARTRIDGE
(LOWER)
CARTRIDGE JOINING
RINGS
REPLACING DESICCANT CARTRIDGES
1. Lift handle and remove the upper cartridges
from the dryer and discard them.
NOTE: Ensure the upper cartridges have
disconnected from the cartridge joining rings
and the lower cartridges before attempting to lift
from the dryer.
2. Remove the lower cartridges from the dryer
and discard.
3. Identify upper and lower cartridges from the
service kit.
4. Insert joining ring into the head of the lower
cartridge.
5. Insert lower cartridges separatey into dryer.
6. Insert upper cartridges separately into dryer.
7. See page 8 for reassembling top manifold.
