NANO D2 - Process and Instrumentation Diagram

NANO D2
24 pages
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
20
heatless desiccant air dryer
D2

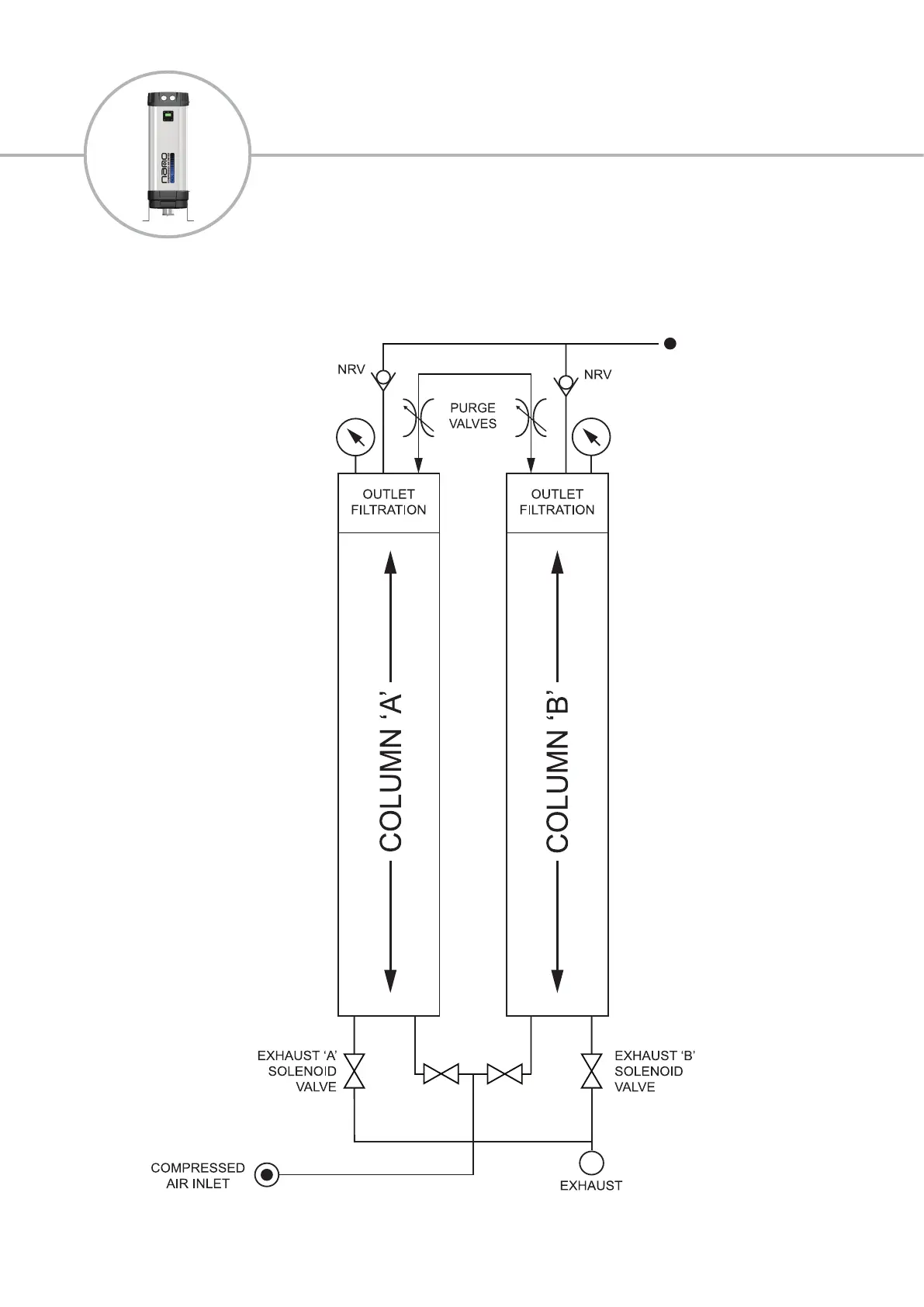

5. process and instrumentation diagram
SOLENOID
INLET ‘B’
VALVE
SOLENOID
INLET ‘A
VALVE
TO BUFFER
PRESSURE
COLUMN ‘A
GAUGES
PRESSURE
COLUMN ‘B’
GAUGES
