NANO D2 - Typical System Layout and Filtration; Site Location Requirements

9
heatless desiccant air dryer
D2

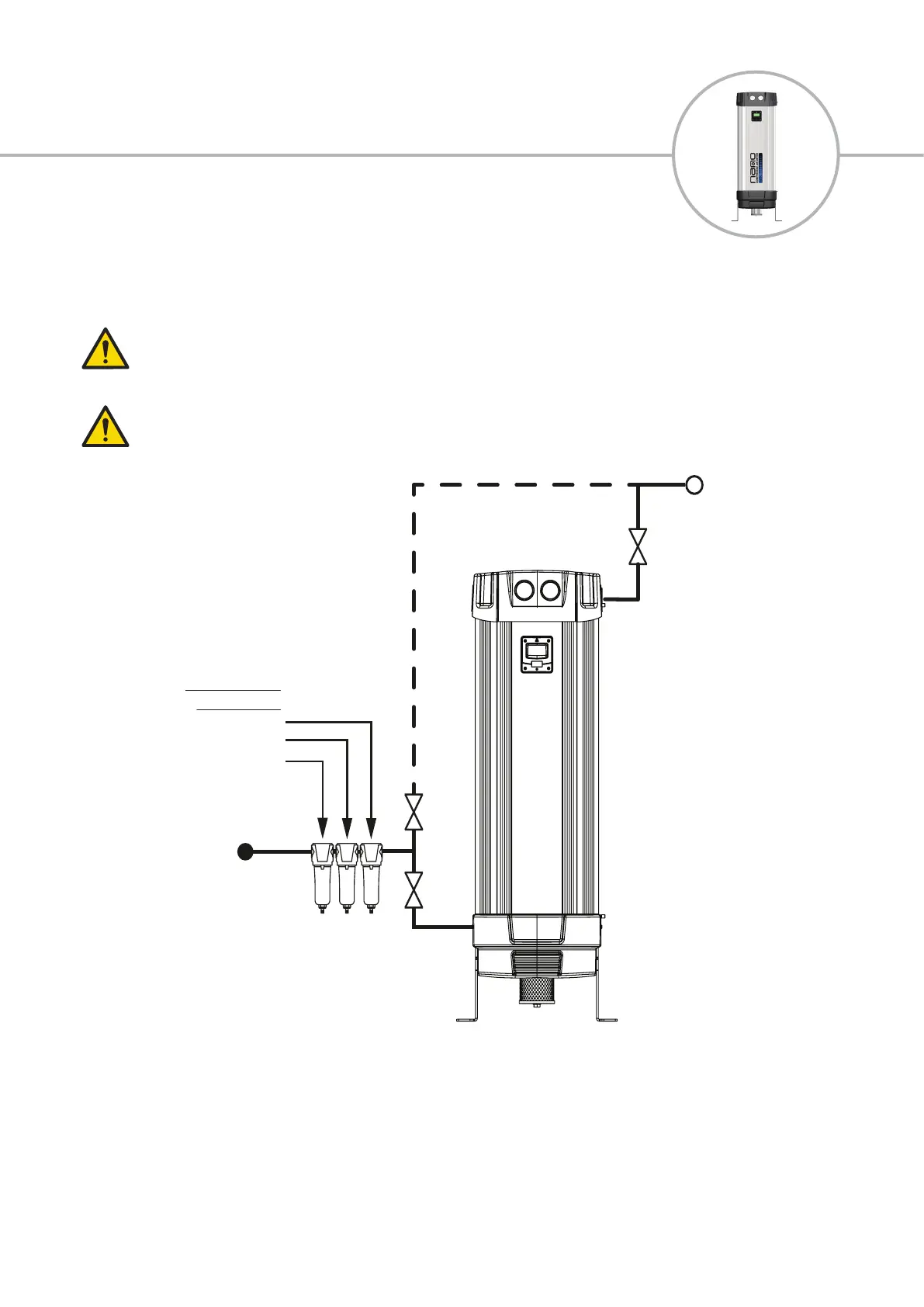

2.4 typical system layout
IMPORTANT: It is essential that the system into which the unit is installed is tted with a pressure limiting/
relief device. This device should be installed between the compressor and the unit.
IMPORTANT: Inlet valves have a single direction ow. Any reverse ow of these valves can cause irreparable
damage to the valve diaphragms.
By-pass
(optional)
Recommended
inlet ltration
0.01 μm lter
1 μm lter
water separator
inlet ow
compressed
air outlet
compressed
air inlet
outlet ow
2.5 site location
When selecting an installation site for the unit, ensure the following conditions are met:
• Installation site should be located indoors on a at protected from the weather and other harmful conditions.
• The ambient temperature must not drop below 1.5°C (34.7°F) or exceed 50°C (122°F)
• The installation site should be level and able to support the weight of the product.
• Ensure sufcient space around the product, to allow access for operation and maintenance.
