GEM-P1632 Installation Instructions
L
NAPCO Security Systems
WI808F 8/03
!
Page 20
Configuring the GEM-RP2ASe2/GEM-K2AS and GEM-RP3DGTL/GEM-K3DGTL Keypads
Up to 7 GEM-RP2ASe2/GEM-K2AS keypads may be connected to the panel (Keypads 1–7). Each must be configured
for a keypad address. In addition, the keypad may be configured to disable (a) touchpad backlight; (b) LCD backlight;
and (c) entry sounder. Keypads are configured by the proper selection of jumpers. Refer to the label on the circuit
board fishpaper for jumper locations and a summary of settings. If you have a GEM-K2AS keypad, please see the
"Important Note" on page 5 regarding the differences between the GEM-RP2ASe2 and the GEM-K2AS keypad buttons.
The buttons displayed below will be for the GEM-K2AS keypad.
KEYPAD ADDRESS
If more than one keypad is
installed:
!
Each must be assigned a
unique address (that is, no two
keypads may be numbered
alike).
!
Keypads must be addressed
consecutively (that is, missing
numbers are not permitted).
!
Only Keypad No. 1 may be
used for programming.
(However, for ease of
programming, it is recommended
that a GEM-RP1CAe2 or GEM-
K1CA be selected as Keypad
#1).
Assign the keypad address
number by selecting Jumpers
J1–3 in accordance with the
table at left.
*Note: (1) Keypads are factory
supplied with no jumpers
installed and as such are
automatically configured as
Keypad No. 1. (2) Only one keypad in the system may be configured as Keypad No. 1, otherwise none will function.
TOUCHPAD BACK LIGHT
Cut Jumper A to disable touch pad backlighting to conserve 11mA standby current.
LCD BACKLIGHT
Cut Jumper B to disable LCD backlighting.
DISABLE SOUNDER
Cut Jumper to disable the sounder. (Do not disable in UL applications).
Keypad Configuration Mode
NAPCO Security Systems, Inc.
333 Bayview Avenue, Amityville, New York 11701
For Sales and Repairs, call toll free: (800) 645-9445
For direct line to Technical Service, call toll free: (800) 645-9440
Internet: http://www.napcosecurity.com

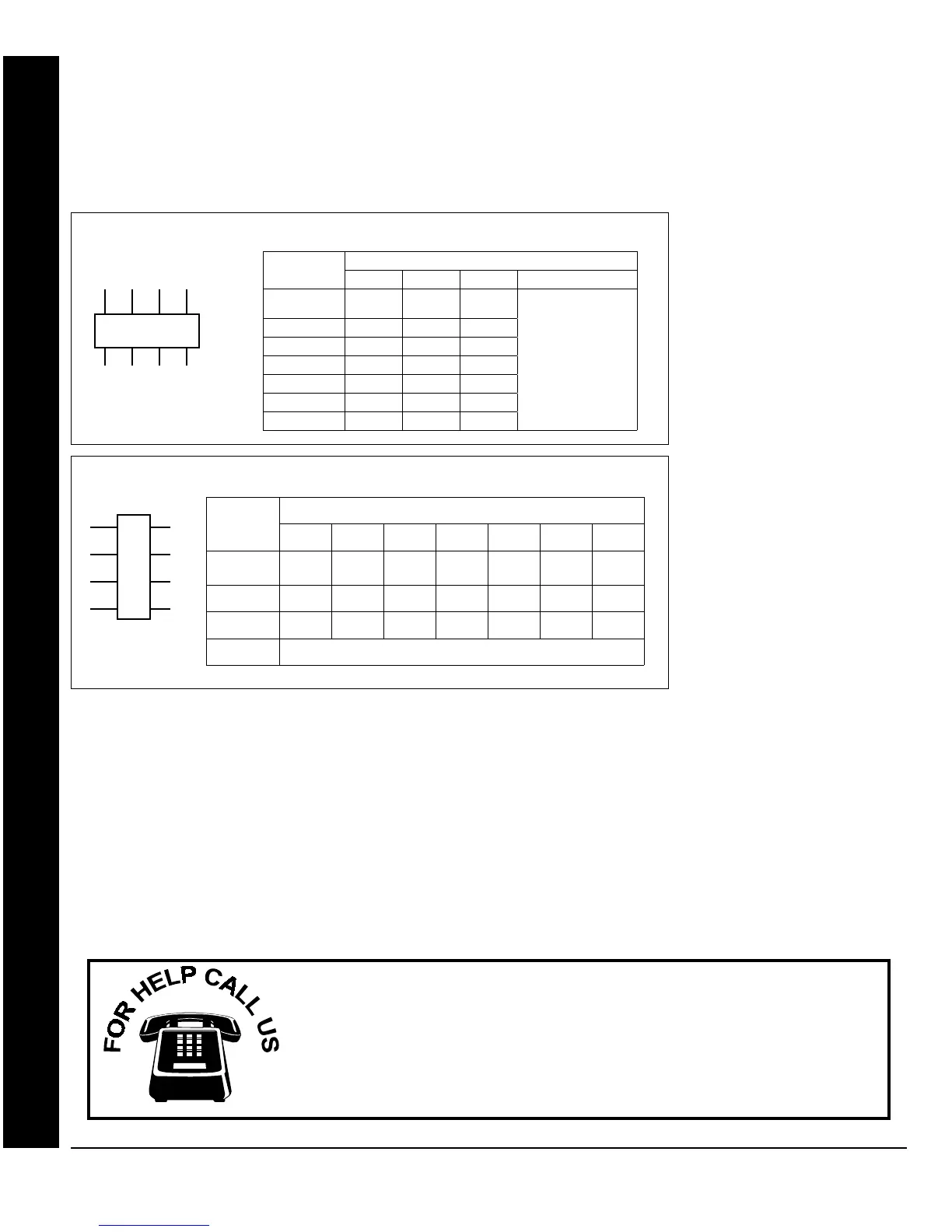

GEM-RP3DGTL KEYPAD
ADDRESS
NUMBER
KEYPAD NUMBER
1 2 3 4 5 6 7
1 OFF OR
ON
OFF ON OFF ON OFF ON
2 OFF ON ON OFF OFF ON ON
3 OFF OFF OFF ON ON ON ON
P MAY BE USED TO HOLD SPARE JUMPER
1
2
3
P
1
2
3
P
Jumper 1
GEM-RP2ASe2 KEYPAD
P 3 2 1
P 3 2 1
Jumper 1
KEYPAD
NUMBER
ADDRESS JUMPER
1 2 3 PARK
1 OFF OR
ON
OFF OFF
2 OFF ON OFF
3 ON ON OFF
4 OFF OFF ON
5 ON OFF ON
6 OFF ON ON
7 ON ON ON
MAY BE USED TO
HOLD SPARE
JUMPER
