Napoleon 485RSIB User Manual

25
www.napoleongrills.com
4 x N570-0073 (1/4-20 X 3/8”)
3/8”(10mm)
4 x N735-0003 (1/4” lockwasher)

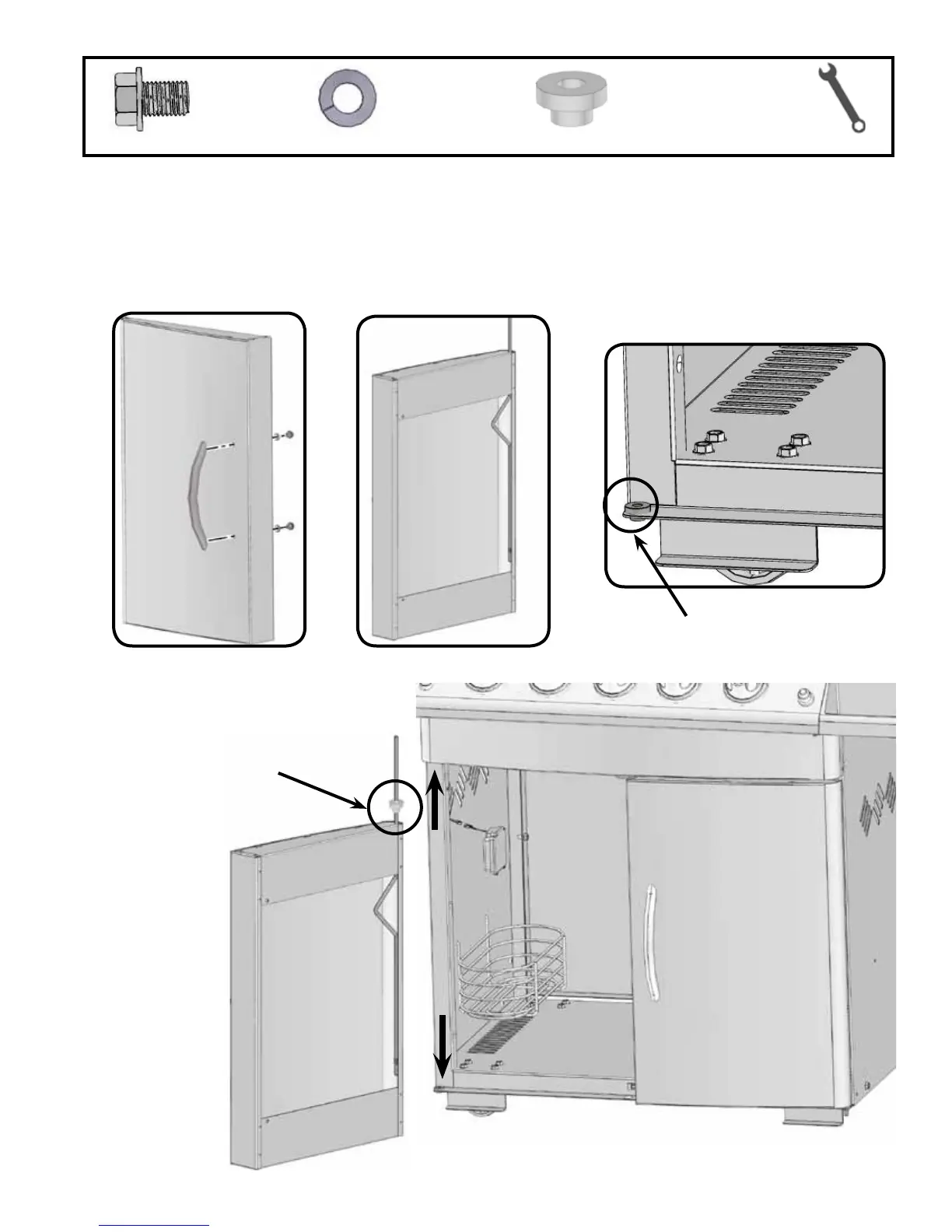

14. Cabinet Door Installaon
Install door handle onto front of door using (2) 1/4-20 x 3/8” screws per door and (2) 1/4” lock washers per door.
Insert pivot rod through hole on inside top of door and slide a door bushing over pivot rod. Holding door in one hand, direct
pivot rod into hole in underside of front cabinet support. Once secure, let rod slide down and through hole in boom of door
and into bushing in boom shelf.
4 x N105-0011 (door bushing)
Bushing
Bushing

Napoleon 485RSIB Specifications

General

Main Burners	4
Infrared Side Burner	Yes
Rotisserie Burner	Yes
Grill Grates Material	Stainless Steel
Infrared Sizzle Zone Burner	Yes
Rear Infrared Rotisserie Burner	Yes
Fuel Type	Propane or Natural Gas
Ignition System	JETFIRE™ Ignition
Ignition Type	Electronic
