W415-0973 / B / 08.28.13
7
IOM

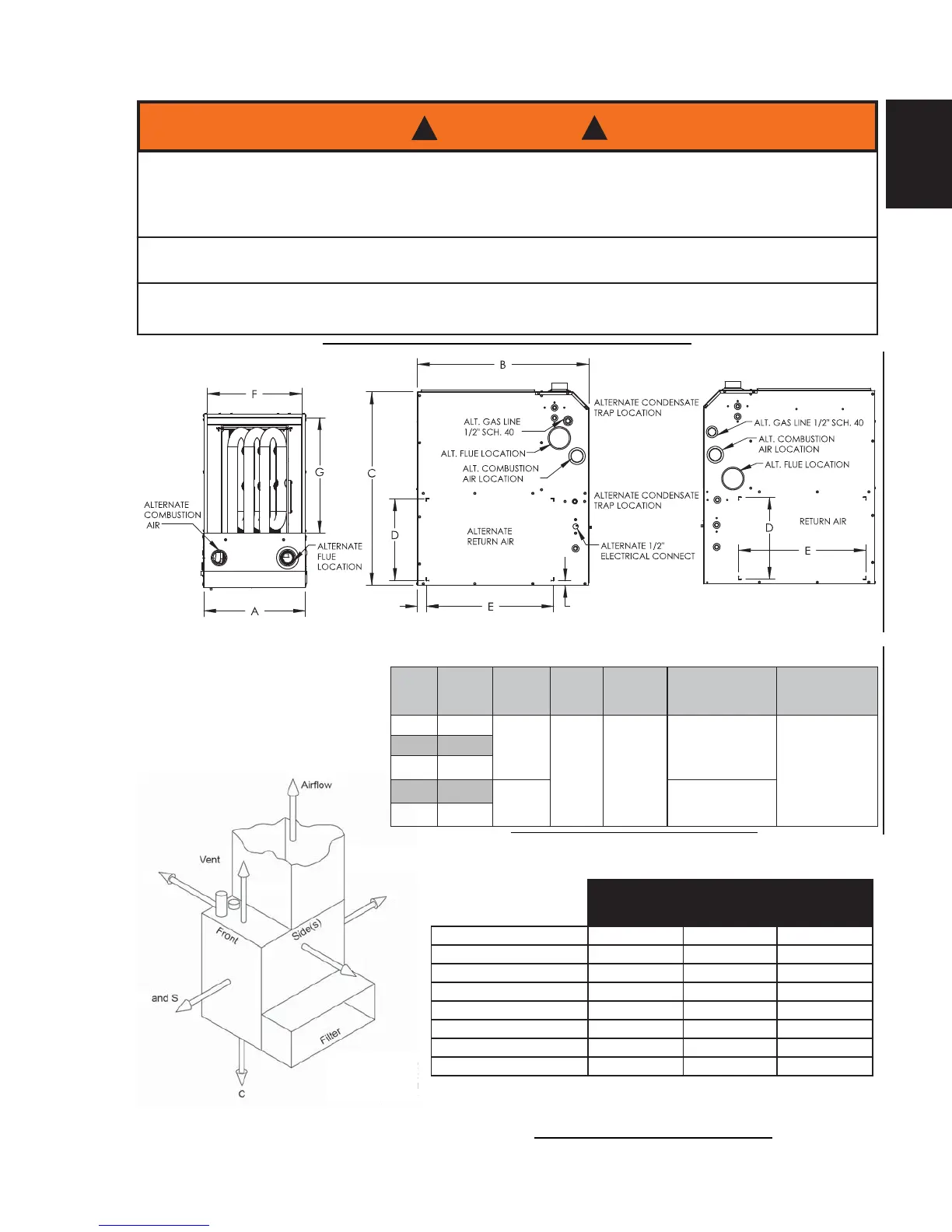

FIGURE 1 - FURNACE DIMENSIONS
TOP LEFT SIDE RIGHT SIDE
1 1/2"
(38mm)
3/4"
(19mm)
0"
Top
NOTES:
S - Service clearance 24 inches (610mm) or more.
C - Combustible oor (but not carpet or non-ceramic tile).
All models approved for closet installation.
Plenum
1/2" (13mm)
on all sides
0"
0"
0"
0"
H12.11.2
UPFLOW DOWNFLOW HORIZONTAL
TOP 0 0 0
PLENUM TOP 1/2" (13mm) 0 1/2" (13mm)
FRONT 0* 0* 0*
BACK 0 0 0
SIDES 0 0 0**
BOTTOM 0*** 0 0
FLUE PIPE 0 0 0
ENCLOSURE CLOSET CLOSET CLOSET
*24" (610mm) REQUIRED FOR SERVICE
**SUPPLY AIR OUTLET / 1/2" (13mm) RETURN AIR INLET
*** CERTIFIED FOR CLOSET INSTALATION ON COMBUSTIBLE FLOORING.
H3.6
WARNING
!
!
WHEN THIS FURNACE IS INSTALLED IN A RESIDENTIAL GARAGE, IT MUST BE
INSTALLED SO THE BURNERS AND IGNITION SOURCE ARE LOCATED NO LESS THAN
18” (457 mm) ABOVE THE FLOOR TO PREVENT THE RISK OF IGNITING FLAMMABLE
VAPORS WHICH MAY BE PRESENT IN THE GARAGE.
THE FURNACE MUST BE LOCATED OR PROTECTED TO AVOID PHYSICAL DAMAGE BY
VEHICLES.
FAILURE TO HEED THESE WARNINGS CAN CAUSE A FIRE OR EXPLOSION, RESULTING
IN PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
TABLE A - FURNACE DIMENSIONS
INPUT
OUTPUT
HIGH Width Depth Height Supply Air Return Air
K/Btu/hr K/Btu/hr A B C (F x G) (D x E)
45 43
17 1/2”
(445mm)
29 1/2”
(749mm)
32 7/8”
(835mm)
16 1/4” x 19 5/8”
(413mm x 499mm)
14” x 23”
(356mm x 584mm)
60 57
80 76
100 95
22 1/2”
(572mm)
21 1/4” x 19 5/8”
(540mm x 499mm)
120 114
H12.6.3
TABLE B - MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS
