4 Control and display elements ELT-400
4-2
MODE
Operating mode selection key
• Switches between “Exposure STD” and “Field
strength” modes.
• Switches between standardized evaluation
schemes and measurement ranges.
• All evaluation schemes and measurement ranges
implemented in the instrument are shown beneath
the display. The selected setting is indicated by the
arrow symbol in the display.
DETECT
Detection mode selection key
• Switches between RMS, PEAK and STND
(Standard) detection modes.
• The selected setting is shown in the display.
LOW CUT
Lower frequency range limit selection key
• Switches the lower frequency range limit between
1 Hz, 10 Hz and 30 Hz.
• The selected setting is shown in the display.

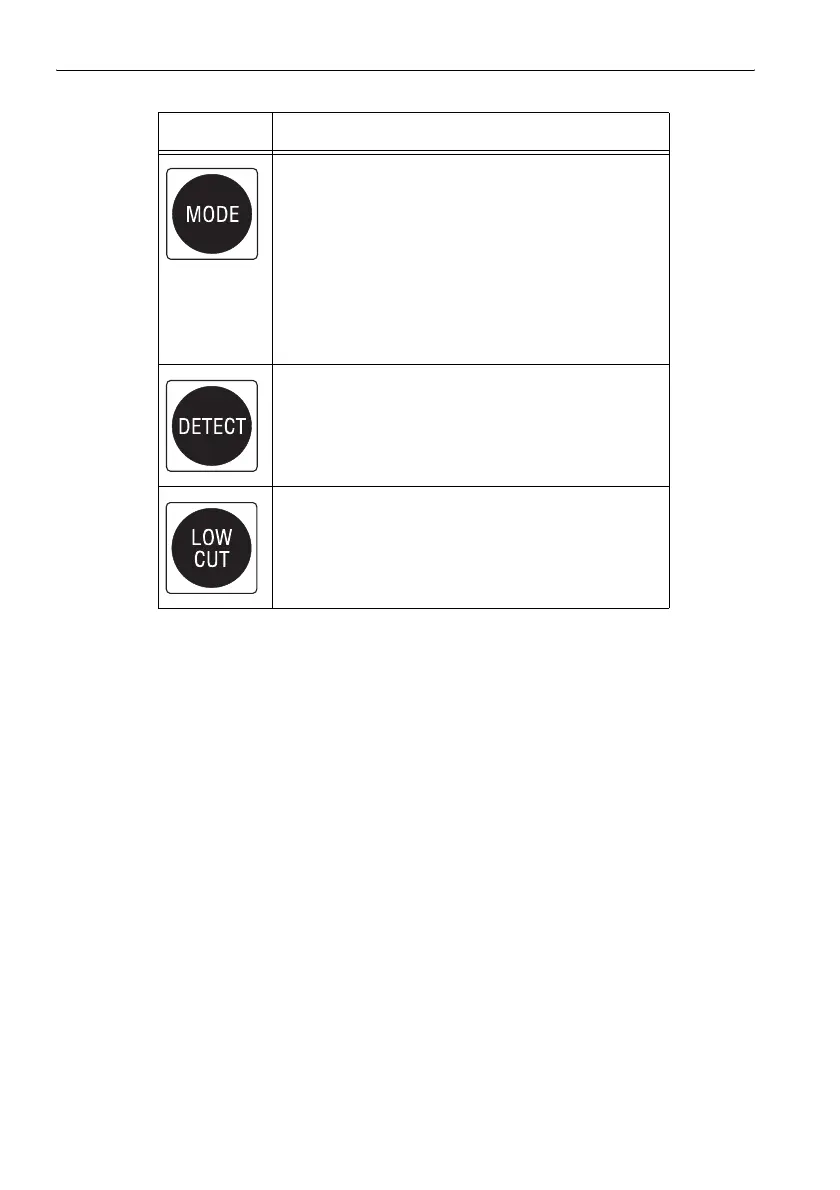

Key Function
Table 4-1 Keypad overview
