4 Control and display elements ELT-400
4-6
4.3 External connectors
There are three connector sockets for external equipment on the left side of
the instrument.
Socket Function
RS-232
Serial data interface
Computer (PC) connection
• 19200 baud
• 8n1
• Handshake XON/XOFF
• For pin connections (see Fig. 7-1)
Scope
Analog signal output (active probe)
Connection to oscilloscope or analyzer
• Three channels (X-Y-Z)
• Interface cable: D-SUB15 / 3 x BNC
Charge
AC adapter / charger unit connector
• Nominal voltage: 9 V

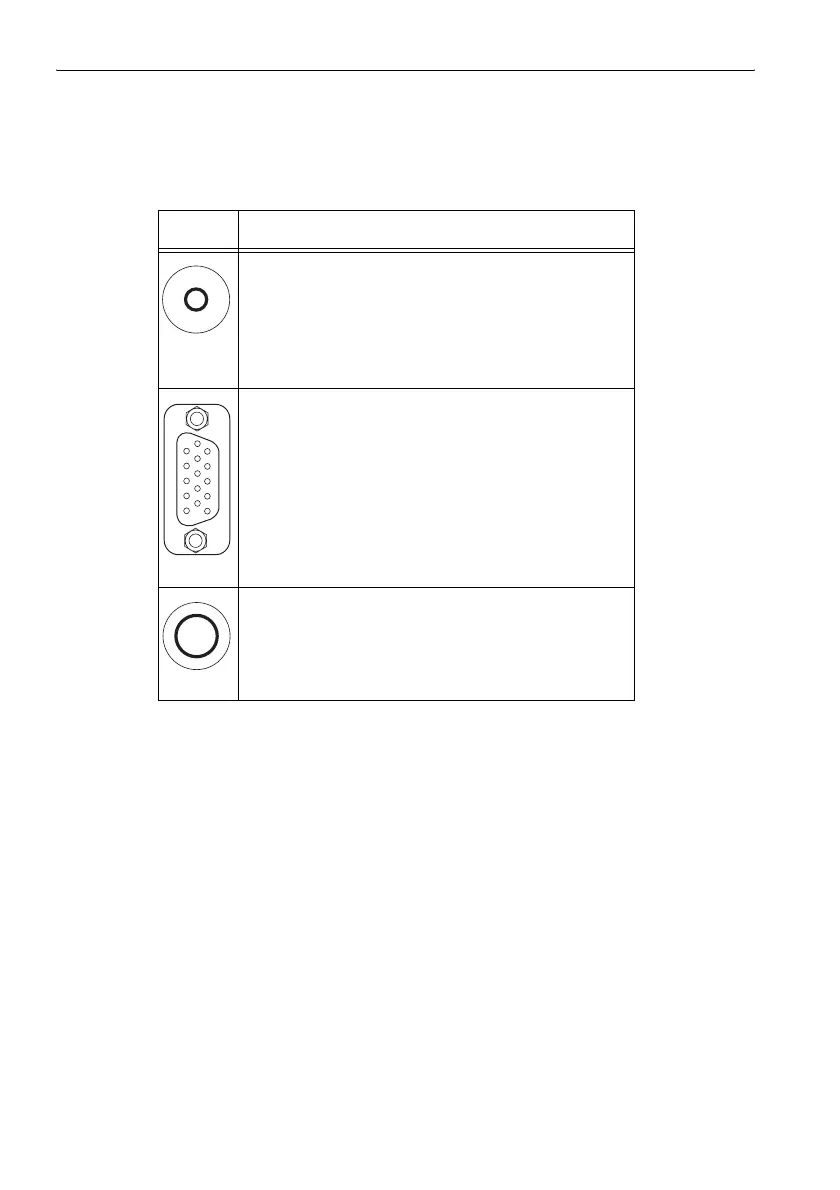

Table 4-3 External connectors
