7-1
7 Remote control
7.1 Setting up the data link
You will need a suitable cable for making the link between the ELT-400 and
the measurement computer. It is available as an accessory
(BN 2260/90.51).
7.1.1 Data cable

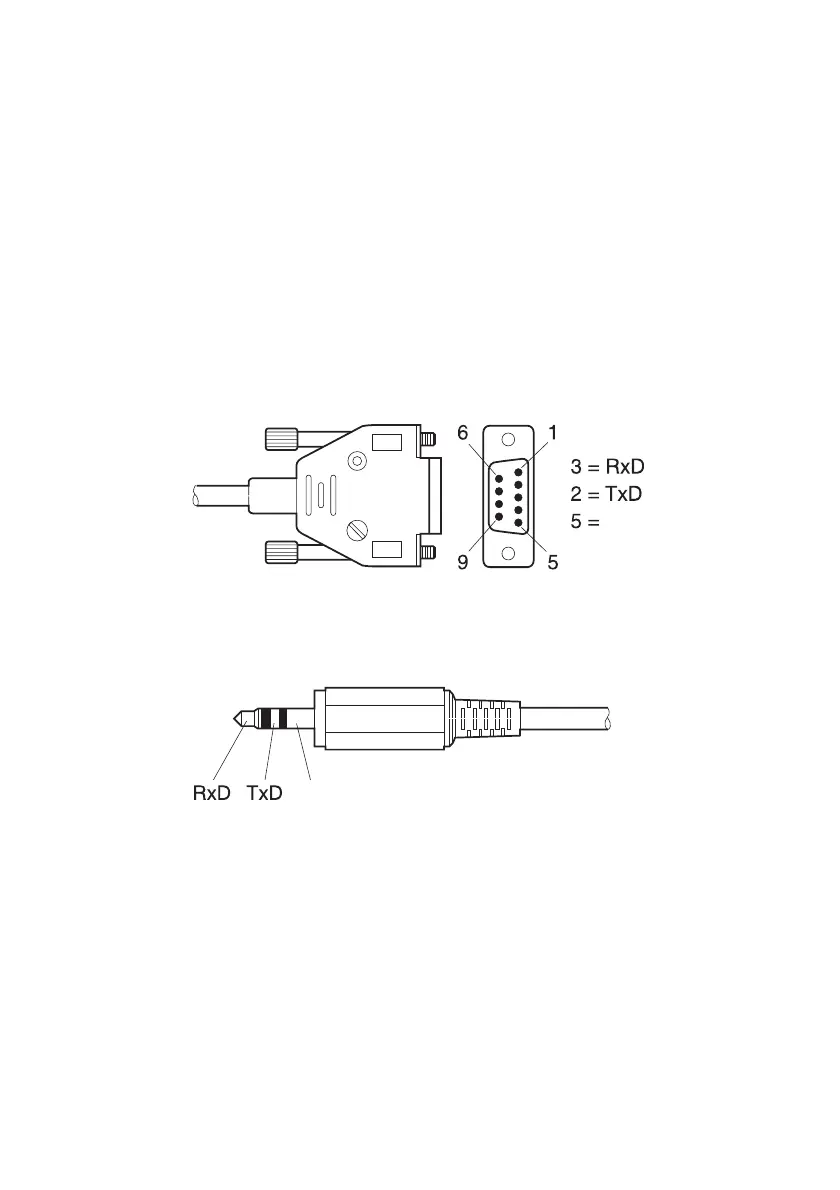

DB9 plug:
Fig. 7-1 DB9 plug connections
Jack plug:
Fig. 7-2 Jack plug connections
Direction of data flow:
• RxD: Data from ELT-400
• TxD: Data to ELT-400
GND
GND
