Annex C: Instrument function ELT-400
C-6
Overload monitoring
The measurement signals of all three measurement channels (X, Y, Z) are
monitored separately. The overload indicator is displayed if an overload
occurs in at least one of the channels.

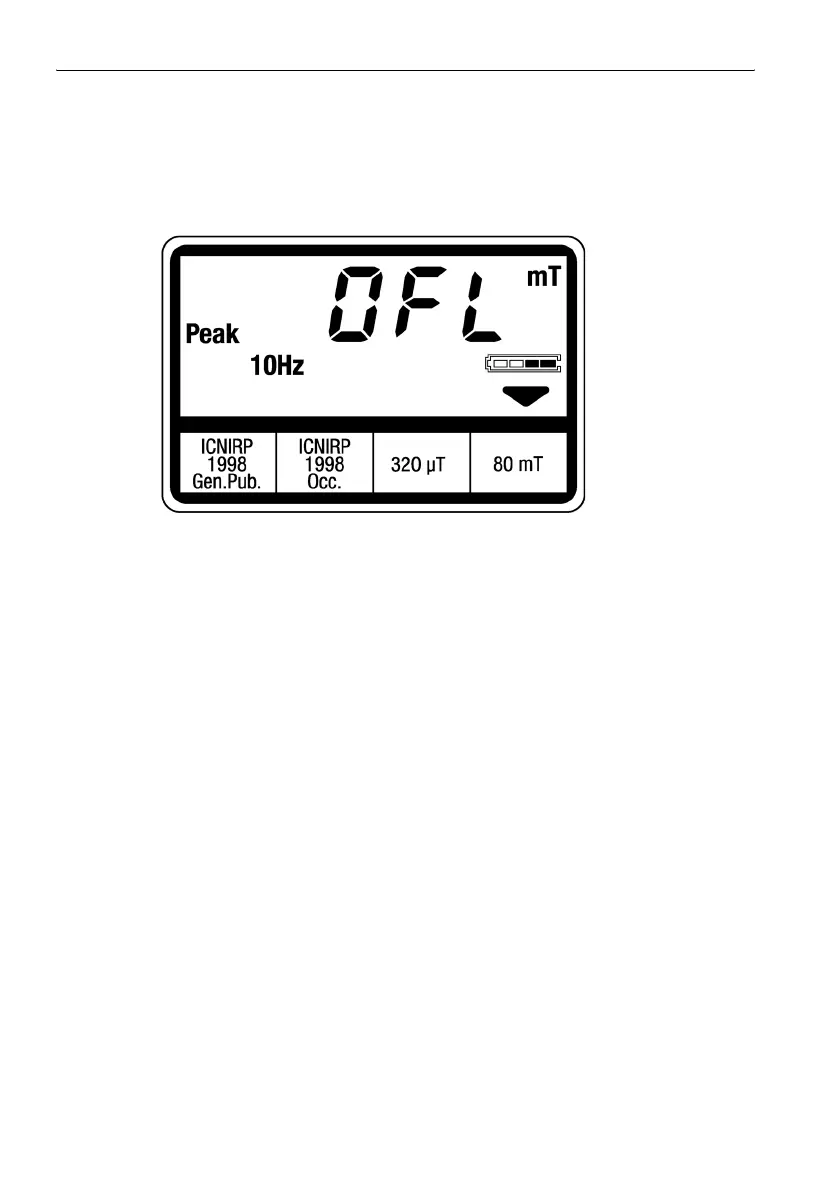

Fig. C-4 Overload indicator
The overload indicator is displayed as long as the result is not valid, i.e.
normally for at least 1 second (standardized averaging time).
In MAX HOLD display mode, the overload indicator can only be cleared by
switching off the MAX HOLD function.
ª Selecting the display mode: see page 5-11
