NARDA ELT-400 - Connecting Cable Details

Annex D: Probe configuration / signal output ELT-400
D-2
Connecting cable
The following connections are provided if the analog interface cable
(BN 2260/90.80) is used:
Koax plug:
• Red: X axis
• Green: Y axis
• Blue: Z axis
DB9 plug:

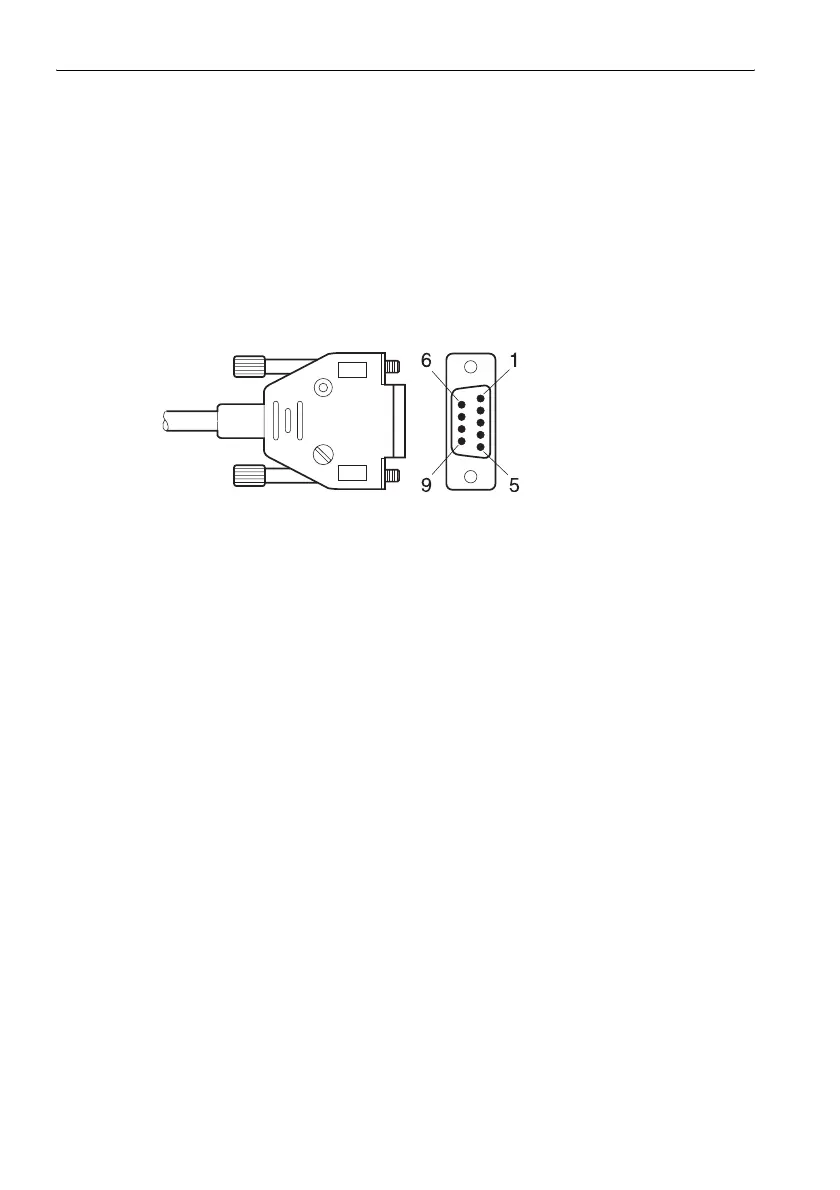

Fig. D-2 DB9 plug connections
1 = X-Axis
2 = Y-Axis
3 = Z-Axis
6 = GND
7 = GND
8 = GND
plug housing = GND
