Wall mounting kit
In this application VASCO is cooled independently by its auxiliary cooling fan integrated in the radiator.

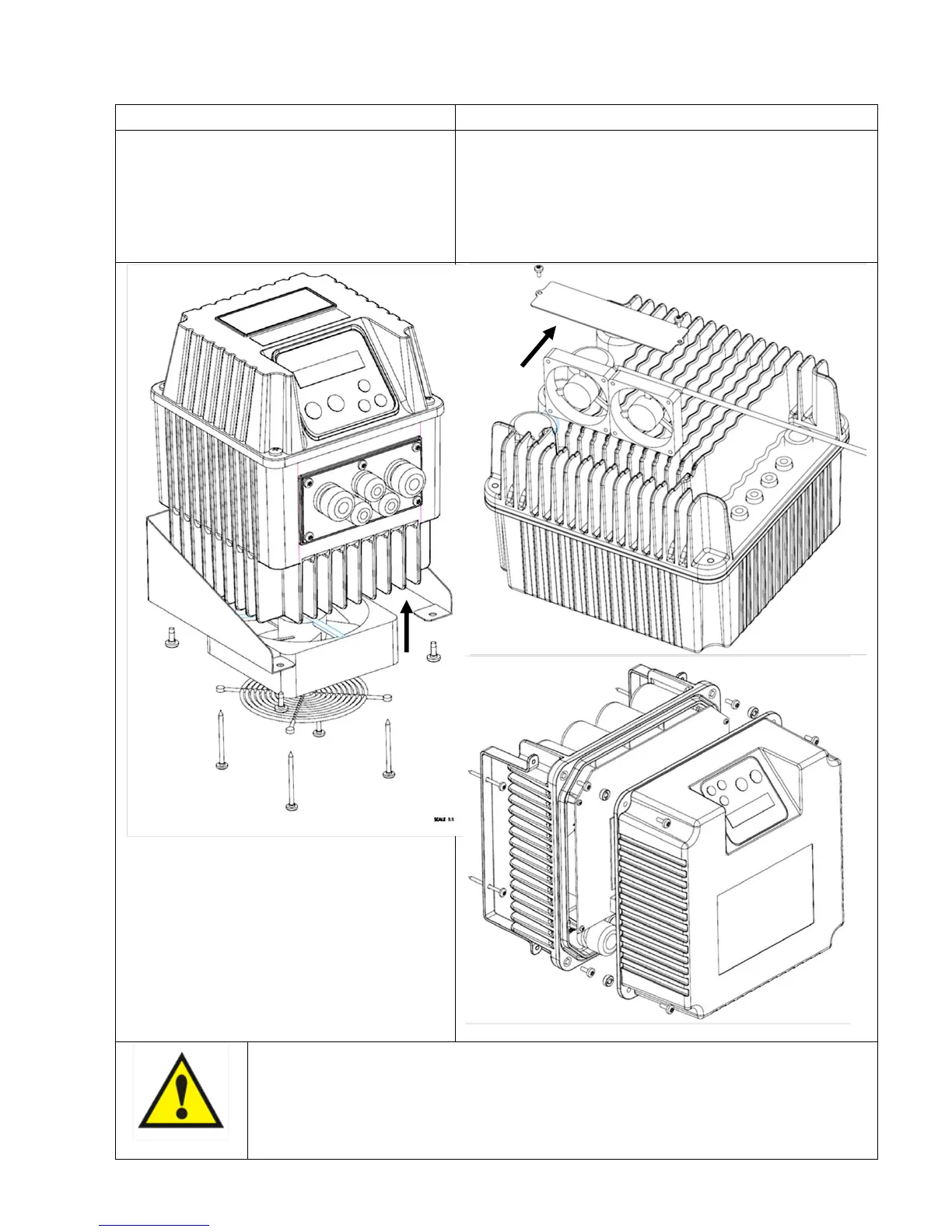

Wall-mounted kit is composed of:
VASCO 209,214,406,409
VASCO 414,418,425
 n.° 1 auxiliary fan 230V AC (VASCO 209,214)
or 12 VDC (VASCO 406,409)
 n.° 4 screws to fix cooling fan
 n.° 1 protection grill
 n.° 1 metal bracket in AISI 304
 n.° 4 screws to fix VASCO to wall bracket
 n.° 2 12 V DC fans.
 n.° 1 fans cover.
 n.° 2 fans cover fixing screws
 n.° 2 wall fixing brackets
 n.° 4 M5 screws for VASCO fixing to the brackets
 n.°1 holes reference sheet
Make sure the manufacturer that the electric motor is suited for operation in the inverter
Make sure to properly attach the grid of the auxiliary cooling fan.
Make sure to remove the auxiliary cooling fan if VASCO is coupled to a motor. Failure to do so
creates a high risk of overheating the motor and VASCO unit.
