3. Technical Characteristics
Model
Vin +/- 15%
Max
Vout
Max line
current
Max
motor
current
Typical P2 motor
[V] AC
[V]
[A]
[A]
[KW]
[HP]
VASCO 209
1 x 230 VAC
1 x Vin
15
9
1.1
1.5
3 x Vin
7
1.5
2
VASCO 214
1 x 230 VAC
1 x Vin
20
9
1.1
1.5
3 x Vin
11
3
4
VASCO 406
3 x 380-460 VAC
3 x Vin
10
6
2,2
3
VASCO 409
3 x 380-460 VAC
3 x Vin
13,5
9
4
5,5
VASCO 414
3 x 380-460 VAC
3 x Vin
16
14
5,5
7,5
VASCO 418
3 x 380-460 VAC
3 x Vin
21
18
7,5
10
VASCO 425
3 x 380-460 VAC
3 x Vin
31
25
11
15
VASCO 430
3 x 380-460 VAC
3 x Vin
35
30
15
20
 Power frequency: 50 - 60 Hz (+/- 2%)
 Max. ambient temperature at nominal current: 40°C (104 °F)
 Max. altitude at nominal current: 1000 m
 Grade of protection: IP55 (NEMA 4) *
 RS485 serial communication
 PWM configurable: 2.5 ,4, 6, 8, 10 kHz
* auxiliary cooling fan of the VASCO, used in wall mounted applications, has a protection rating of IP20. If you require the version with IP55, please
contact the supplier.
VASCO is able to power the motor with a higher current for a short period of time according to the linear relation:
101% of the nominal current for 10min., 110% nominal current for 1 min.

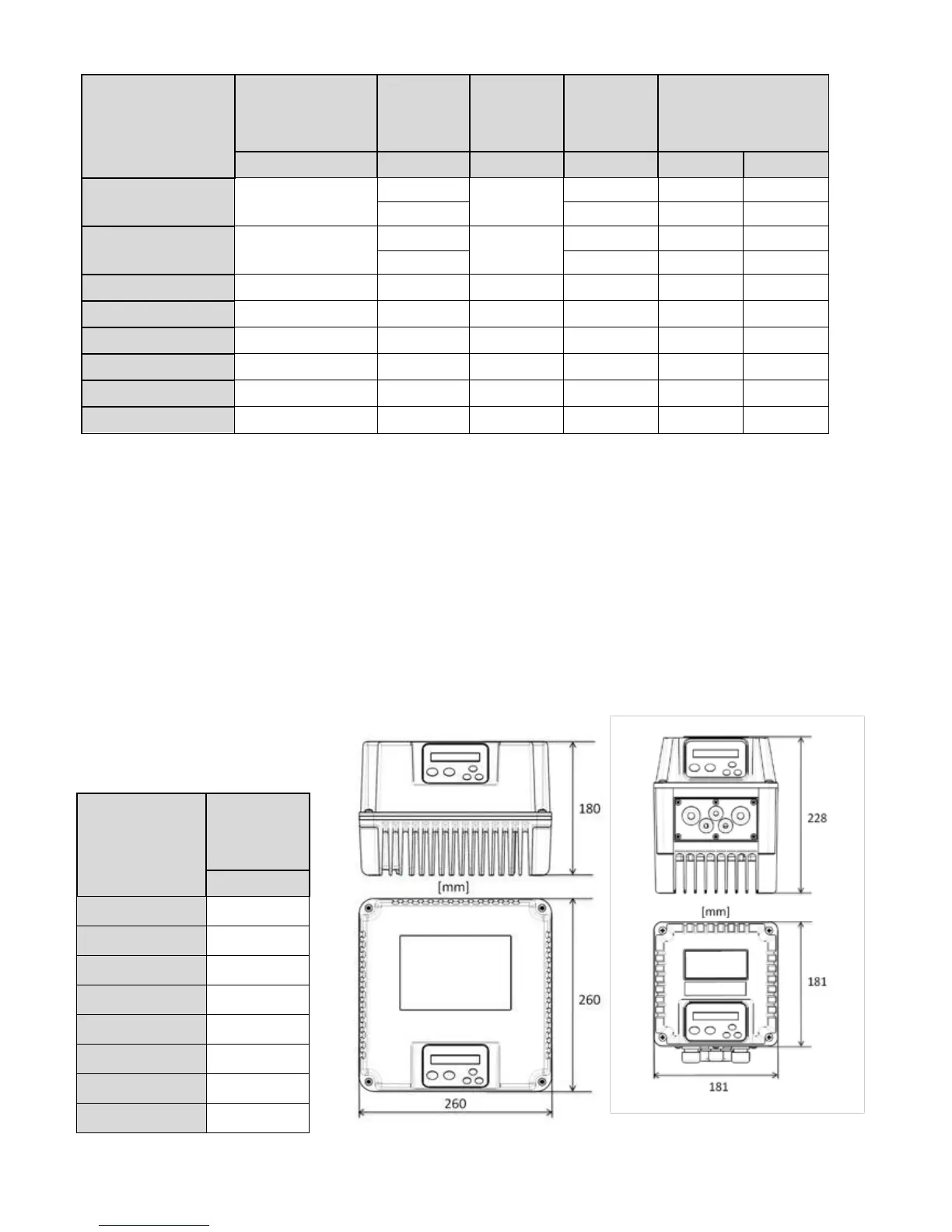

3.1 Weight and dimensions
Model
Weight *
[Kg]
VASCO 209
4
VASCO 214
4,3
VASCO 406
4,4
VASCO 409
4,4
VASCO 414
7
VASCO 418
7
VASCO 425
7
VASCO 430
7,2
* Weight without auxiliary cooling fans and without packing.
