5. VASCO installation
VASCO can be installed directly on the fan cover of the motor or mounted on the wall.

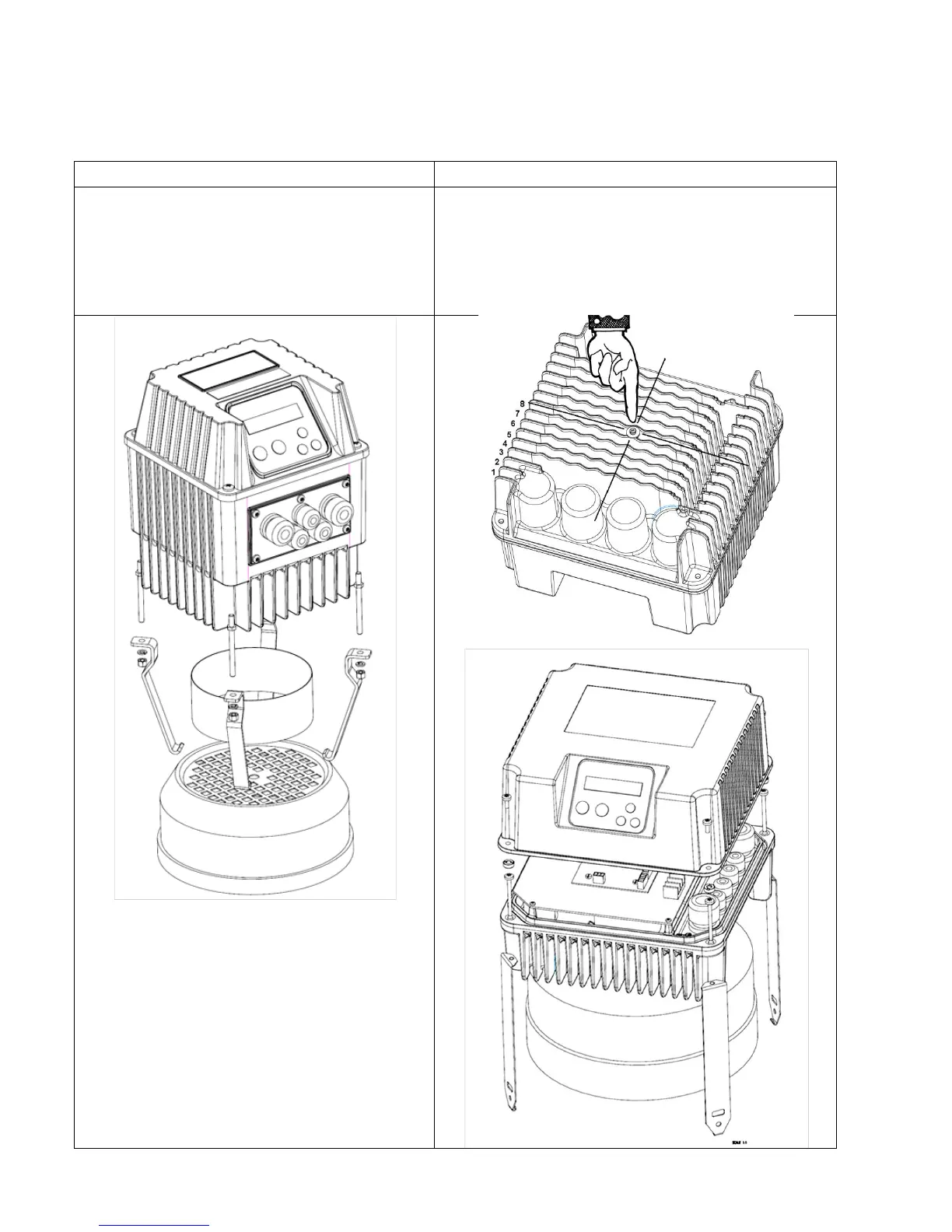

Motor mounting kit
In this application VASCO is cooled by the motor fan. Motor kit (available upon request) allows a solid coupling of the two
units and it is composed of:
VASCO 209,214,406,409
VASCO 414,418,425,430
 n.°4 rods
 n.°4 M5 nuts
 n.° 4 hooks
 n.° 1 cooling ring
 n.° 4 M5 screws.
 n.° 4 clamps
 n.° 4 clips to add if necessary
 n.°1 centre pin
Use the cooling ring for best cooling of VASCO during
operation. Warning: when using the cooling ring, the
cooling air of the motor is slightly warmer than without
the VASCO; if the resulting motor temperature exceeds
the indicated maximum allowable value, remove the
cooling ring, leaving the VASCO to be cooled by itself.
