1-38 | ni.com
Chapter 1 Getting Started with the cDAQ Controller
NI-XNET CAN/LIN Connector
(NI cDAQ-9134/9135) The NI cDAQ-9134/9135 controller features an NI-XNET
hardware-selectable interface port that supports CAN and LIN transceiver cables.
Users have the flexibility to choose the physical bus protocol by plugging in corresponding
external transceiver cables. The NI-XNET connector supports hot-swapping of transceiver
cables and can detect and identify external transceiver cable types. For information about
connecting to a CAN or LIN bus, refer to your NI-XNET transceiver cable operating
instructions.
Caution To maintain product performance and accuracy specifications when using
the NI-XNET CAN/LIN port and NI transceiver cable(s), do not attach or mount the
transceiver overmold directly to the cDAQ controller. Mount the overmolded section
of the transceiver cable at least 50.8 mm (2.00 in.) away from the cDAQ controller.
By following the cooling outline requirements shown in Figures 1-10 and 1-11, the
NI transceiver cable will not affect the thermal performance of the system.
Caution Do not hot-swap NI-XNET devices while the cDAQ controller is in a
hazardous location or connected to high voltages. If the cDAQ controller is not in a
7 white/brown white/brown white/brown
8 brown brown brown

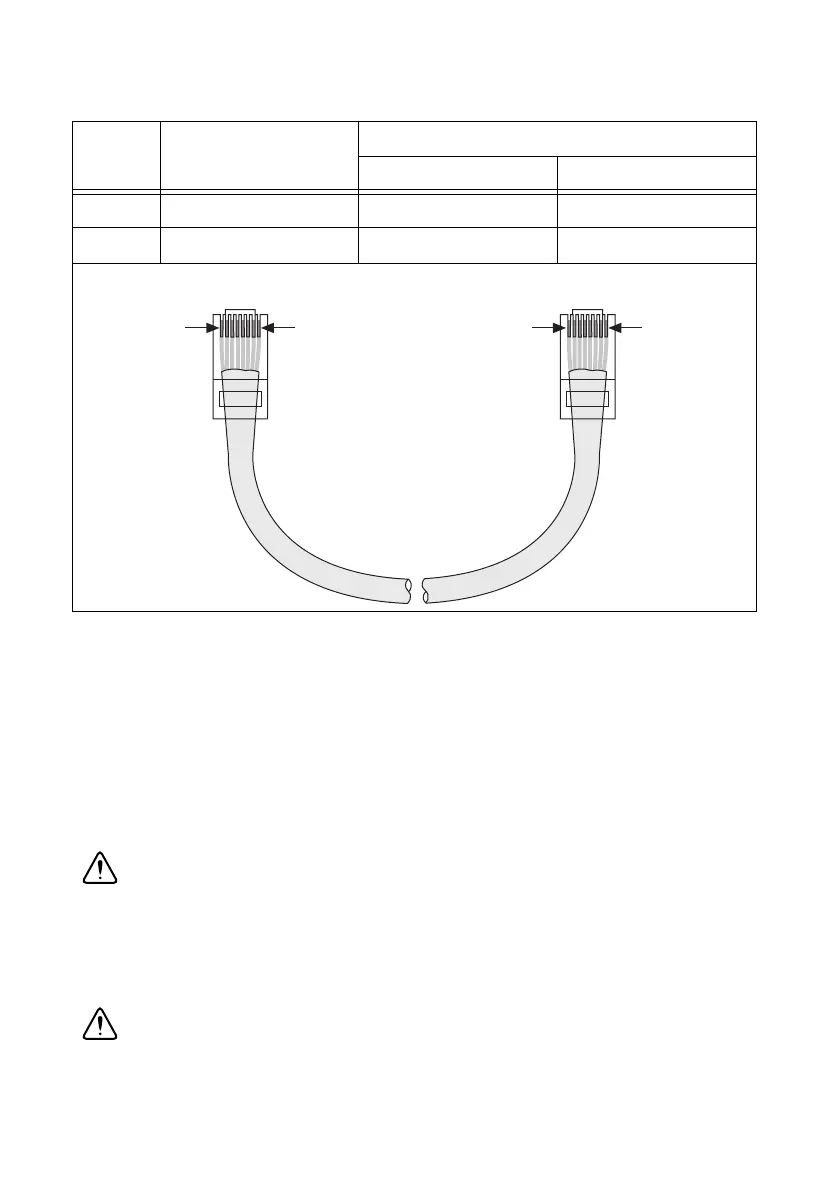

Table 1-8. Ethernet Cable Wiring Connections (Continued)
Pin Connector 1
Connector 2
Straight Through Crossover
Connector 1 Connector 2
Pin 1
Pin 1 Pin 8Pin 8
