© National Instruments | 1-3
NI cDAQ-9132/9133/9134/9135/9136/9137 User Manual

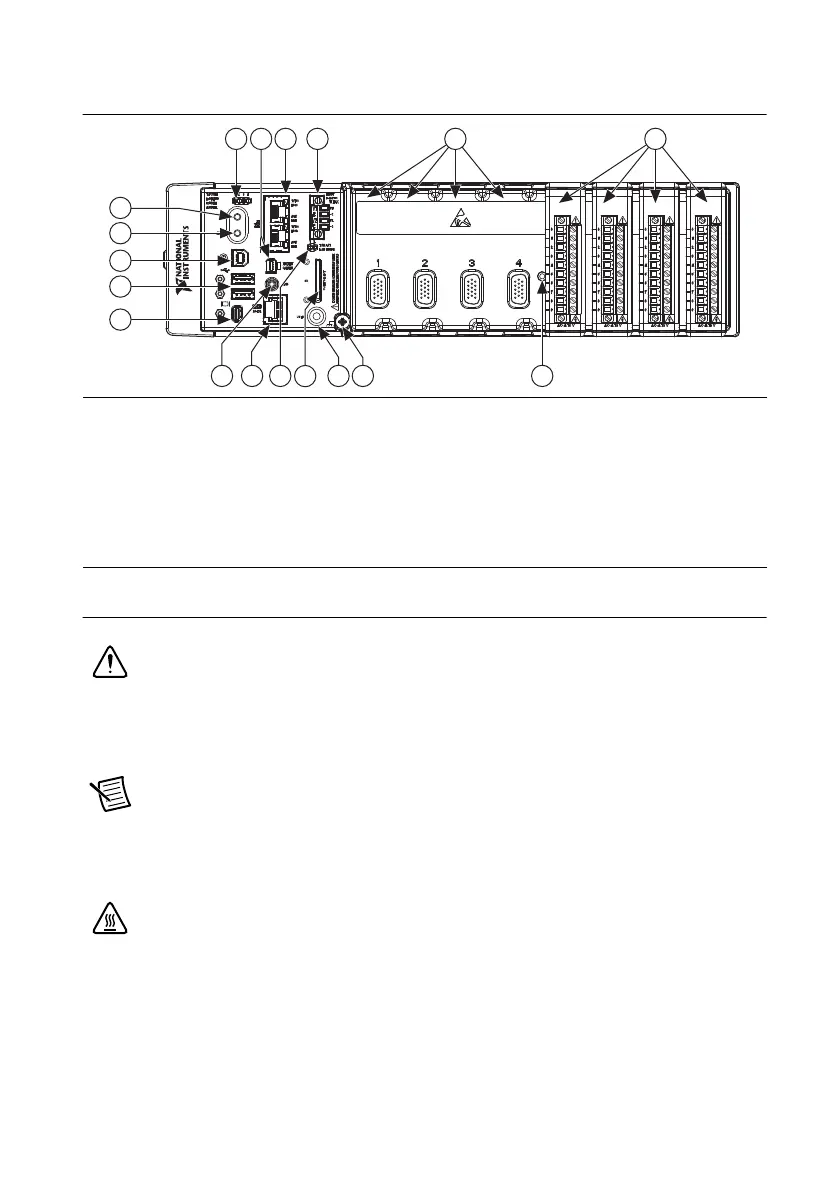

Figure 1-2. NI cDAQ-9133/9135/9137 Controller
Safety Guidelines
Caution Do not operate the NI cDAQ-9132/9133/9134/9135/9136/9137 controller
in a manner not specified in these operating instructions. Product misuse can result
in a hazard. You can compromise the safety protection built into the product if the
product is damaged in any way. If the product is damaged, return it to National
Instruments for repair.
Note Because some C Series modules may have more stringent certification
standards than the NI cDAQ-9132/9133/9134/9135/9136/9137 controller, the
combined system may be limited by individual component restrictions. Refer to the
specifications document for your cDAQ controller for more details.
Hot Surface This icon denotes that the component may be hot. Touching this
component may result in bodily injury.
1 POWER, STATUS, USER1, and USER2 LEDs
2 NI-XNET CAN/LIN Connector (cDAQ-9135 Only)
3 RJ-45 Ethernet Ports 1 and 2,
ACT/LINK and 10/100/1000 Ethernet LEDs
4 Power Connector
5 Module Slots
6 Installed C Series I/O Modules
7 CMOS Reset Button
8 Chassis Grounding Screw
9 USER1 Button
10 SD Card Removable Storage and SD Card Slot
Cover Mounting Holes
11 SD ACT and SD IN USE LEDs
12 RS-232 Serial Port
13 PFI 0 SMB Connector
14 Mini DisplayPort Connector
15 USB Host Ports and USB Retention Standoffs
16 USB Device Port and USB Retention Bracket
17 RESET Button
18 Power Button
NI 9263 NI 9263 NI 9263 NI 9263
54321 6
7891213
14
15
NI cDAQ-9135
NI CompactDAQ
16
17
18
10
11
