5. Insert your PXI card into the selected 5 V slot. Use the injector/ejector handle to fully inject
the device into place. Figure 5 shows how to install your PXI card into a PXI or
CompactPCI chassis.

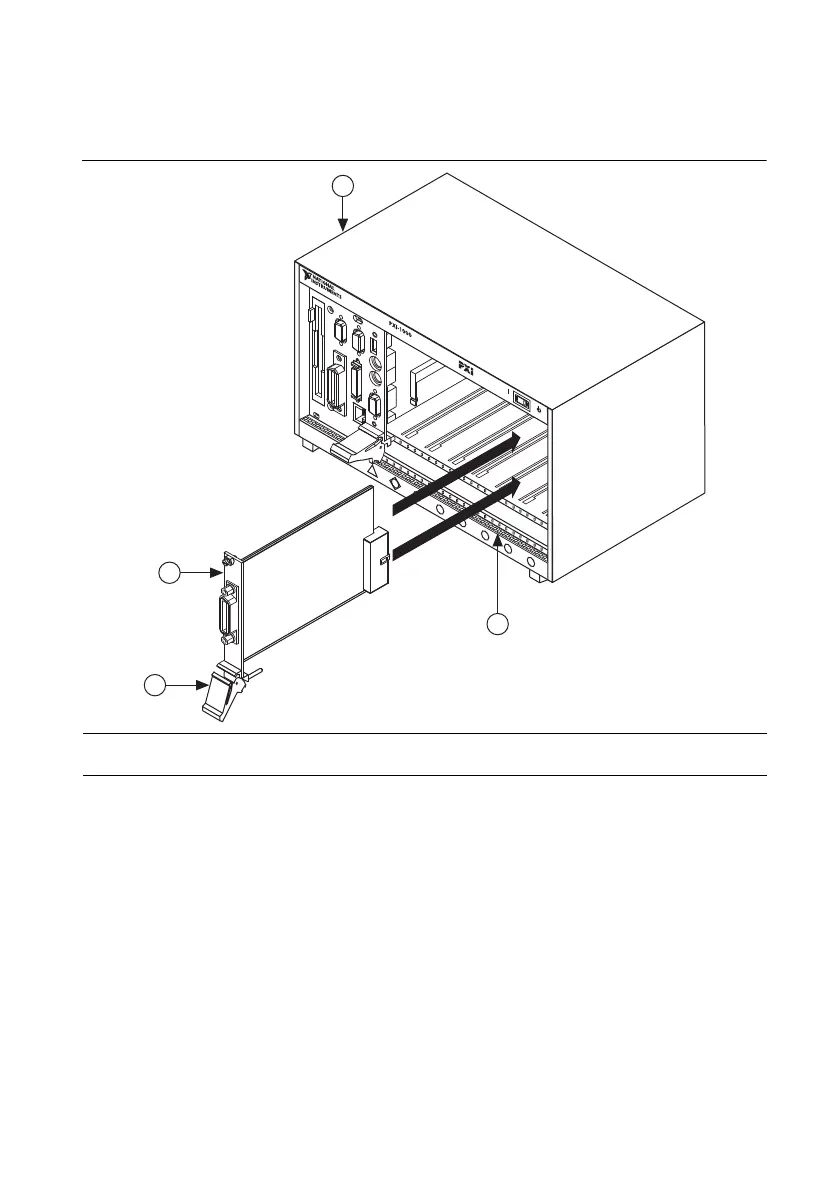

Figure 5. Installing Your PXI Card
6. Screw the front panel of the PXI card to the front panel mounting rail of the PXI or
CompactPCI chassis.
7. Power on your PXI or CompactPCI chassis.
The PXI card installation is now complete.
1 Injector/Ejector Handle (In Down Position)
2 Your PXI Card
3 PXI Chassis
4 Injector/Ejector Rail
8
7
6
5
4
3
2
1
ON STANDBY
1
2
3
4

National Instruments GPIB-ENET-1000 Specifications

General

Brand	National Instruments
Model	GPIB-ENET-1000
Category	Computer Hardware
Language	English
