NI USB-6008/6009 User Guide and Specifications 24 ni.com

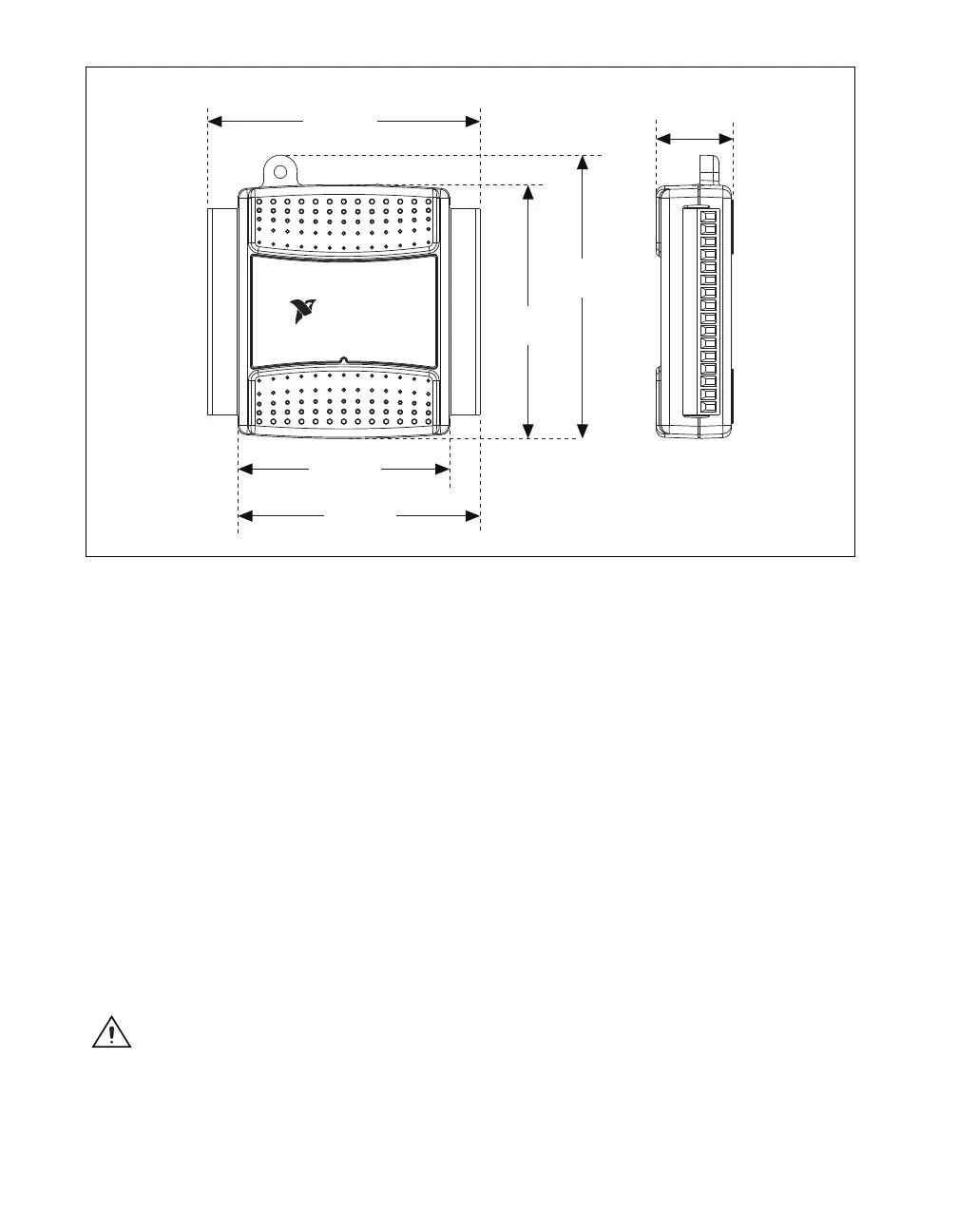

Figure 16. NI USB-6008/6009 Dimensions
Weight
Without connectors ........................................54 g (1.9 oz)
With connectors .............................................84 g (3 oz)
I/O connectors........................................................USB series B receptacle,
(2) 16 position screw terminal plugs
Screw-terminal wiring ...................................16 to 28 AWG
Torque for screw terminals ............................0.22–0.25 N · m (2.0– 2.2 lb · in.)
If you need to clean the module, wipe it with a dry towel.
Safety Voltages
Connect only voltages that are within these limits.
Channel-to-GND....................................................±30 V max, Measurement Category I
Measurement Category I is for measurements performed on circuits not directly connected to the
electrical distribution system referred to as MAINS voltage. MAINS is a hazardous live electrical supply
system that powers equipment. This category is for measurements of voltages from specially protected
secondary circuits. Such voltage measurements include signal levels, special equipment, limited-energy
parts of equipment, circuits powered by regulated low-voltage sources, and electronics.
Caution Do not use this module for connection to signals or for measurements within Measurement
Categories II, III, or IV.
81.81 mm
(3.221 in.)
76.09 mm
(2.996 in.)
63.50 mm
(2.500 in.)
72.65 mm
(2.860 in.)
85.09 mm
(3.350 in.)
23.19 mm
(0.913 in.)
NATIONAL
INSTRUMENTS
