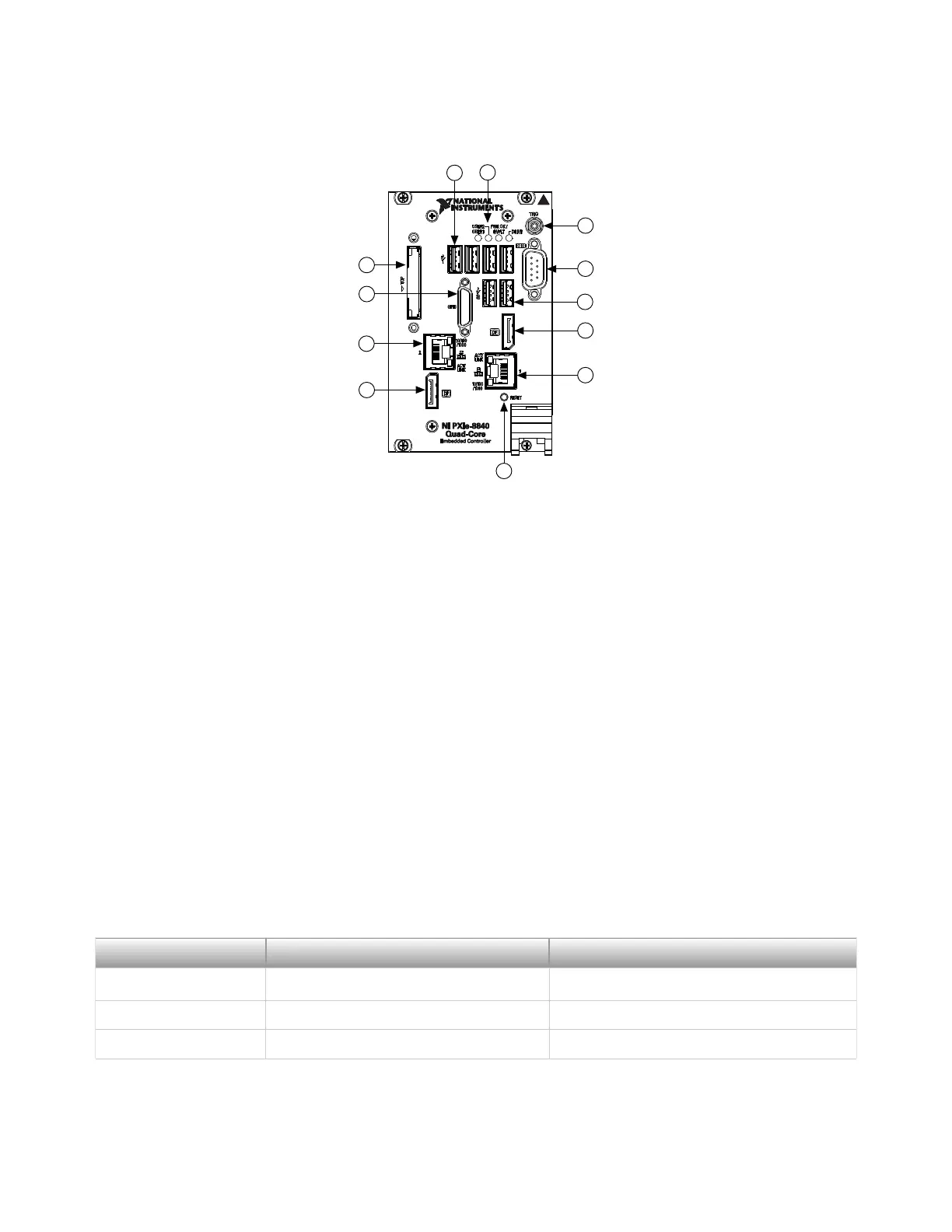

Figure 4. NI PXIe-8840 Quad-Core Front Panel Layout
10
1
7
6
9
2
3
4
5
6
7
8
1.
USB 2.0
2.
LEDs
3.
Trigger
4. COM1
5. USB 3.0
6. DisplayPort
7.
Ethernet
8. Reset Button
9. GPIB
10. ExpressCard/34 (on ExpressCard Variant Only)
Front Panel Connectors
The following table lists various peripherals and their corresponding
NI PXIe-8840 Quad-Core external connectors, bus interfaces, and functions.
Peripheral External Connector Description
Video DisplayPort
Intel
®
HD Graphics controller
Serial COM1 (9-pin DSUB) 16550 RS-232 serial port
Ethernet LAN (RJ45) 10/100/1000 Ethernet connection
© National Instruments
13
PXIe-8840 Quad Core

National Instruments PXIe-8840 Specifications

General

Brand	National Instruments
Model	PXIe-8840
Category	Controller
Language	English
