Chapter 4 Theory of Operation

SCXI-1120/D User Manual 4-6 www.natinst.com

Analog Input Channels

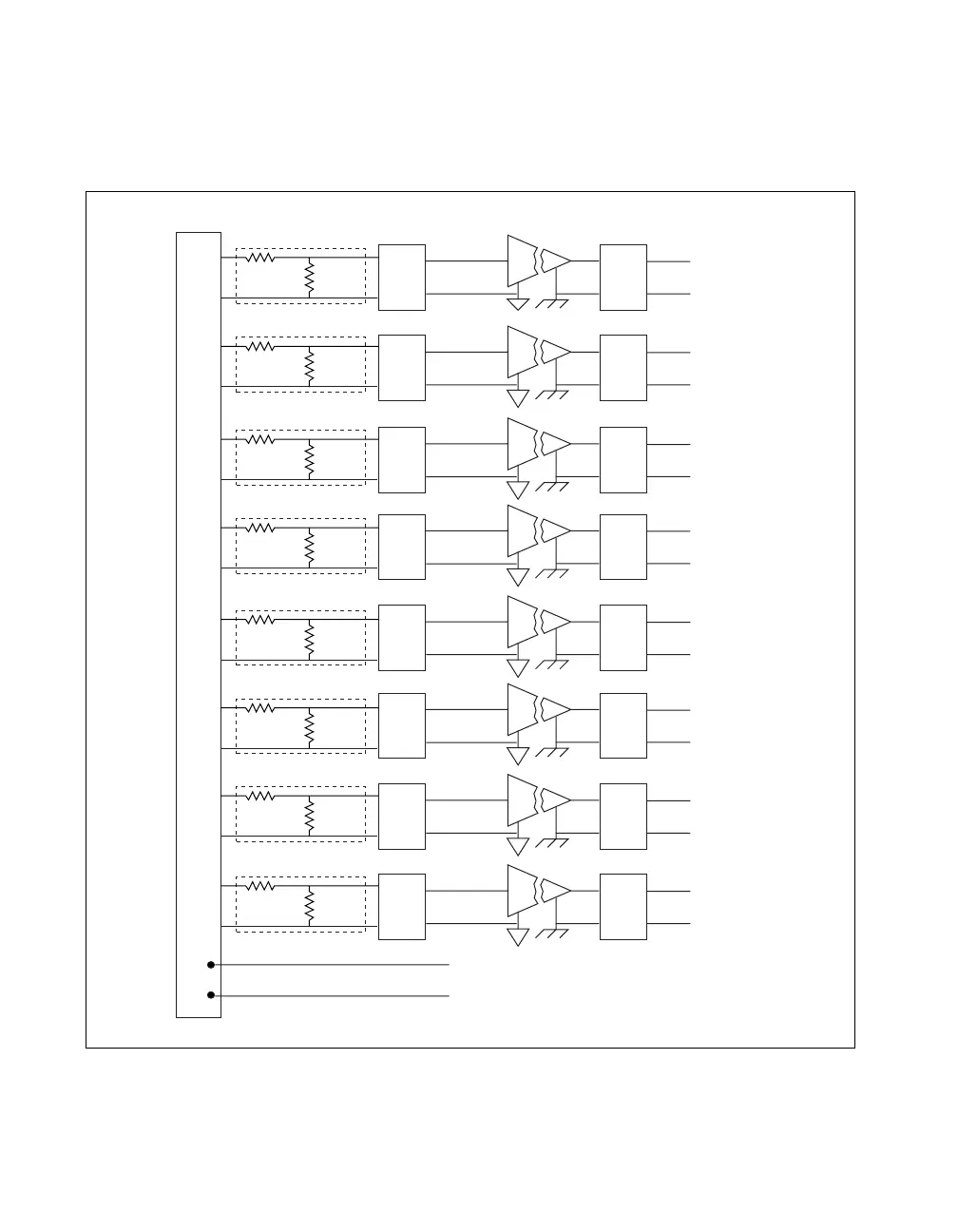

Figure 4-4 shows the analog input block diagram.

Figure 4-4.

Analog Input Block Diagram

LPF

Input Channel 0

Input Channel 1

Input Channel 2

Input Channel 3

Input Channel 4

Input Channel 5

Input Channel 6

Input Channel 7

To Output

Stage

To Output

Stage

To Output

Stage

To Output

Stage

To Output

Stage

To Output

Stage

To Output

Stage

To Output

Stage

Front Connector

MTEMP

DTEMP

SCXI-1120D Only

511 kΩ

SCXI-1120D Only

511 kΩ

SCXI-1120D Only

511 kΩ

SCXI-1120D Only

511 kΩ

SCXI-1120D Only

511 kΩ

SCXI-1120D Only

511 kΩ

SCXI-1120D Only

511 kΩ

SCXI-1120D Only

511 kΩ
