42 | ni.com | NI VirtualBench Calibration Procedure
24. (VB-8034/8054) Remove the connections from channel 3. Connect VirtualBench channel
4 to the oscilloscope calibrator active head, as shown in Figure 22.

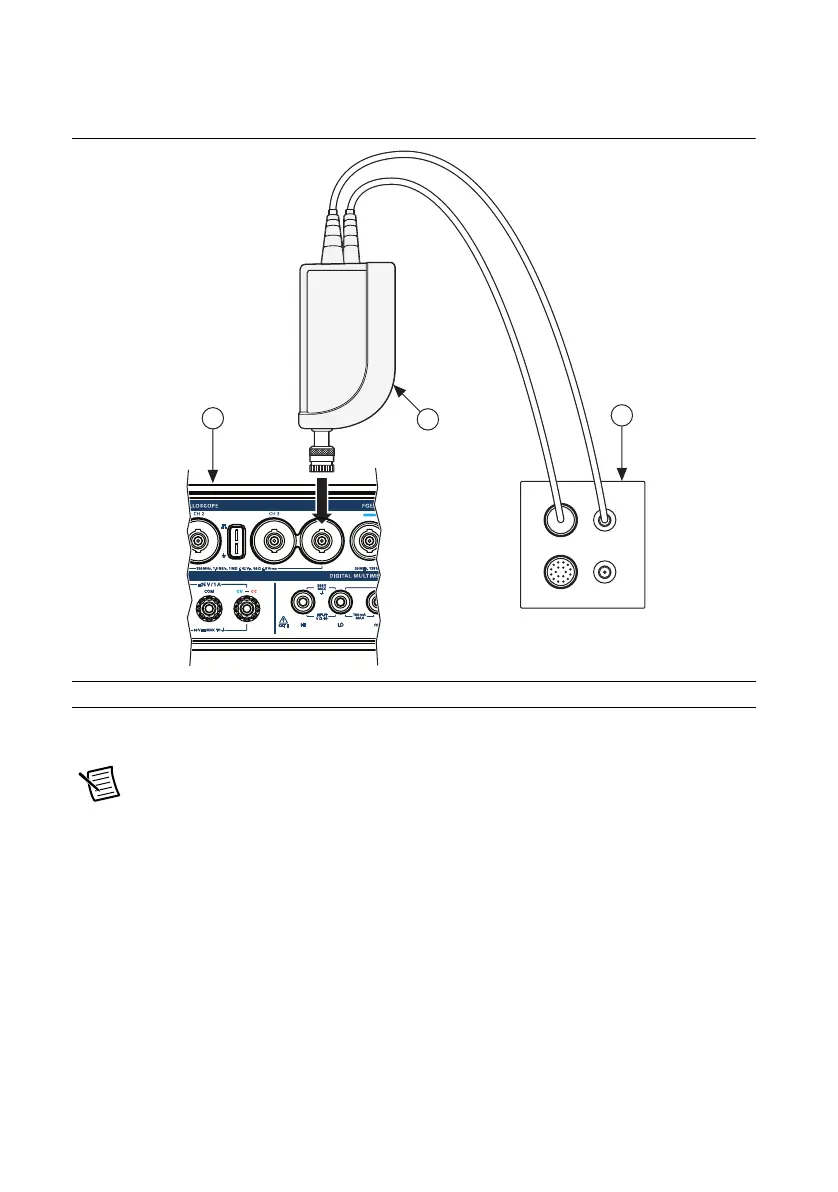

Figure 22. VB-8034/8054 Oscilloscope Gain Channel 4 Connection Diagram
25. (VB-8034/8054) Repeat steps 2 to 18 for all ranges on channel 4.
Note (VB-8034/8054) When calling MSO Configure Analog Channel in
step 4, change the Channel input to
mso/4.
26.
(VB-8034/8054) Remove the connections from channel 4.
1 VirtualBench Oscilloscope 2 Oscilloscope Calibrator 3 Oscilloscope Calibrator Active Head
