Step 10: Install Adjustable Pulley System
Locate the following for this step:
Parts:
• Assembly from Step 9
Hardware:
• Ref 6, 1/2”x 3 1/4” Button Head Bolt Qty. 1
• Ref 10, 1/2” Locknuts Qty. 1
• Ref 9, 1/2” Washers Qty. 2
Tools:
• Ref 16, 5/16” Allen Wrench
• 3/4” Wrench
Refer to Figure 12:
10-1 Support the Adjustment Assembly with the top-
most side holes between the mounting bracket in
the Top Weldment Triangle.
10-2 Place and loosely tighten the 3 1/4” bolt.

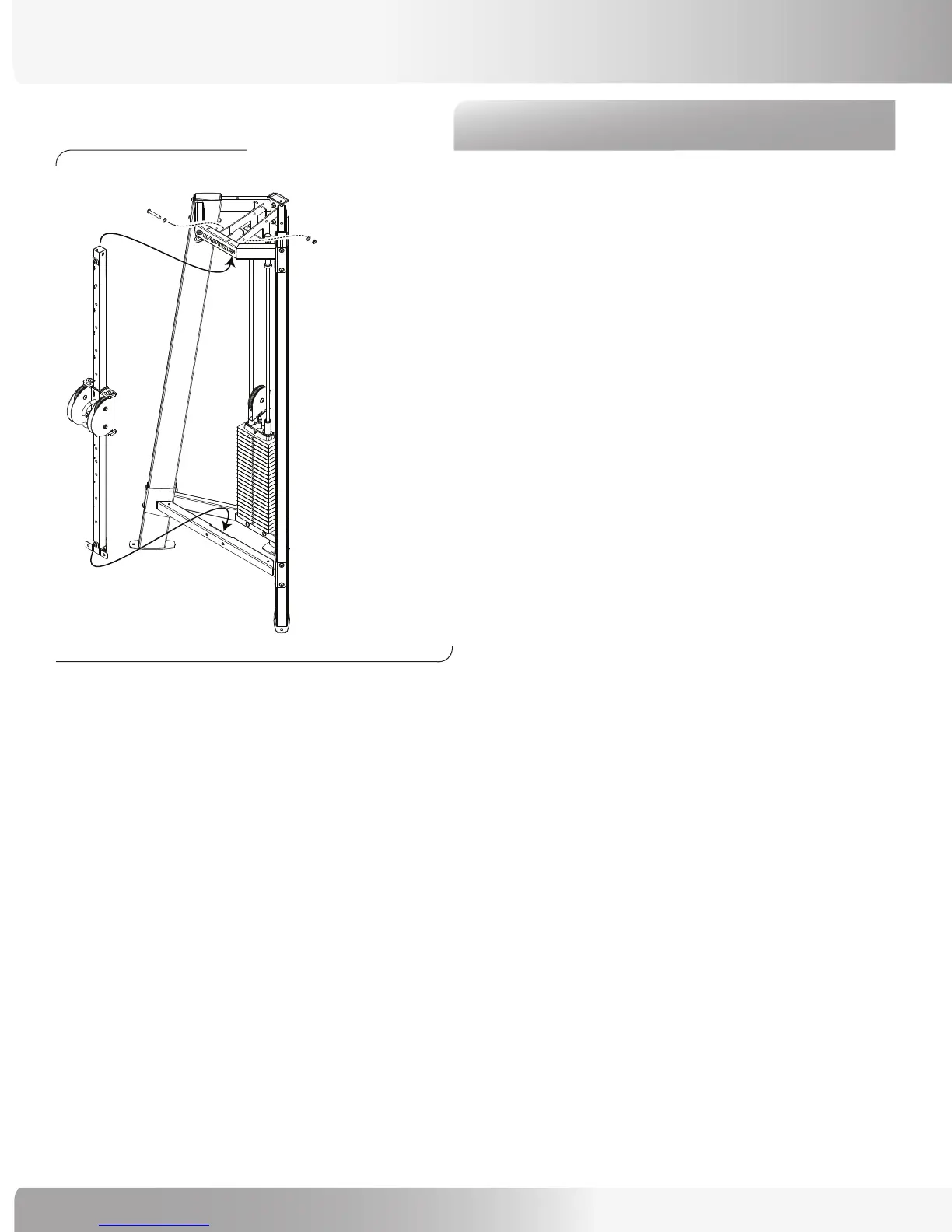

Figure 12:
