Step 12: Install Upper Pulley Assemblies
Locate the following for this step:
Parts:
• Ref 7, 6” Pulley Assembly Qty. 2
• Ref 7, 4 1/2” Pulley Assembly Qty. 1
Hardware:
• Ref 3, 1/2”x 2” Button Head Bolt Qty. 3
• Ref 10, 1/2” Nuts Qty. 3
• Ref 9, 1/2” Washers Qty. 6
Tools:
• Ref 16, 5/16” Allen Wrench
• 3/4” Wrench
Refer to Figures 14 and 15:
12-1 Attach the 6” and 4 1/2” Pulley Assemblies in the
locations shown. Loosely tighten the hardware
until the cable is routed (Figure 14).
Note: Be sure to orient the 6” Pulleys as shown in
Figure 15.
12-2 Securely tighten the hardware.

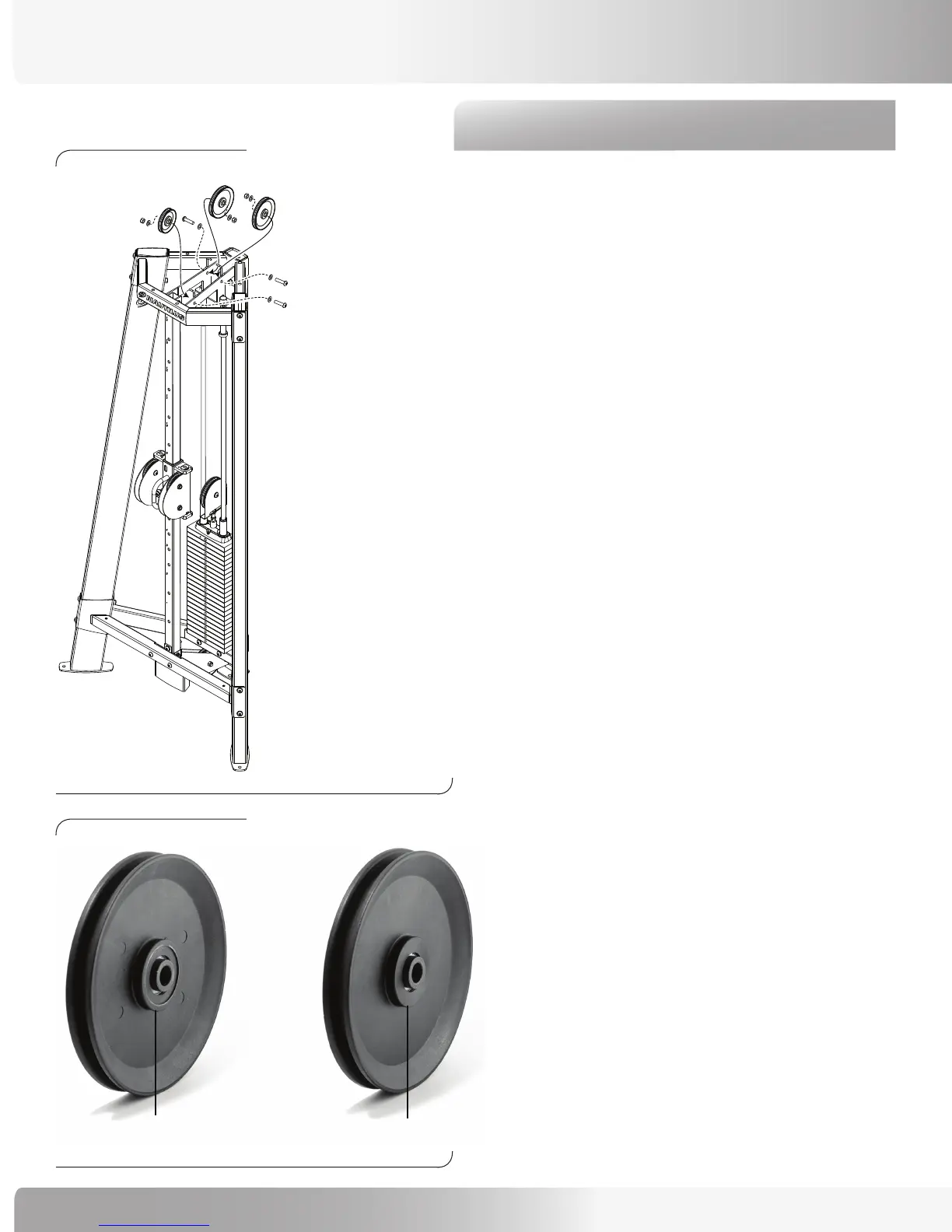

Figure 14:
ASSEMBLY GUIDE
Figure 15:
Side against the frame
Side facing inward
